ZPS Clamping Bracket for Surface Modules
Jergens ZPS Clamping Bracket for Surface Modules are used to fasten our ZPS Surface Mounted Clamping Modules on the machine table.
Features, Benefits, & Product Specifications:
-
Material: Stainless Steel
-
Finish: Black Nitrided
-
Special clamping flanges for various T-slot tables
-
Clamping flange and housing manufactured as a single piece

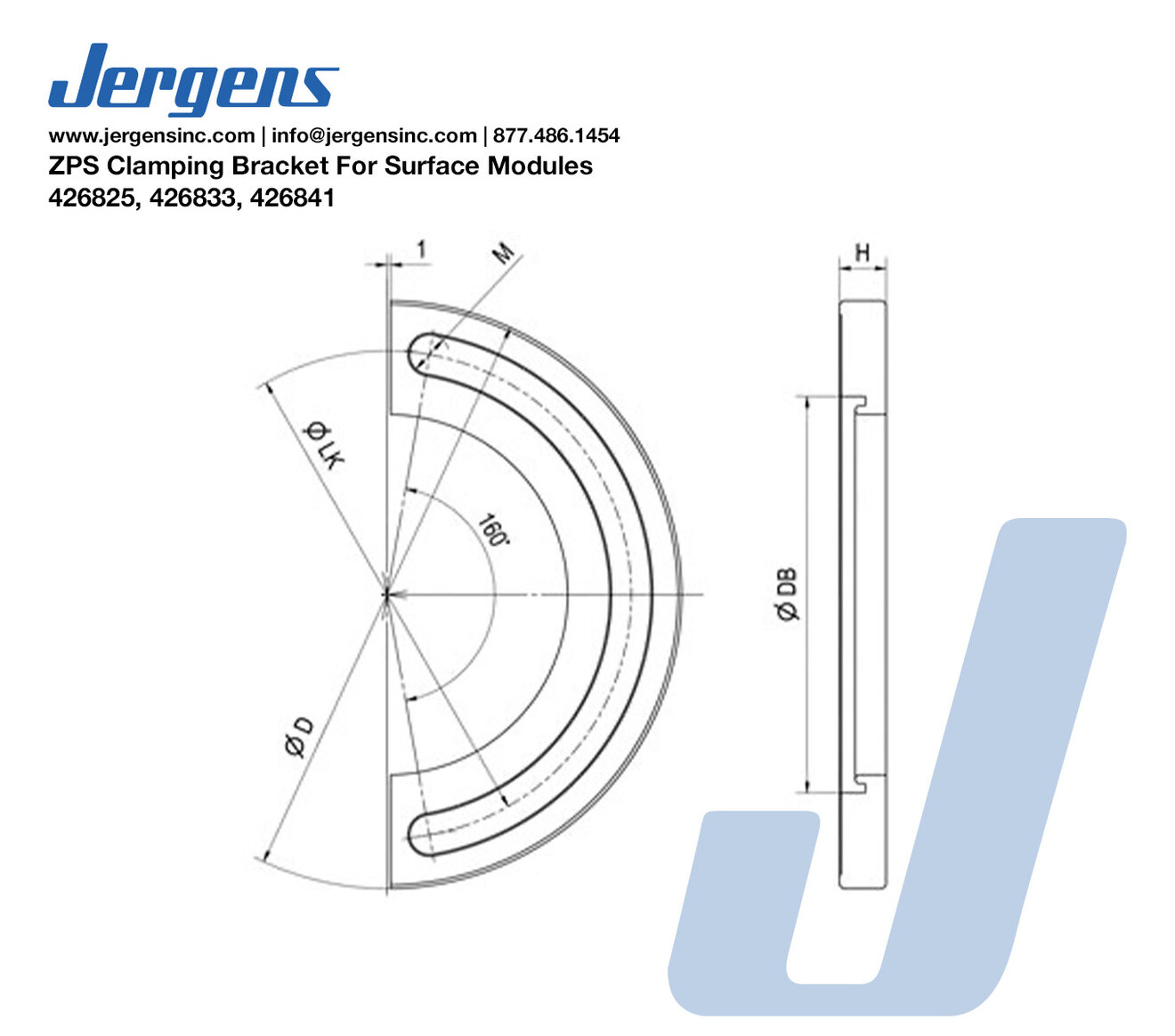

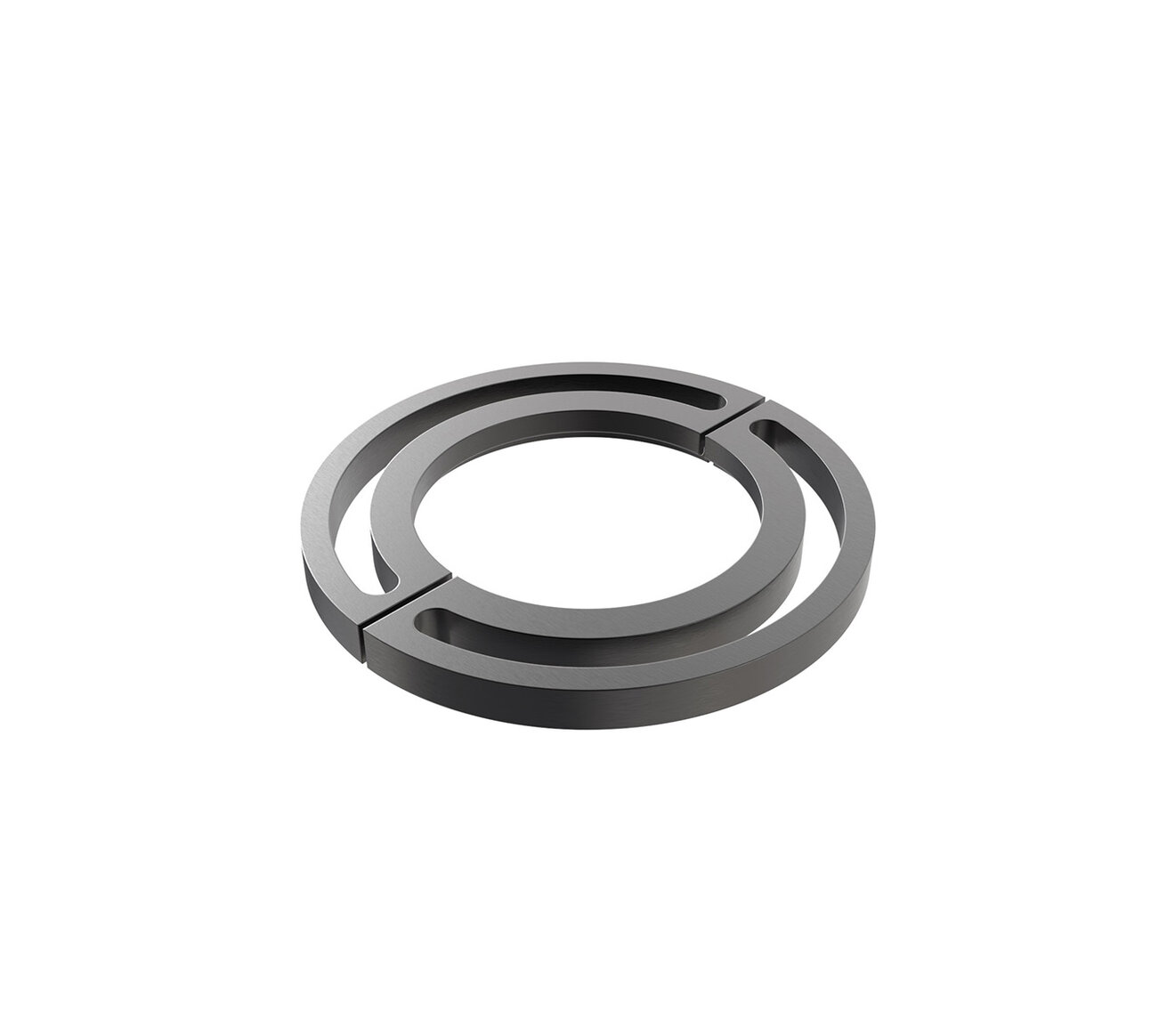

ZPS Clamping Bracket for Surface Modules
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Size | Pieces per Module | D (mm) | DB (mm) | H (mm) | LK (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 426825 |
|
Metric | K10 | 2 | 114 | 77.5 | 7.75 | 94 | 8.5 |
| 426833 |
|
Metric | K20 | 2 | 164 | 110 | 13 | 136 | 11 |
| 426841 |
|
Metric | K40 | 2 | 202 | 146 | 16 | 172 | 13 |
