ZPS 4-Module K20.3 Subplates

Jergens ZPS 4-Module K20.3 Subplates include (4) ZPS K20.3 Low Pressure Pneumatic Clamping Modules installed.
Features, Benefits, & Product Specifications:
  • Subplate Material: Fremax™ 15 Steel or Equivalent
  • Repeatability: <0.005mm (0.0002")
  • Includes porting for blowout function
  • Includes quick connect fittings
  • Custom designs available on request






Documents

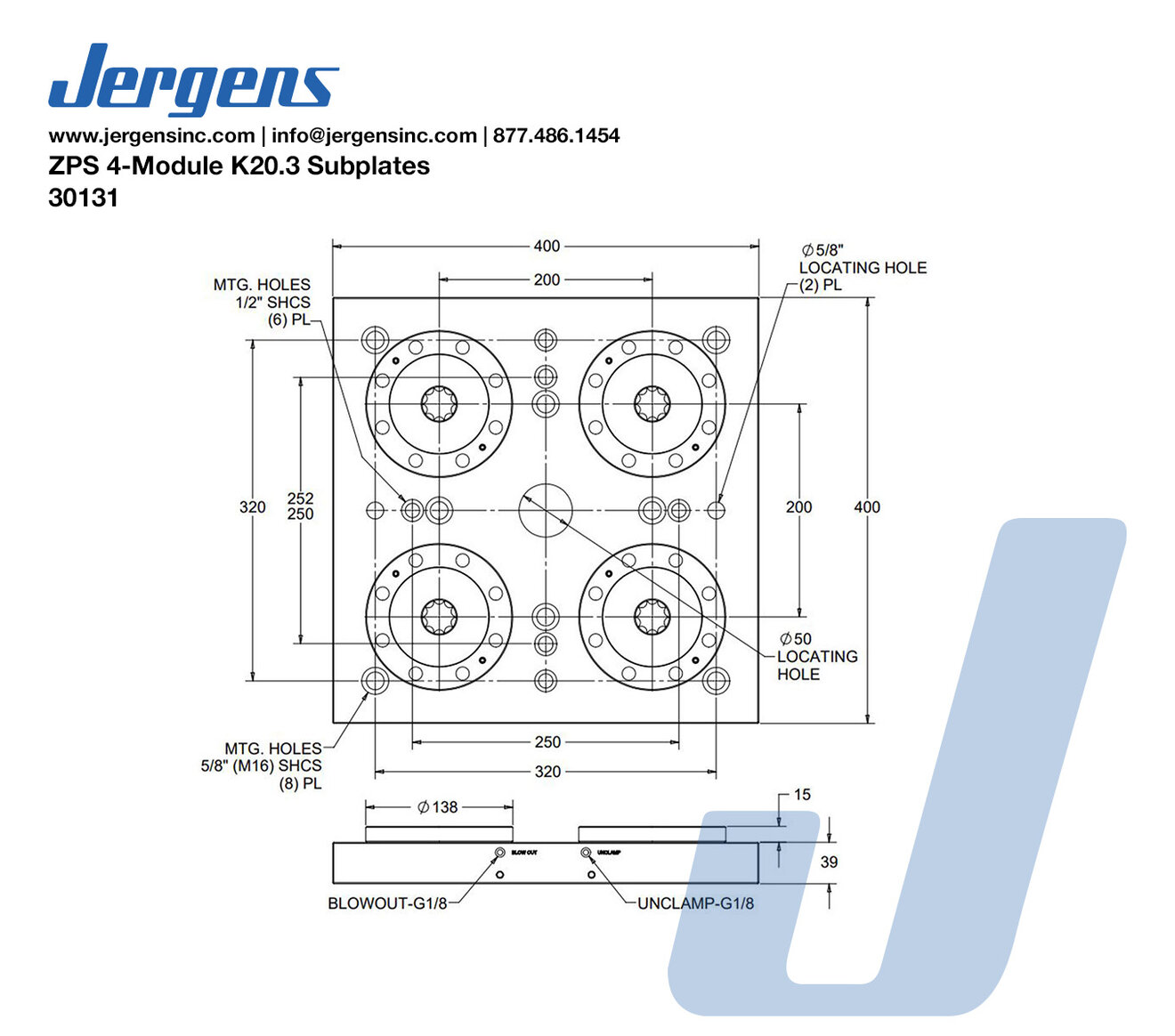

ZPS 4-Module K20.3 Subplates

ZPS 4-Module K20.3 Subplates
  • ZPS 4-Module K20.3 Subplates

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Weight (kg)
30131 icon_cad Metric 48
