Zero Leakage Valves and Accessories
For inline applications, use Zero-Leakage Manual 4-Way Valve (Part No. 61642) mounted on an Inline D03 Subplate (Part No. 61646). This setup is also recommended for use with high-volume air-powered hydraulic pumps in StayLock applications.
For manifold mounting directly on the pump, D03 Subplate for Shoebox Pump (Part No. 61647) and Zero-Leakage Manual 4-Way Valve (Part No. 61642) is recommended. Because the Jergens Air-Powered Hydraulic Pump provides only the necessary hydraulic pressure to clamp and unclamp the StayLock Clamps, the Zero-Leakage Manual 4-Way Valve is recommended to prevent the unnecessary running of the pump, thus minimizing pump maintenance and wear out.
Documents
Zero Leakage Valves and Accessories
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Description | Features |
|---|---|---|---|---|

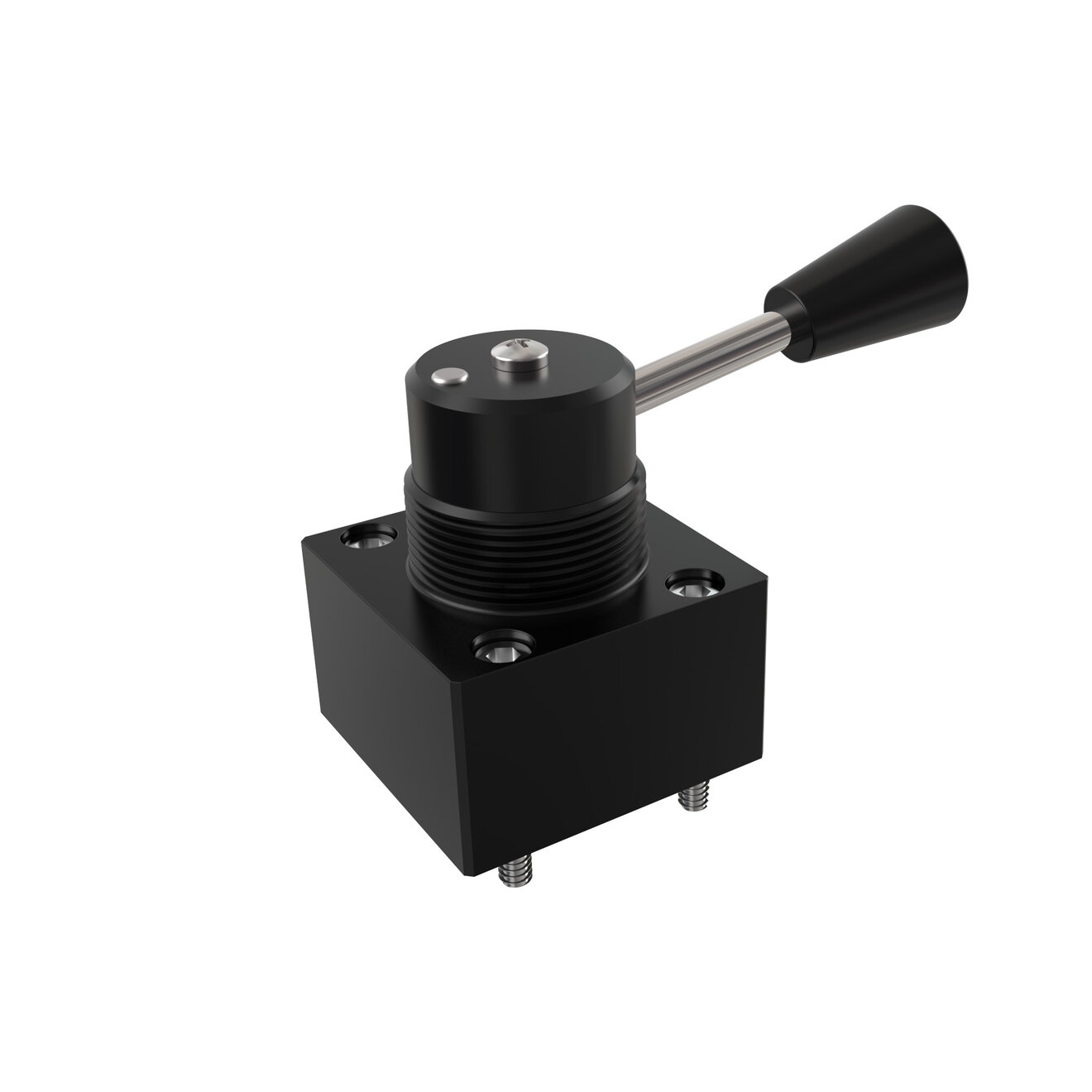

| 61642 |
|
Inch | Zero-Leakage Valve | D03 Mounting; Max. Pressure: 6000 psi; Rotary Style Hand Lever |
| 61646 |
|
Inch | Subplate | Thread: 3/4" SAE (4 Places); 3.31x3.31", Mounting 2.83x2.83" 7/32 Diameter for #10 bolts |
| 61647 |
|
Inch | Inline Plate | Port A & B: 9/16-18; Gauge Port 1/4 NPT |
