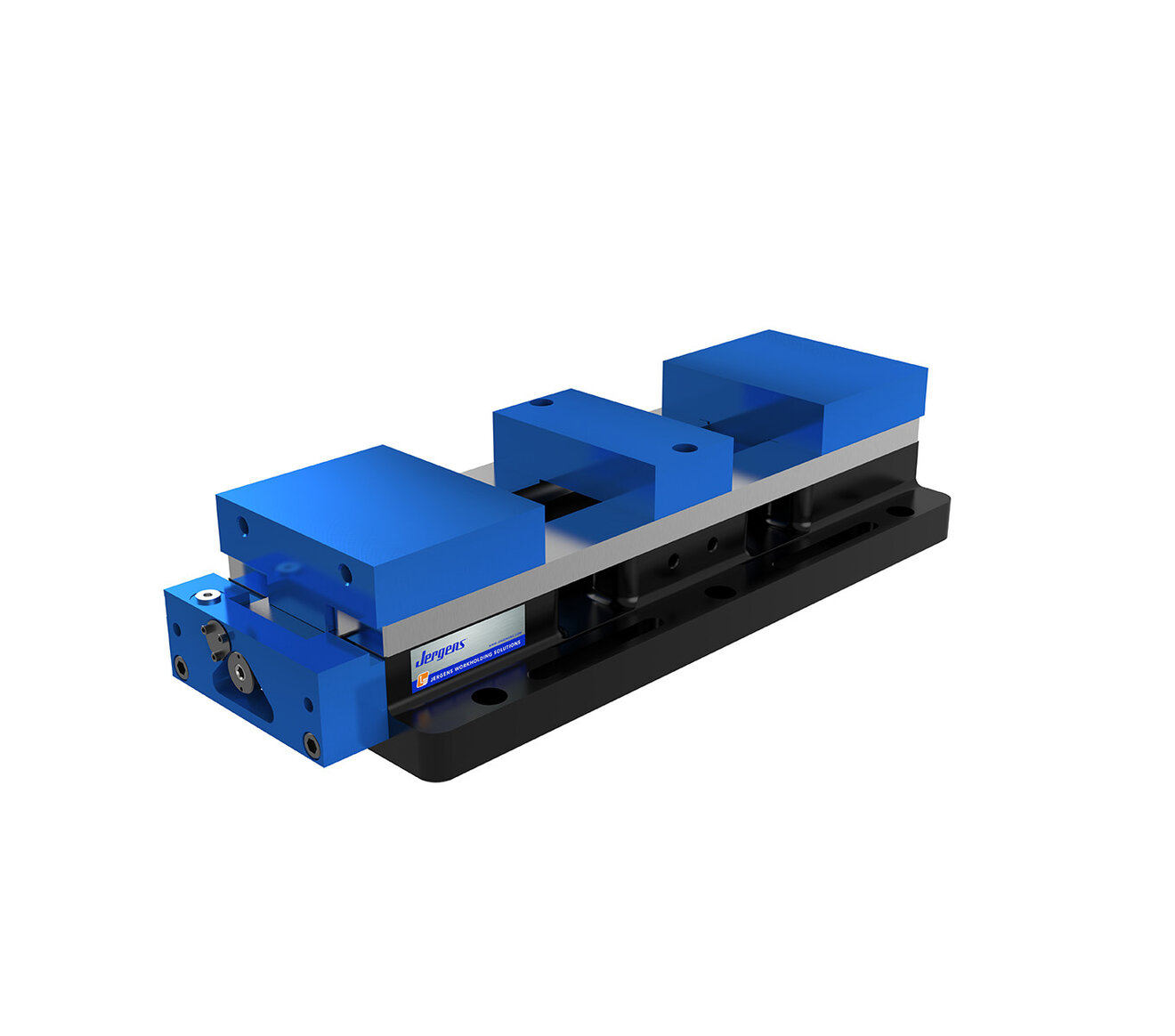

Universal 6" (150 mm) Hydraulic Production Vises
Jergens Universal Hydraulic Production Vises are easy to mount directly to machine tables. Their slotted mounting holes fit most machines.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Compact lightweight design for easy setup
-
Internal hydraulics
-
4,700 lbs (2,100 kgs) of clamping force
-
Operates on lower input pressure
-
Supplied with fully machineable & reversible aluminum soft jaws
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Openings allow chips to flow out of the vise base
Universal 6" (150 mm) Hydraulic Production Vises

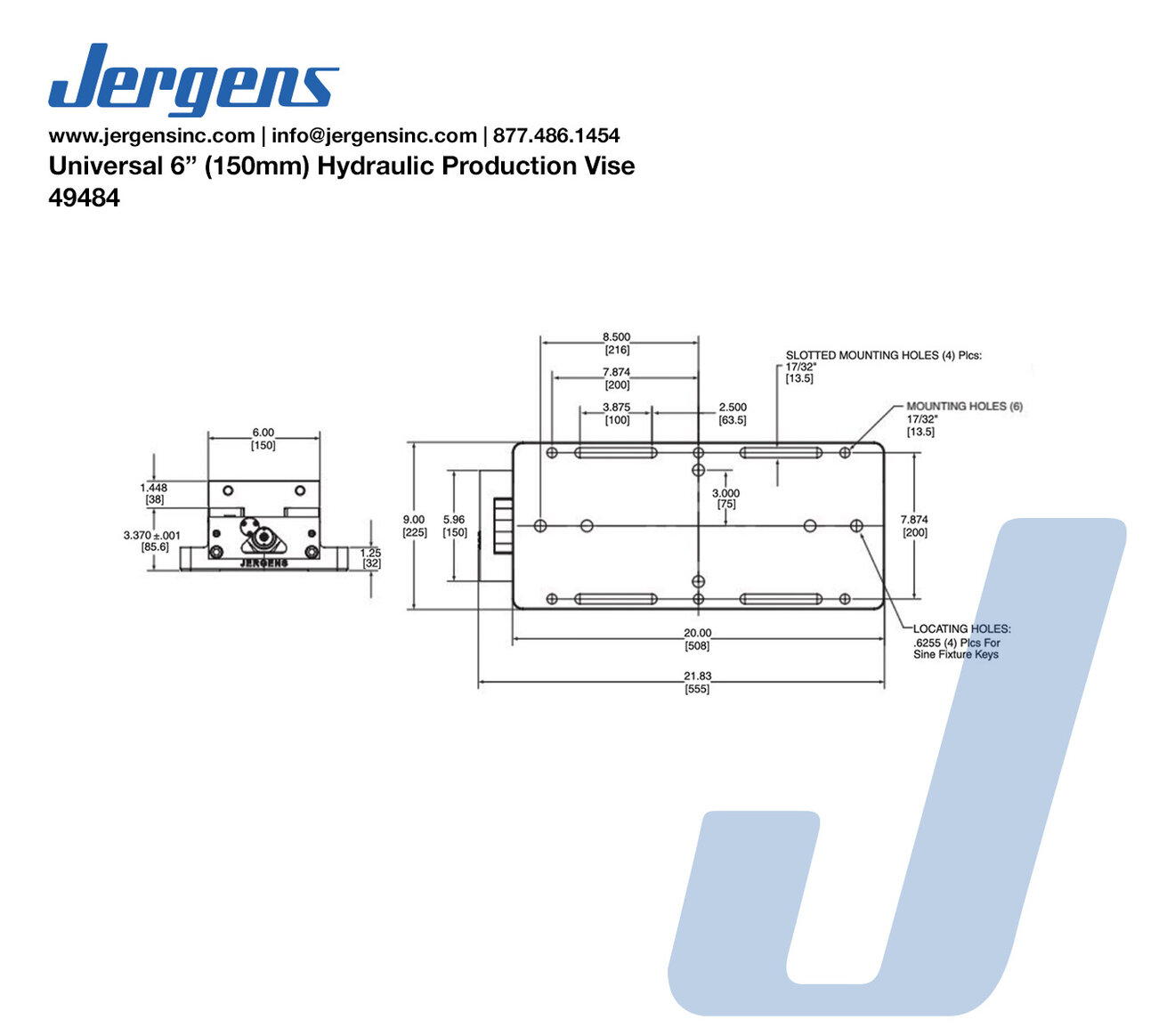

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Base Type | Weight (lbs) |
---|---|---|---|---|
49484 | Inch | Universal Base | 65 |
