T-Slot Nuts

Jergens T-Slot Nuts provides a safety-stop feature to prevent turning studs into tableways.
Features, Benefits, & Product Specifications:
  • Material: Available in C-1018 Low Carbon Steel and 303 Stainless Steel
  • Finish: Black Oxide (for Low Carbon Steel T-Slot Nuts)
  • Threads: 2B-UNC (Inch); Class 6h (Metric)
  • Heat Treat: Case Hardened (for Low Carbon Steel T-Slot Nuts)
Note(s):
Part No.'s 43302, 43303, 43305, 43308, 43311, & 43313 are not hardened.


Documents

T-Slot Nuts

T-Slot Nuts
  • T-Slot Nuts

Select a part number for CAD drawings, price and stock availability.

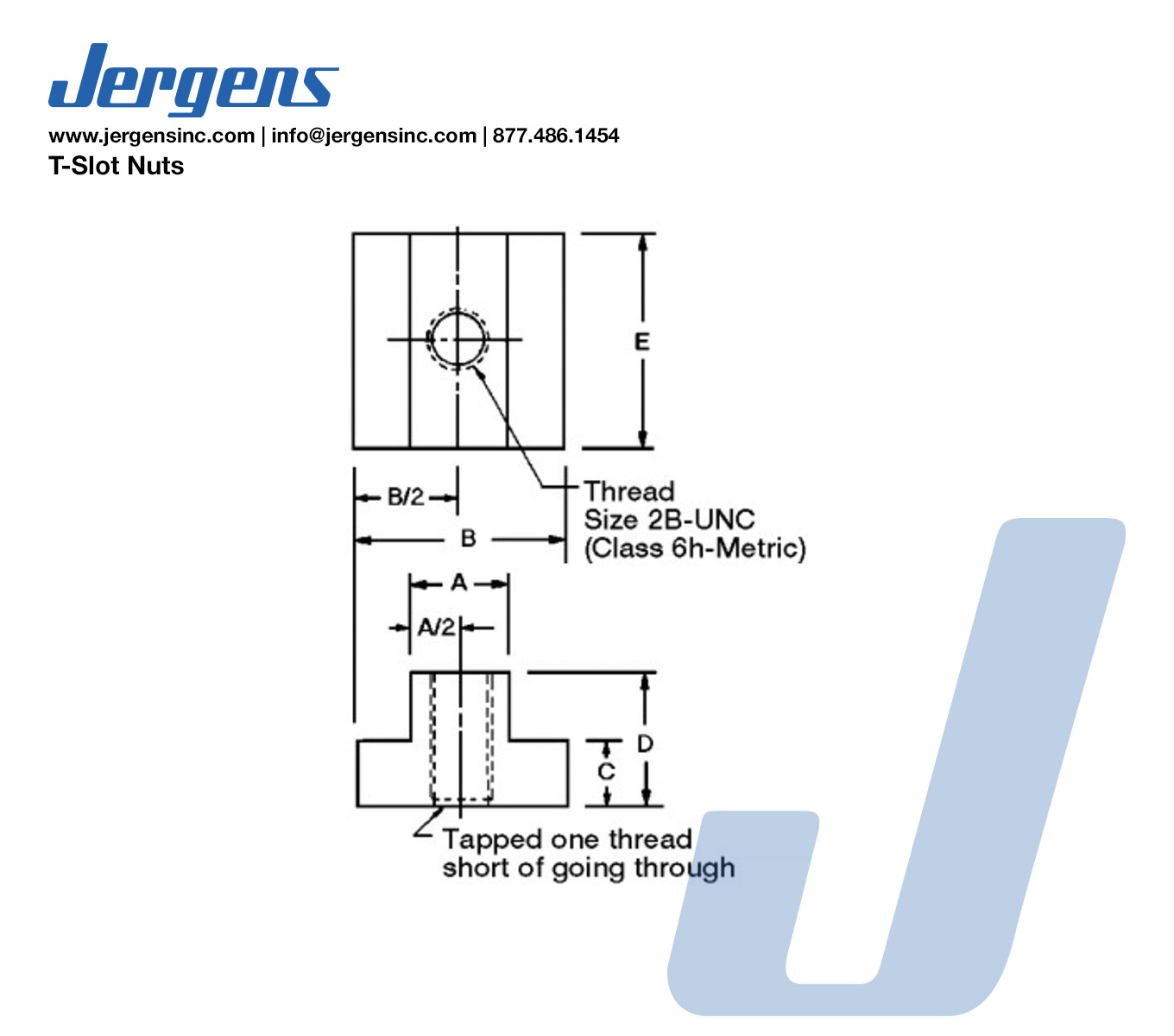

Part Number CAD Unit Material Thread T-Slot Width A (in) B (In) C (In) D (in) E (in) Weight (lbs)
43301 icon_cad Inch Steel 3/8-16 9/16 7/8 1/4 1/2 7/8 0.07
43302 icon_cad Inch Steel 3/8-16 7/16 11/16 7/32 1/2 7/8 0.05
43303 icon_cad Inch Steel 3/8-16 1/2 7/8 9/32 1/2 7/8 0.07
43304 icon_cad Inch Steel 1/2-13 11/16 1 1/8 7/16 3/4 1 1/4 0.21
43305 icon_cad Inch Steel 1/2-13 9/16 7/8 11/32 5/8 1 1/8 0.12
43306 icon_cad Inch Steel 1/2-13 5/8 1 11/32 5/8 1 1/8 0.15
43307 icon_cad Inch Steel 5/8-11 13/16 1 1/4 9/16 1 1 1/2 0.31
43308 icon_cad Inch Steel 5/8-11 11/16 1 1/8 7/16 3/4 1 1/4 0.11
43309 icon_cad Inch Steel 5/8-11 3/4 1 1/4 15/32 3/4 1 1/4 0.16
43310 icon_cad Inch Steel 3/4-10 1 1/16 1 5/8 11/16 1 1/4 2 0.72
43311 icon_cad Inch Steel 3/4-10 13/16 1 1/4 9/16 1 1 1/2 0.36
43312 icon_cad Inch Steel 3/4-10 7/8 1 1/2 9/16 1 1 1/2 0.41
43313 icon_cad Inch Steel 7/8-9 1 1 5/8 5/8 1 1/4 2 0.73
43314 icon_cad Inch Steel 7/8-9 1 1/16 1 3/4 5/8 1 1/4 2 0.80
43402 icon_cad Inch Stainless Steel 3/8-16 7/16 3/4 7/32 1/2 1 0.07
43403 icon_cad Inch Stainless Steel 3/8-16 1/2 7/8 1/4 5/8 7/8 0.08
43405 icon_cad Inch Stainless Steel 1/2-13 9/16 7/8 5/16 3/4 1 1/4 0.15
43406 icon_cad Inch Stainless Steel 1/2-13 5/8 1 3/8 3/4 1 1/4 0.18
43408 icon_cad Inch Stainless Steel 5/8-11 11/16 1 1/4 15/32 1 1 1/2 0.34
43409 icon_cad Inch Stainless Steel 5/8-11 3/4 1 1/4 17/32 1 1/4 1 1/2 0.38
43410 icon_cad Inch Stainless Steel 3/4-10 1 1/16 1 5/8 9/16 1 1 3/4 0.56
43411 icon_cad Inch Stainless Steel 3/4-10 13/16 1 1/2 9/16 1 1 3/4 0.48
Part Number CAD Unit Material Thread T-Slot Width A (mm) B (mm) C (mm) D (mm) E (mm) Weight (kg)
43372 icon_cad Metric Steel M10 x 1.5 12 19 7 13 25 0.03
43373 icon_cad Metric Steel M10 x 1.5 14 22 9 16 29 0.06
43374 icon_cad Metric Steel M10 x 1.5 16 25 9 16 29 0.06
43375 icon_cad Metric Steel M12 x 1.75 14 22 9 16 29 0.05
43376 icon_cad Metric Steel M12 x 1.75 16 25 9 16 29 0.06
43377 icon_cad Metric Steel M12 x 1.75 18 29 11 19 32 0.13
43378 icon_cad Metric Steel M16 x 2.0 18 29 11 19 32 0.09
43379 icon_cad Metric Steel M16 x 2.0 20 32 14 25 38 0.16
43380 icon_cad Metric Steel M16 x 2.0 22 35 14 25 38 0.19
43381 icon_cad Metric Steel M20 x 2.5 22 35 14 25 38 0.17
43382 icon_cad Metric Steel M20 x 2.5 24 38 16 25 44 0.24
43383 icon_cad Metric Steel M20 x 2.5 28 41 18 29 51 0.28
