Toggle Thumb Screws
Jergens Tru-Center™ Toggle Thumb Screws are the same as our standard Thumb Screw only with the addition of our patented swivel pad on the end. Screws may be inserted without removing pads.
Our patented Tru-Center™ products are the only pad type on the market to provide true center-line clamping. The center line of the pad and the center line of the nut always intersect at the point of contact between the pad and the workpiece.
Features, Benefits, & Product Specifications:
-
Stem Material & Finish: 1215 Steel, Black Oxide
-
Head Material & Finish: 1215 Steel, Black Oxide
-
Pad Material & Finish: 4140 Steel, Black Oxide
-
Thread: 2A-UNC
Toggle Thumb Screws

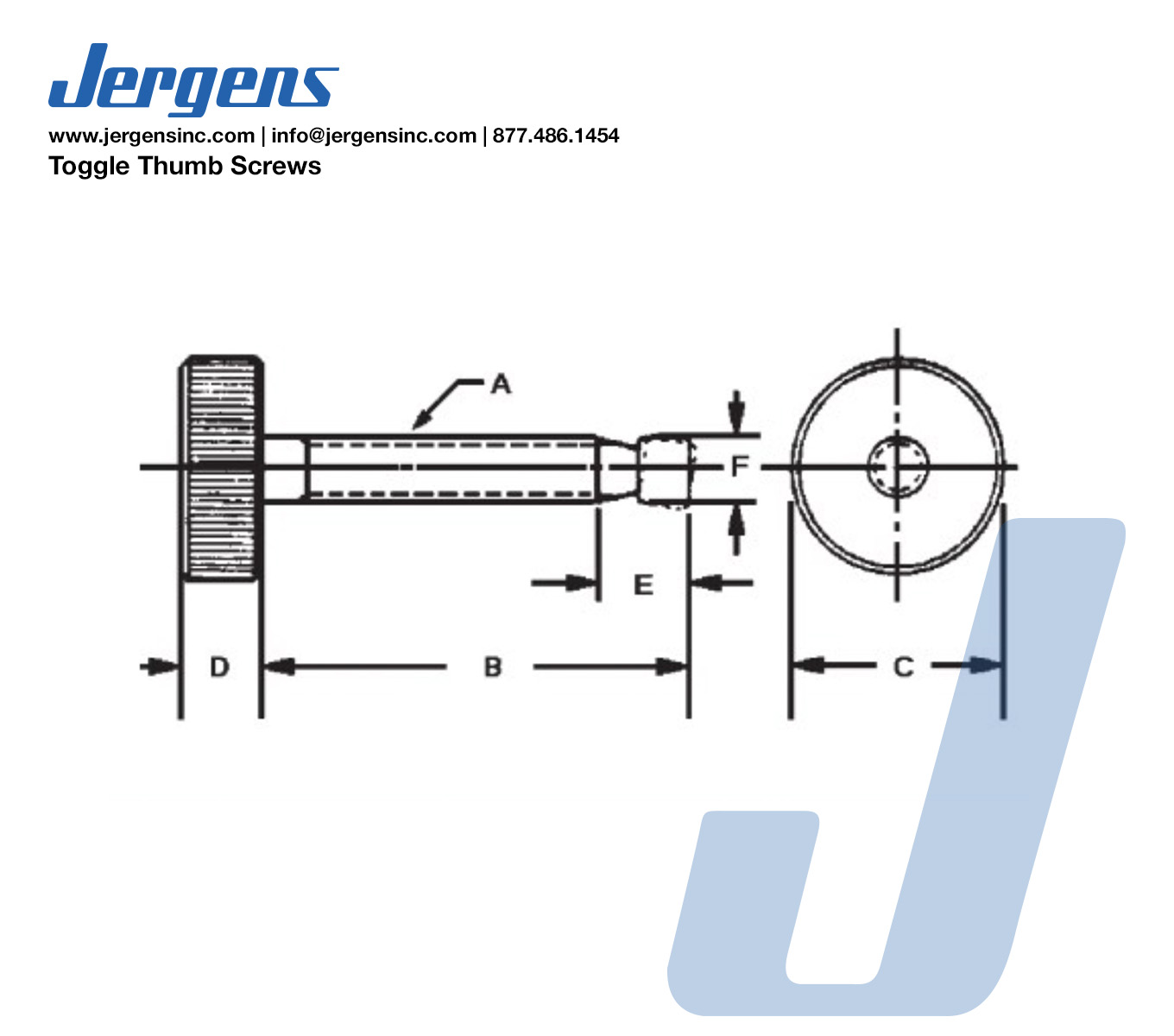

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A | B (In) | C (In) | D (In) | E (In) | F (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 33501 |
|
Inch | 10-24 | 1 | 3/4 | 5/16 | 3/16 | 0.140 | 0.31 |
| 33502 |
|
Inch | 10-24 | 1 1/2 | 3/4 | 5/16 | 3/16 | 0.140 | 0.47 |
| 33503 |
|
Inch | 1/4-20 | 1 1/2 | 1 | 5/16 | 15/64 | 0.185 | 0.78 |
| 33504 |
|
Inch | 1/4-20 | 2 | 1 | 5/16 | 15/64 | 0.185 | 0.94 |
| 33505 |
|
Inch | 5/16-18 | 1 1/2 | 1 1/8 | 3/8 | 9/32 | 0.240 | 1.05 |
| 33506 |
|
Inch | 5/16-18 | 2 | 1 1/2 | 3/8 | 9/32 | 0.240 | 1.25 |
| 33507 |
|
Inch | 5/16-18 | 2 1/2 | 1 1/4 | 3/8 | 9/32 | 0.240 | 1.40 |
| 33508 |
|
Inch | 3/8-16 | 1 1/2 | 1 1/4 | 7/16 | 11/32 | 0.294 | 1.70 |
| 33509 |
|
Inch | 3/8-16 | 2 | 1 1/4 | 7/16 | 11/32 | 0.294 | 1.88 |
| 33510 |
|
Inch | 3/8-16 | 2 1/2 | 1 1/4 | 7/16 | 11/32 | 0.294 | 2.04 |
| 33511 |
|
Inch | 3/8-16 | 3 | 1 1/4 | 7/16 | 11/32 | 0.294 | 2.20 |
