Tapped Leveling Mounts
Jergens Tru-Center™ Tapped Leveling Mounts help stabilize the bases or legs of machinery, shelving, cabinetry, etc. They can also help reduce vibration, noise, and stress on machinery parts.
Our patented Tru-Center™ products are the only pad type on the market to provide true center-line clamping. The center line of the pad and the center line of the nut always intersect at the point of contact between the pad and the workpiece.
Features, Benefits, & Product Specifications:
-
Standard Material: 1214 Steel
-
Finish & Color: Zinc Plated, Yellow Finish
-
Non-Skid Material: Neoprene
-
Heat Treat: Case Hardened, file hard
-
Swivels 20° (±10°) from the center in all directions
-
Available with non-skid on base
-
Available in stainless steel or with a Delrin pad and in larger sizes upon request
Note(s):
Add 1/8” to C Dimension for non-skid style.

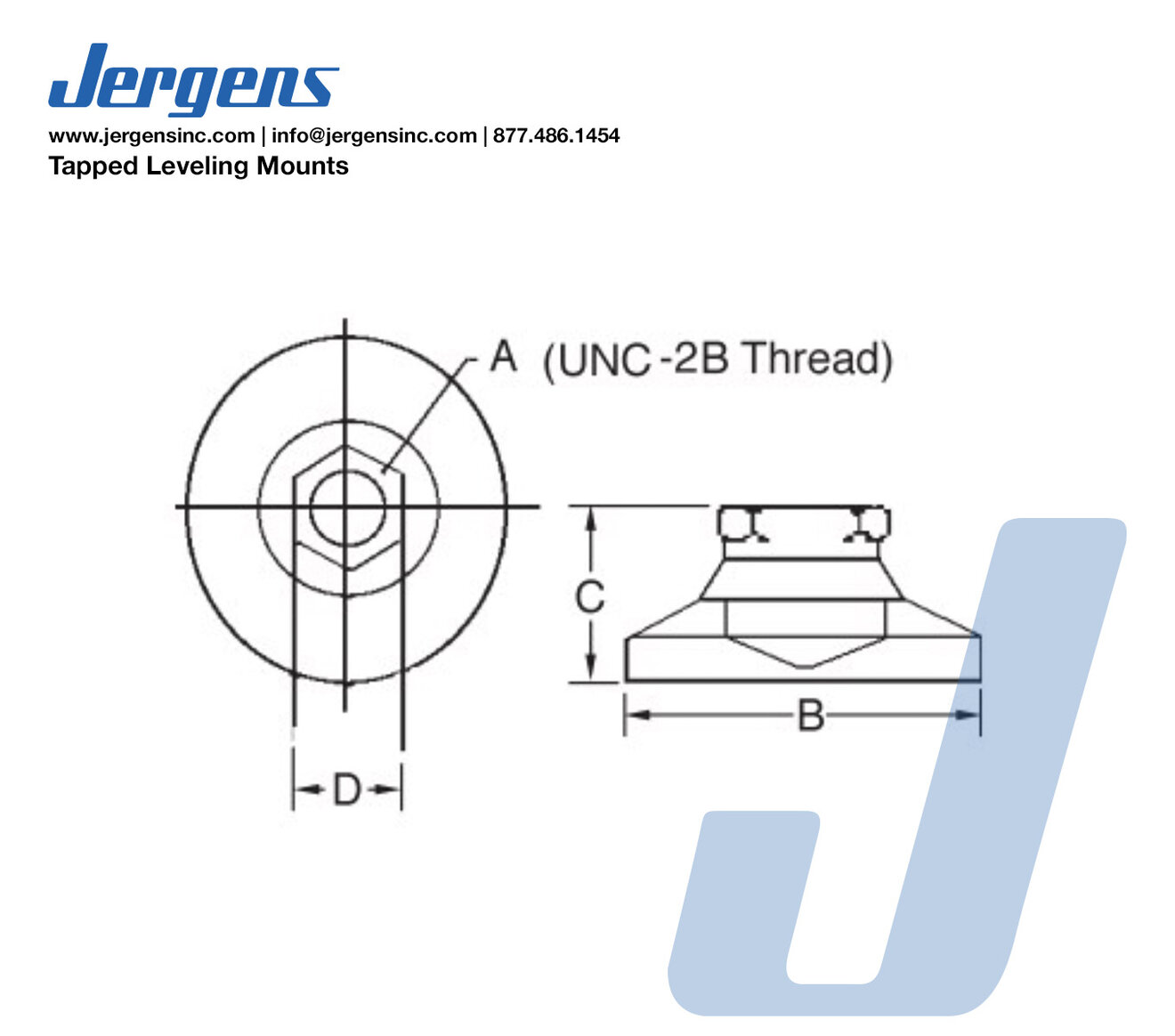

TruCenter Tapped Leveling Mount_LineArt
Tapped Leveling Mounts
| Part Number | CAD | Unit | Type | A | B (In) | C (In) | D (in) | Maximum Load (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| 32601 |
|
Inch | Standard | 10-32 | 3/4 | 17/32 | 3/8 | 700 | |
| 32602 |
|
Inch | Standard | 1/4-20 | 1 | 45/64 | 1/2 | 1000 | |
| 32606 |
|
Inch | Standard | 3/8-16 | 1 1/4 | 7/8 | 5/8 | 3750 | |
| 32608 |
|
Inch | Standard | 1/2-13 | 1 7/8 | 1 1/8 | 3/4 | 3750 | |
| 32610 |
|
Inch | Standard | 5/8-11 | 2 1/2 | 1 1/4 | 7/8 | 6000 | |
| 32612 |
|
Inch | Standard | 3/4-10 | 3 | 1 1/2 | 1 1/16 | 7400 | |
| 32616 |
|
Inch | Standard | 1-8 | 4 | 1 7/8 | 1 3/8 | 21000 | |
| 32651 |
|
Inch | Non-Skid | 10-32 | 3/4 | 17/32 | 3/8 | 550 | |
| 32652 |
|
Inch | Non-Skid | 1/4-20 | 1 | 45/64 | 1/2 | 825 | |
| 32656 |
|
Inch | Non-Skid | 3/8-16 | 1 1/4 | 7/8 | 5/8 | 2820 | |
| 32658 |
|
Inch | Non-Skid | 1/2-13 | 1 7/8 | 1 1/8 | 3/4 | 3750 | |
| 32660 |
|
Inch | Non-Skid | 5/8-11 | 2 1/2 | 1 1/4 | 7/8 | 5000 | |
| 32662 |
|
Inch | Non-Skid | 3/4-10 | 3 | 1 1/2 | 1 1/16 | 6000 | |
| 32666 |
|
Inch | Non-Skid | 1-8 | 4 | 1 7/8 | 1 3/8 | 16500 |
