Adjustable Torque Toggle Screws
Jergens Tru-Center™ Adjustable Torque Toggle Screws are perfect for delicate and fine clamping. Once the end holding force is reached, the head breaks free. Larger radius, straight knurled head for easy turning.
Our patented Tru-Center™ products are the only pad type on the market to provide true center-line clamping. The center line of the pad and the center line of the nut always intersect at the point of contact between the pad and the workpiece.
Features, Benefits, & Product Specifications:
-
Stem Material & Finish: Stressproof® Steel, Black Oxide
-
Pad Material: 4140 Steel
-
Head Finish: Chrome Plate
-
Thread: 2A-UNC
-
The pad features angular movement on either side of the center (total 16°)
Adjustable Torque Toggle Screws

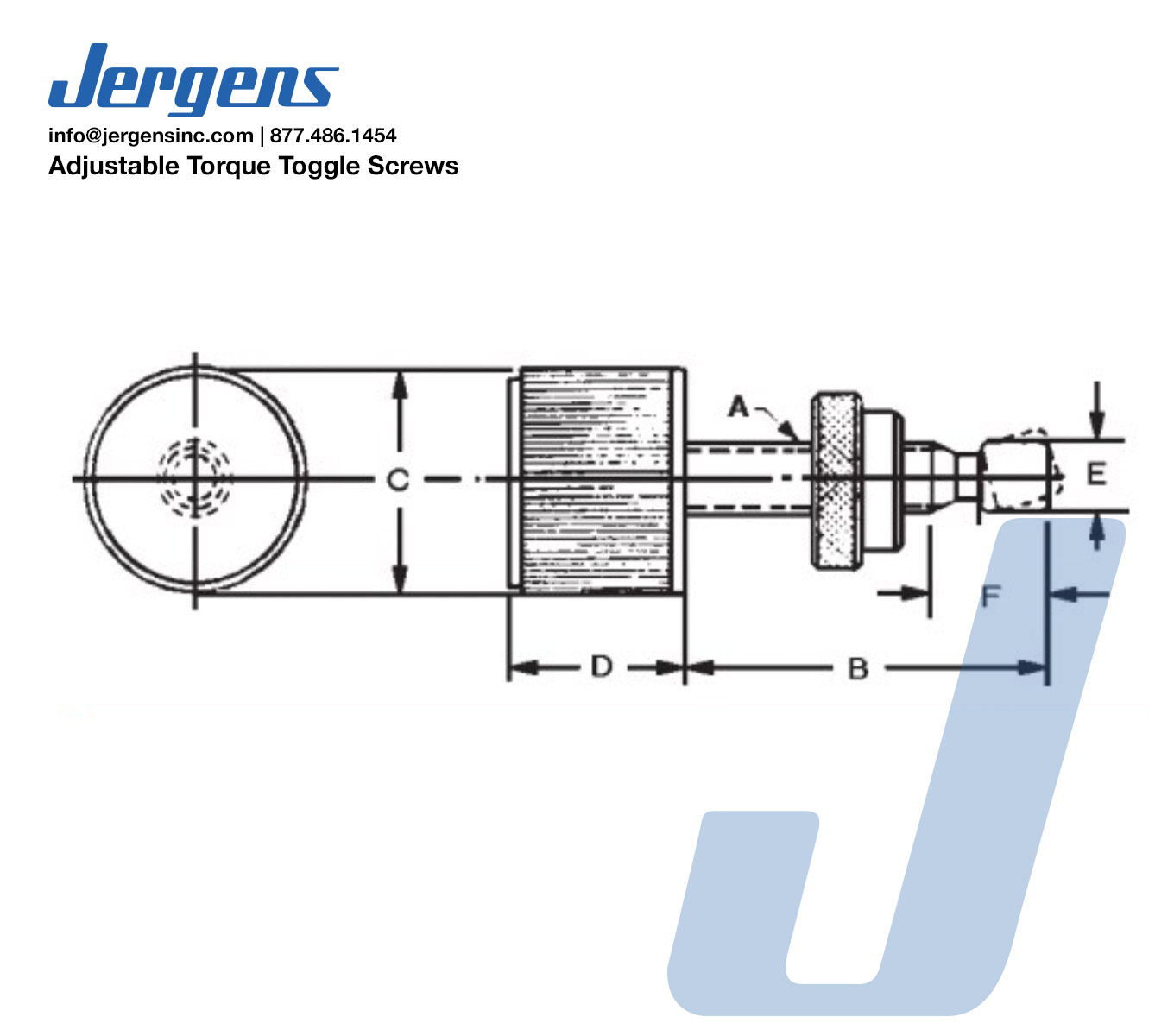

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A | B (In) | C (In) | D (In) | E (In) | F (In) | End Force (lbs) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 31101 |
|
Inch | 10-24 | 1 1/4 | 1 | 23/32 | 0.140 | 3/16 | 0-50 | 1.7 |
| 31102 |
|
Inch | 1/4-20 | 1 1/2 | 1 | 23/32 | 0.185 | 15/64 | 0-50 | 1.7 |
| 31103 |
|
Inch | 1/4-20 | 2 1/2 | 1 | 23/32 | 0.185 | 15/64 | 0-50 | 1.8 |
| 31104 |
|
Inch | 5/16-18 | 1 3/4 | 1 | 23/32 | 0.240 | 9/32 | 0-50 | 1.9 |
| 31105 |
|
Inch | 5/16-18 | 2 3/4 | 1 | 23/32 | 0.240 | 9/32 | 0-50 | 2.1 |
| 31106 |
|
Inch | 3/8-16 | 2 | 1 1/4 | 25/32 | 0.294 | 11/32 | 0-60 | 3.0 |
| 31107 |
|
Inch | 1/2-13 | 3 | 1 1/4 | 25/32 | 0.400 | 7/16 | 0-60 | 4.2 |
