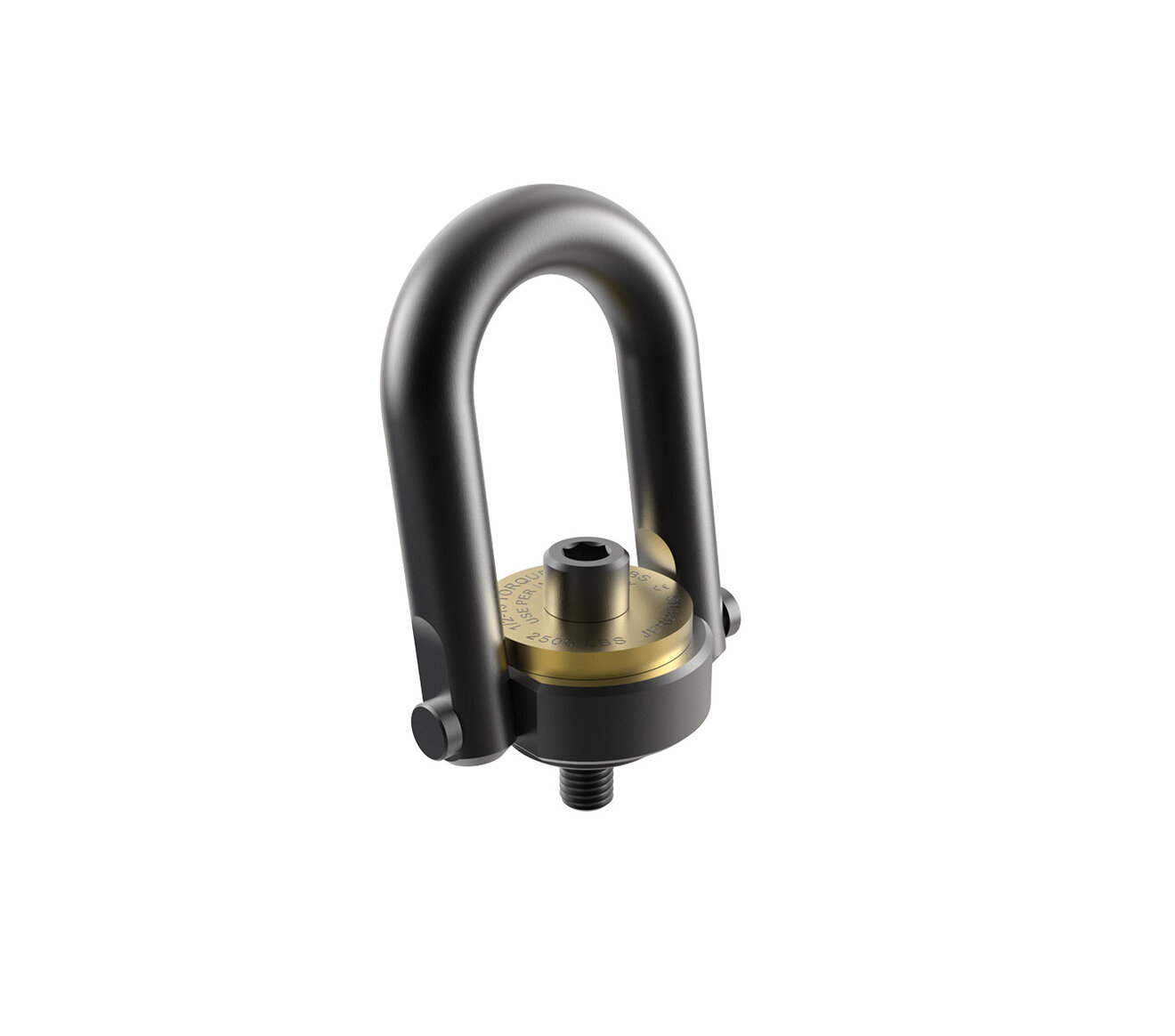

Traditional Center-Pull Hoist Rings with Standard U-Bar

Jergens Center-Pull Hoist Rings are made the way they should be: right here in the USA, starting with domestically-produced, certified alloy steel. Choose Jergens and get tough, dependable, American-made quality every time.
Features, Benefits, & Product Specifications:
  • Material & Finish: Alloy Steel, Black Oxide
  • Washer Material & Finish:
    • Inch: Zinc Plated with Gold Color
    • Metric: Zinc Plated with Clear/Blue Conversion Coating
  • U-Bars, Bolts, Pins, Bases, Washers, and Bushings are Magnetic Particle Inspected
  • Conforms to ASME B30.26 and MIL-STD-209K
Note(s):
  • Stated Load Capacity based on recommended thread torques as shown in the table.
  • It is recommended that the Torque values be used when installing hoist rings.
  • The rated load may be reduced at 90° from vertical for Part No.'s 23410, 23414, 23415, 23416, 23420, 23465, 23468, 23471, 33474, & 23843.

If requesting large quantities or high volume please contact customer service via [email protected] or (866) 594-5565. For a self-service alternative, try our Quick Quote form!

Documents

Traditional Center-Pull Hoist Rings with Standard U-Bar

Traditional Center-Pull Hoist Rings with Standard U-Bar
  • Traditional Center-Pull Hoist Rings with Standard U-Bar

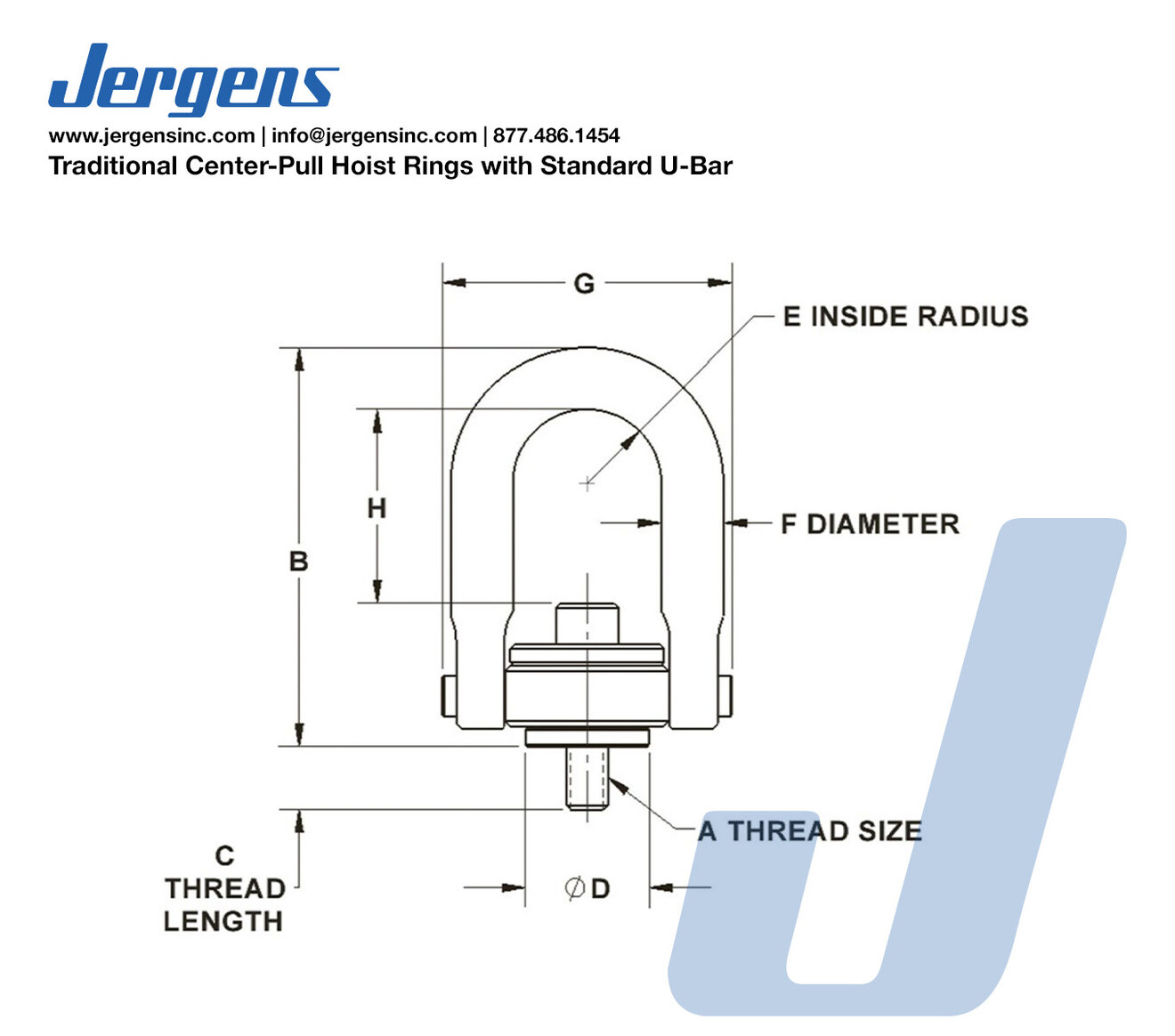

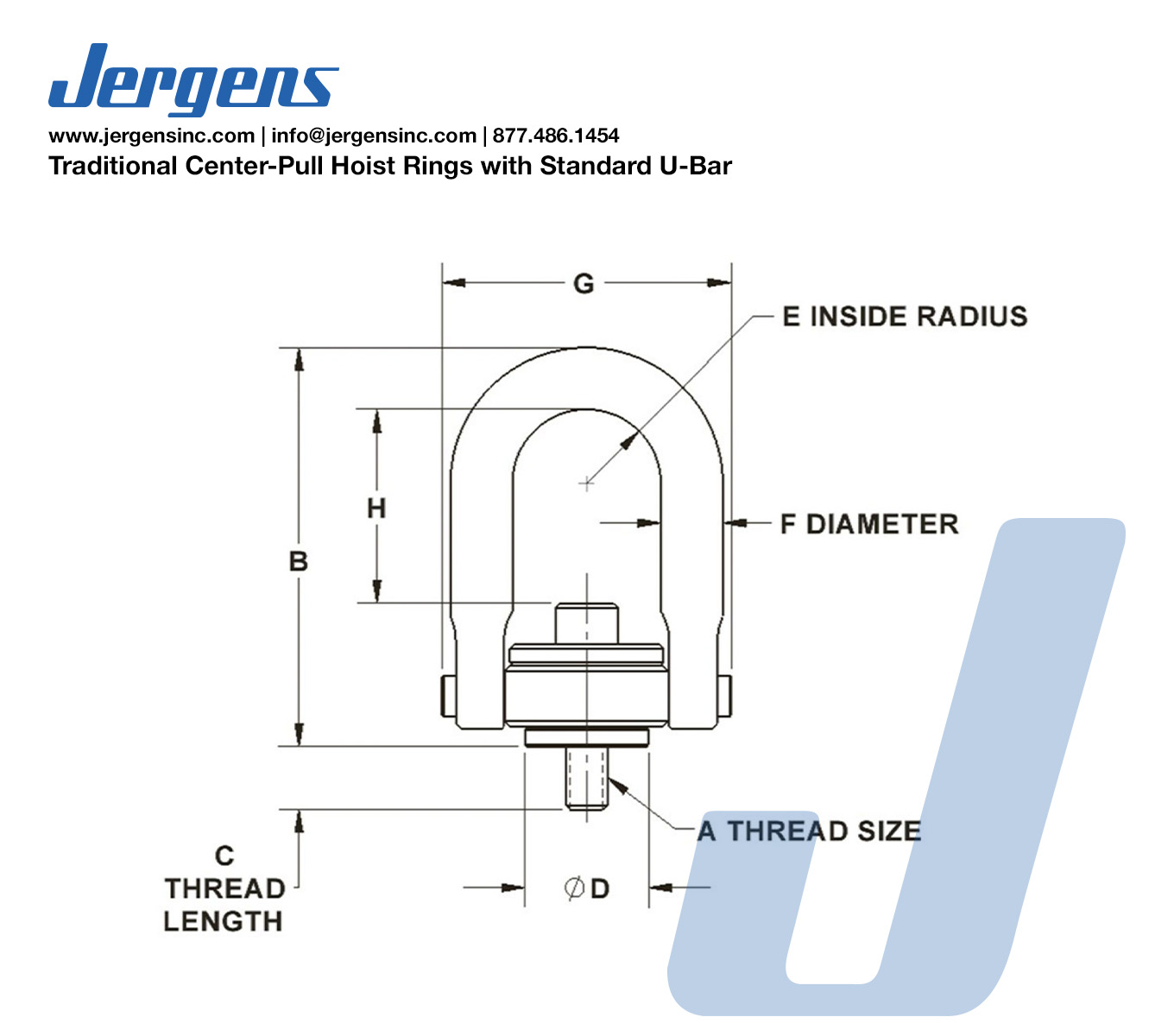

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Load Capacity Thread Size A Base Shape B (In) Thread Length C (in) D (in) E (in) F (in) G (in) H (in) Torque (ft. lbs.) Weight (lbs) Bolt Kit Part Number
23404 icon_cad Inch 550 lbs 1/4-20 In Square 2.67 1/2 0.75 0.43 0.38 1.84 1 5/16 5 0.3 23604
23405 icon_cad Inch 800 lbs 5/16-18 In Square 2.67 1/4 0.75 0.43 0.38 1.84 1 1/4 7 0.3 23605
23406 icon_cad Inch 800 lbs 5/16-18 In Square 2.67 9/16 0.75 0.43 0.38 1.84 1 1/4 7 0.3 23606
23408 icon_cad Inch 1000 lbs 3/8-16 In Square 2.67 9/16 0.75 0.43 0.38 1.84 1 1/4 12 0.3 23608
23410 icon_cad Inch 2500 lbs 1/2-13 In Round 3.75 1 1/16 1.2 0.69 0.50 2.56 1 25/32 28 1.0 23610
23411 icon_cad Inch 2500 lbs 1/2-13 In Round 4.78 3/4 1.5 0.88 0.75 3.52 2 3/8 28 2.5 23611
23412 icon_cad Inch 2500 lbs 1/2-13 Round 4.78 1 1.5 0.88 0.75 3.52 2 3/8 28 2.5 23612
23413 icon_cad Inch 2500 lbs 1/2-13 In Round 4.78 1 1/4 1.5 0.88 0.75 3.52 2 3/8 28 2.5 23613
23414 icon_cad Inch 4000 lbs 5/8-11 In Round 4.78 1 1.5 0.88 0.75 3.52 2 1/4 60 2.7 23614
23415 icon_cad Inch 4000 lbs 5/8-11 In Round 4.78 1 1/4 1.5 0.88 0.75 3.52 2 1/4 60 2.7 23615
23416 icon_cad Inch 4000 lbs 5/8-11 In Round 4.78 3/4 1.5 0.88 0.75 5.32 2 1/4 60 2.7 23616
23417 icon_cad Inch 5000 lbs 3/4-10 In Round 4.78 1 1.5 0.88 0.75 3.52 2 1/8 100 3.0 23617
23418 icon_cad Inch 5000 lbs 3/4-10 In Round 4.78 1 1/2 1.5 0.88 0.75 3.52 2 1/8 100 3.0 23618
23420 icon_cad Inch 7000 lbs 3/4-10 In Round 6.52 1 2.31 1.4 1.00 5.14 2 15/16 100 7.0 23620
23421 icon_cad Inch 7000 lbs 3/4-10 In Round 6.52 1 1/2 2.31 1.4 1.00 5.14 2 15/16 100 7.0 23621
23423 icon_cad Inch 8000 lbs 7/8-9 In Round 6.52 1 2.31 1.4 1.00 5.14 2 13/16 160 7.0 23623
23424 icon_cad Inch 8000 lbs 7/8-9 In Round 6.52 1 1/4 2.31 1.4 1.00 5.14 2 13/16 160 7.0 23624
23425 icon_cad Inch 10000 lbs 1-8 In Round 6.52 1 1/4 2.31 1.4 1.00 5.14 2 11/16 230 7.5 23625
23426 icon_cad Inch 10000 lbs 1-8 In Round 6.52 1 1/2 2.31 1.4 1.00 5.14 2 11/16 230 7.5 23626
23427 icon_cad Inch 10000 lbs 1-8 In Round 6.52 2 1/4 2.31 1.4 1.00 5.14 2 11/16 230 7.5 23627
23429 icon_cad Inch 15000 lbs 1 1/4-7 In Round 8.73 1 7/8 3.19 1.75 1.25 6.5 4 1/4 470 14 23629
23429-08 icon_cad Inch 15000 lbs 1 1/4-8 In Round 8.73 1 7/8 3.19 1.75 1.25 6.5 4 1/4 470 14 23629-08
23433 icon_cad Inch 24000 lbs 1 1/2-6 In Round 12.47 2 3/4 4.19 1.75 1.75 8.55 6 1/2 800 33 23633
23433-08 icon_cad Inch 24000 lbs 1 1/2-8 In Round 12.47 2 3/4 4.19 2.25 1.75 8.55 6 1/2 800 33 23633-08
23435 icon_cad Inch 30000 lbs 2-4 1/2 In Round 12.47 3 1/8 4.19 2.25 1.75 8.55 6 1100 36 23635
23435-08 icon_cad Inch 30000 lbs 2-8 In Round 12.47 3 1/8 4.19 2.25 1.75 8.55 6 1100 36 23635-08
23438 icon_cad Inch 50000 lbs 2 1/2-4 In Round 16.50 4 5.75 3 2.25 11.72 8 1/4 2100 89 23638
23438-08 icon_cad Inch 50000 lbs 2 1/2-8 In Round 16.50 4 5.75 3 2.25 11.72 8 1/4 2100 89 23638-08
Part Number CAD Unit Load Capacity Thread Size A Base Shape B (mm) Thread Length C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Torque (Nm) Weight (kg) Bolt Kit Part Number
23455 icon_cad Metric 200 kgs M6 x 1.0 Square 67.8 12 19 10.9 9.7 46.7 34 6 0.17 23655
23456 icon_cad Metric 400 kgs M8 x 1.25 Round 67.8 12.5 19 10.9 9.7 46.7 32 10 0.17 23656
23458 icon_cad Metric 450 kgs M10 x 1.50 Round 67.8 17.5 19 10.9 9.7 46.7 30 17 0.17 23658
23462 icon_cad Metric 1050 kgs M12 x 1.75 Round 123.0 19.0 38.1 22.4 19.0 89.4 60.5 37 1.1 23662
23465 icon_cad Metric 1900 kgs M16 x 2.0 Round 123.0 29.0 38.1 22.4 19.0 89.4 56.5 80 1.1 23665
23468 icon_cad Metric 2150 kgs M20 x 2.5 Round 123.0 34.0 38.1 22.4 19.0 89.4 52.5 135 1.2 23668
23471 icon_cad Metric 3000 kgs M20 x 2.5 Round 163.0 32.0 58.7 35.6 25.4 130.6 73 135 3.0 23671
23474 icon_cad Metric 4200 kgs M24 x 3.0 Round 163.0 37.0 58.7 35.6 25.4 130.6 69 305 3.1 23674
23478 icon_cad Metric 7000 kgs M30 x 3.5 Round 221.7 46.0 81 44.5 31.7 165.1 107.4 590 6.3 23678
23479 icon_cad Metric 7000 kgs M30 x 3.5 Round 221.7 66.0 81 44.5 31.7 165.1 107.4 590 6.4 23679
23483 icon_cad Metric 11000 kgs M36 x 4.0 Round 316.7 68.0 106.4 57.2 44.4 217.2 166.5 980 15.5 23683
23484 icon_cad Metric 12500 kgs M42 x 4.5 Round 316.7 68.0 106.4 57.2 44.4 217.2 160.5 980 16.0 23684
23485 icon_cad Metric 13500 kgs M48 x 5.0 Round 316.7 88.0 106.4 57.2 44.4 217.2 154.5 980 16.8 23685
23488 icon_cad Metric 22500 kgs M64 x 6.0 Round 419.1 96.0 146 76.2 57.15 297.6 210 2845 40.0 23688
