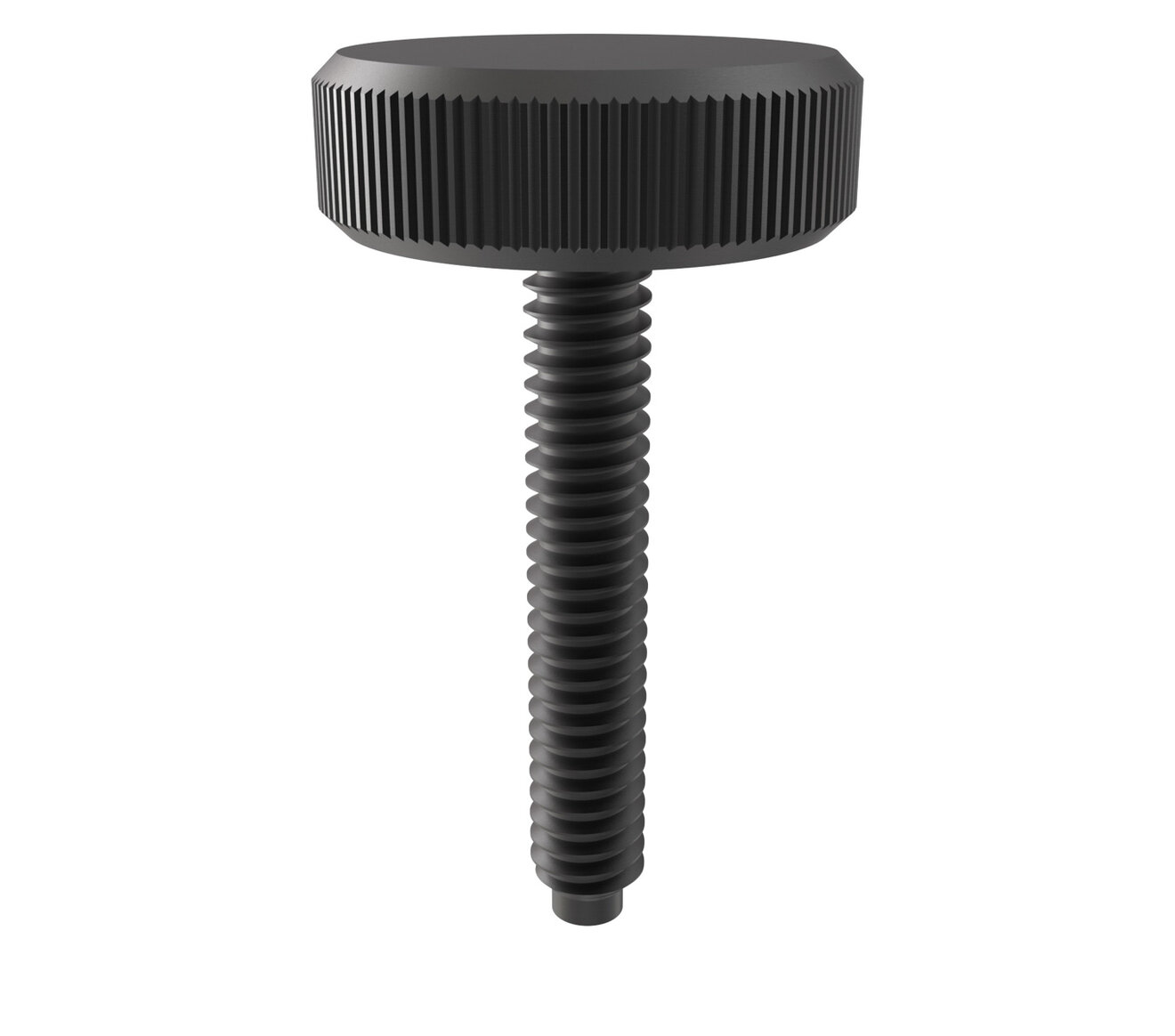

Thumb Screws
The half-dog point of Jergens Thumb Screws protects the threads in case of peening.
Features, Benefits, & Product Specifications:
-
Materials: Available in 1215 Steel and 303 Stainless Steel
-
Finish: Black Oxide (for 1215 Steel Thumb Screws)
-
Threads: 2A-UNF (10-32); 2A-UNC (Other "A" Sizes)
Thumb Screws

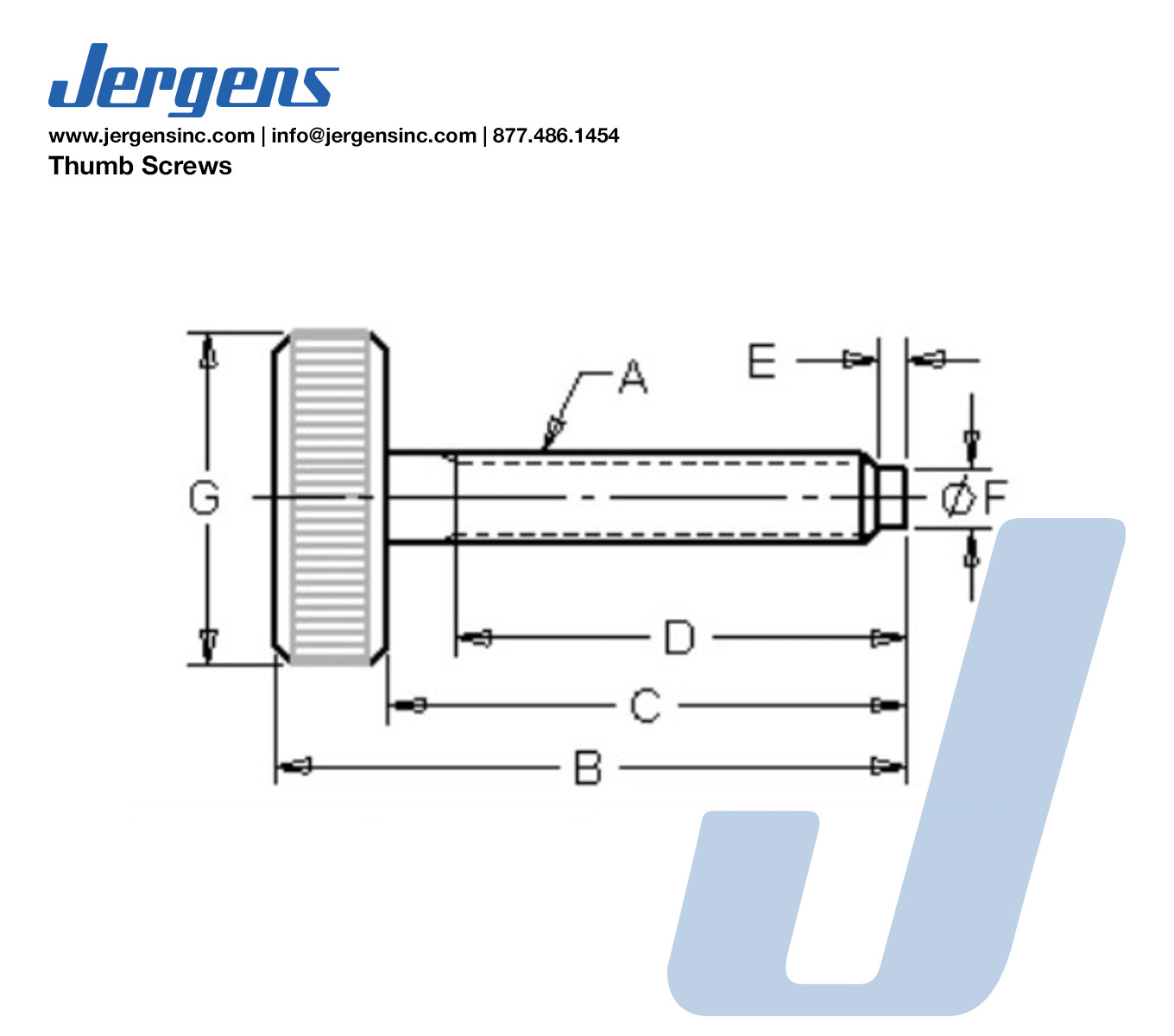

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Material | A | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43900 |
|
Inch | Steel | 10-24 | 1 3/4 | 1 1/2 | 1 3/8 | 7/32 | 3/16 | 3/4 | 0.45 |
| 43901 |
|
Inch | Steel | 10-24 | 1 9/16 | 1 1/4 | 1 1/16 | 3/64 | 1/8 | 3/4 | 0.44 |
| 43902 |
|
Inch | Steel | 10-24 | 1 15/16 | 1 5/8 | 1 7/16 | 3/64 | 1/8 | 3/4 | 0.47 |
| 43903 |
|
Inch | Steel | 10-24 | 2 5/16 | 2 | 1 13/16 | 3/64 | 1/8 | 3/4 | 0.48 |
| 43904 |
|
Inch | Steel | 1/4-20 | 1 13/16 | 1 1/2 | 1 1/4 | 1/16 | 5/32 | 1 | 0.78 |
| 43905 |
|
Inch | Steel | 1/4-20 | 2 5/16 | 2 | 1 3/4 | 1/16 | 5/32 | 1 | 0.86 |
| 43906 |
|
Inch | Steel | 1/4-20 | 2 13/16 | 2 1/2 | 2 1/4 | 1/16 | 5/32 | 1 | 0.91 |
| 43907 |
|
Inch | Steel | 5/16-18 | 2 1/8 | 1 3/4 | 1 7/16 | 5/64 | 13/64 | 1 1/8 | 1.30 |
| 43908 |
|
Inch | Steel | 5/16-18 | 2 5/8 | 2 1/4 | 1 15/16 | 5/64 | 13/64 | 1 1/8 | 1.36 |
| 43909 |
|
Inch | Steel | 5/16-18 | 3 1/8 | 2 3/4 | 2 7/16 | 5/64 | 13/64 | 1/18 | 1.50 |
| 43910 |
|
Inch | Steel | 3/8-16 | 2 7/16 | 2 | 1 5/8 | 3/32 | 1/4 | 1 1/4 | 1.93 |
| 43911 |
|
Inch | Steel | 3/8-16 | 2 15/16 | 2 1/2 | 2 1/8 | 3/32 | 1/4 | 1 1/4 | 2 |
| 43912 |
|
Inch | Steel | 3/8-16 | 3 7/16 | 3 | 2 5/8 | 3/32 | 1/4 | 1 1/4 | 2.20 |
| 43913 |
|
Inch | Steel | 1/2-13 | 2 15/16 | 2 1/2 | 2 1/8 | 1/8 | 11/32 | 1 1/4 | 2.55 |
| 43914 |
|
Inch | Steel | 1/2-13 | 3 7/16 | 3 | 2 5/8 | 1/8 | 11/32 | 1 1/4 | 2.80 |
| 43915 |
|
Inch | Steel | 1/2-13 | 3 15/16 | 3 1/2 | 3 1/8 | 1/8 | 11/32 | 1 1/4 | 3.10 |
| 44001 |
|
Inch | Stainless Steel | 10-32 | 1 3/16 | 1 | 3/4 | 7/32 | 3/16 | 3/4 | 0.45 |
| 44002 |
|
Inch | Stainless Steel | 10-32 | 1 7/16 | 1 1/4 | 1 | 7/32 | 3/16 | 3/4 | 0.45 |
| 44004 |
|
Inch | Stainless Steel | 1/4-20 | 1 5/6 | 1 | 25/32 | 3/32 | 11/64 | 1 | 0.75 |
| 44005 |
|
Inch | Stainless Steel | 1/4-20 | 1 13/16 | 1 1/2 | 1 1/4 | 1/16 | 5/32 | 1 | 0.78 |
| 44006 |
|
Inch | Stainless Steel | 1/4-20 | 2 5/16 | 2 | 1 3/4 | 1/16 | 5/32 | 1 | 0.86 |
| 44008 |
|
Inch | Stainless Steel | 5/16-18 | 2 1/8 | 1 3/4 | 1 7/16 | 5/64 | 13/64 | 1 1/8 | 1.30 |
| 44009 |
|
Inch | Stainless Steel | 5/16-18 | 2 5/8 | 2 1/4 | 1 15/16 | 5/64 | 13/64 | 1 1/8 | 1.36 |
| 44010 |
|
Inch | Stainless Steel | 5/16-18 | 3 1/8 | 2 3/4 | 2 7/16 | 5/64 | 13/64 | 1 1/8 | 1.50 |
| 44011 |
|
Inch | Stainless Steel | 3/8-16 | 2 7/16 | 2 | 1/58 | 3/32 | 1/4 | 1 1/4 | 1.93 |
| 44012 |
|
Inch | Stainless Steel | 3/8-16 | 2 15/16 | 2 1/2 | 2 1/8 | 3/32 | 1/4 | 1 1/4 | 2 |
| 44013 |
|
Inch | Stainless Steel | 3/8-16 | 3 7/16 | 3 | 2 5/8 | 3/32 | 1/4 | 1 1/4 | 2.20 |
| 44016 |
|
Inch | Stainless Steel | 1/2-13 | 4 | 3 1/2 | 3 | 1/4 | 3/8 | 1 1/4 | 3.10 |
| Part Number | CAD | Unit | A | Material | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 43971 |
|
Metric | M5 x 0.8 | Steel | 30 | 25 | 20 | 1.2 | 3 | 20 |
| 43972 |
|
Metric | M5 x 0.8 | Steel | 45 | 40 | 35 | 1.2 | 3 | 20 |
| 43974 |
|
Metric | M6 x 1.0 | Steel | 50 | 40 | 35 | 1.5 | 4 | 25 |
| 43975 |
|
Metric | M6 x 1.0 | Steel | 60 | 50 | 45 | 1.5 | 4 | 25 |
| 43976 |
|
Metric | M6 x 1.0 | Steel | 75 | 65 | 55 | 1.5 | 4 | 25 |
| 43977 |
|
Metric | M8 x 1.25 | Steel | 50 | 40 | 35 | 2.4 | 5 | 30 |
| 43978 |
|
Metric | M8 x 1.25 | Steel | 60 | 50 | 45 | 2.4 | 5 | 30 |
| 43979 |
|
Metric | M8 x 1.25 | Steel | 75 | 65 | 60 | 2.4 | 5 | 30 |
| 43980 |
|
Metric | M10 x 1.5 | Steel | 60 | 50 | 45 | 2.4 | 6 | 30 |
| 43981 |
|
Metric | M10x1.5 | Steel | 75 | 65 | 60 | 2.4 | 6 | 30 |
| 43983 |
|
Metric | M12 x 1.75 | Steel | 90 | 75 | 70 | 3 | 11 | 30 |
| 43984 |
|
Metric | M12 x 1.75 | Steel | 105 | 90 | 85 | 3 | 11 | 30 |
| 43985 |
|
Metric | M12 x 1.75 | Steel | 80 | 65 | 55 | 3 | 11 | 30 |
