Threaded Piston Buttons
Jergens Threaded Piston Buttons are for use on our Inch Threaded Heavy Duty Cylinders (see Related Products below).
Features, Benefits, & Product Specifications:
-
Material: Hardened Steel
-
1/4-28" Thread
Documents
Threaded Piston Buttons
Select a part number for CAD drawings, price and stock availability.

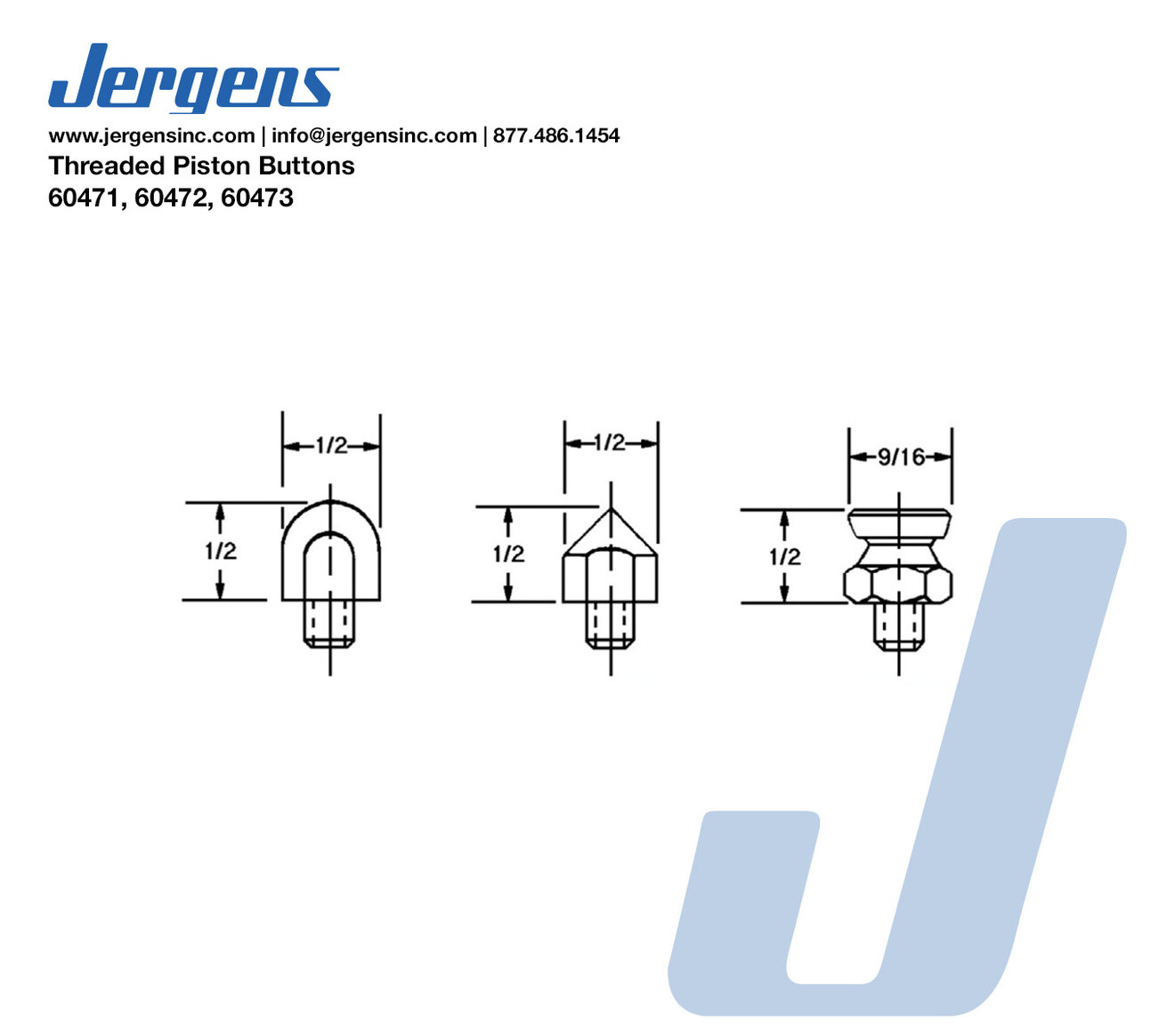

| Part Number | CAD | Unit | Description | Thread Size | Height (In) | Width (In) |
|---|---|---|---|---|---|---|
| 60471 |
|
Inch | Round Piston Button | 1/4-28" | 1/2 | 1/2 |
| 60472 |
|

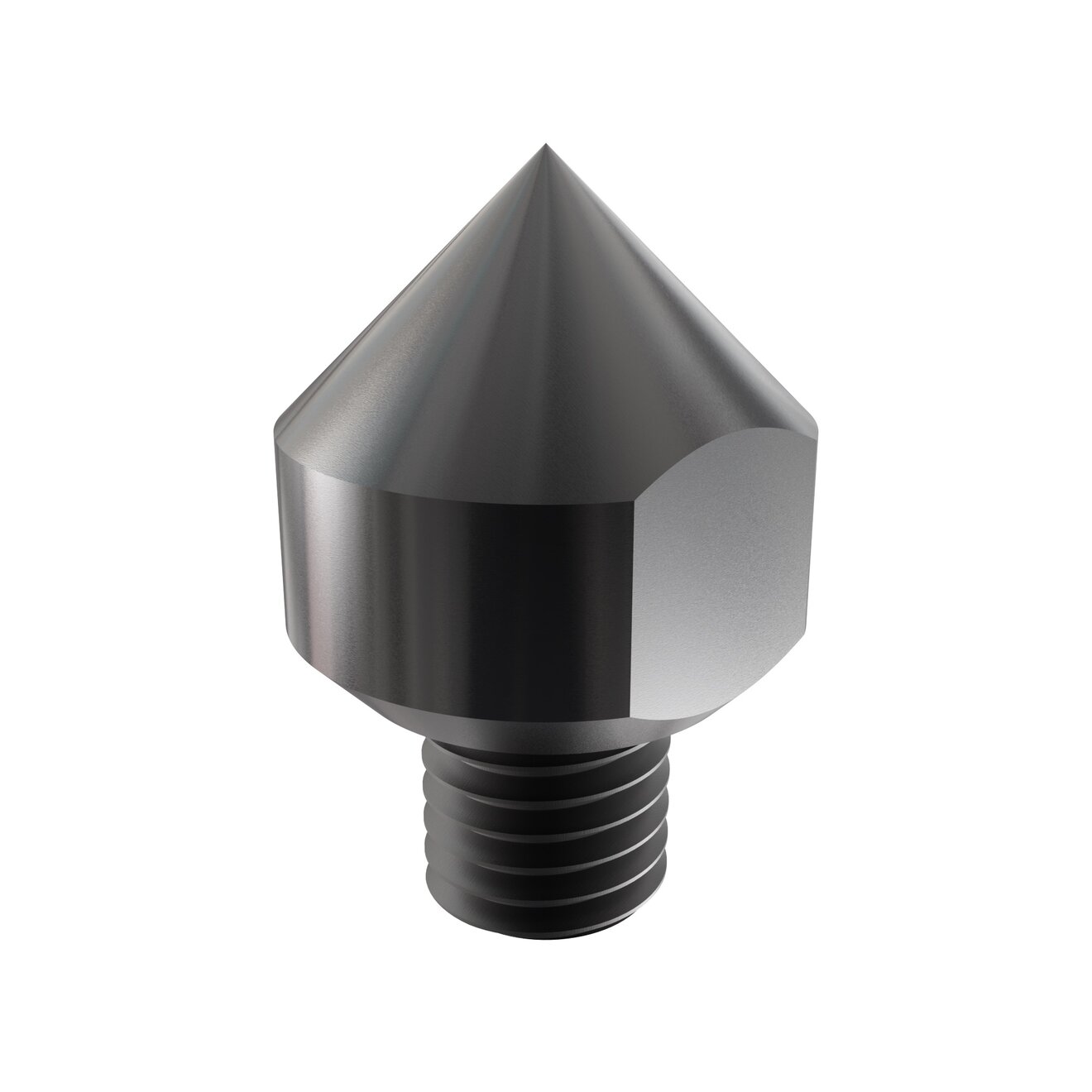

Inch | Pointed Piston Button | 1/4-28" | 1/2 | 1/2 |
| 60473 |
|
Inch | Flat Piston Button | 1/4-28" | 1/2 | 9/16 |
