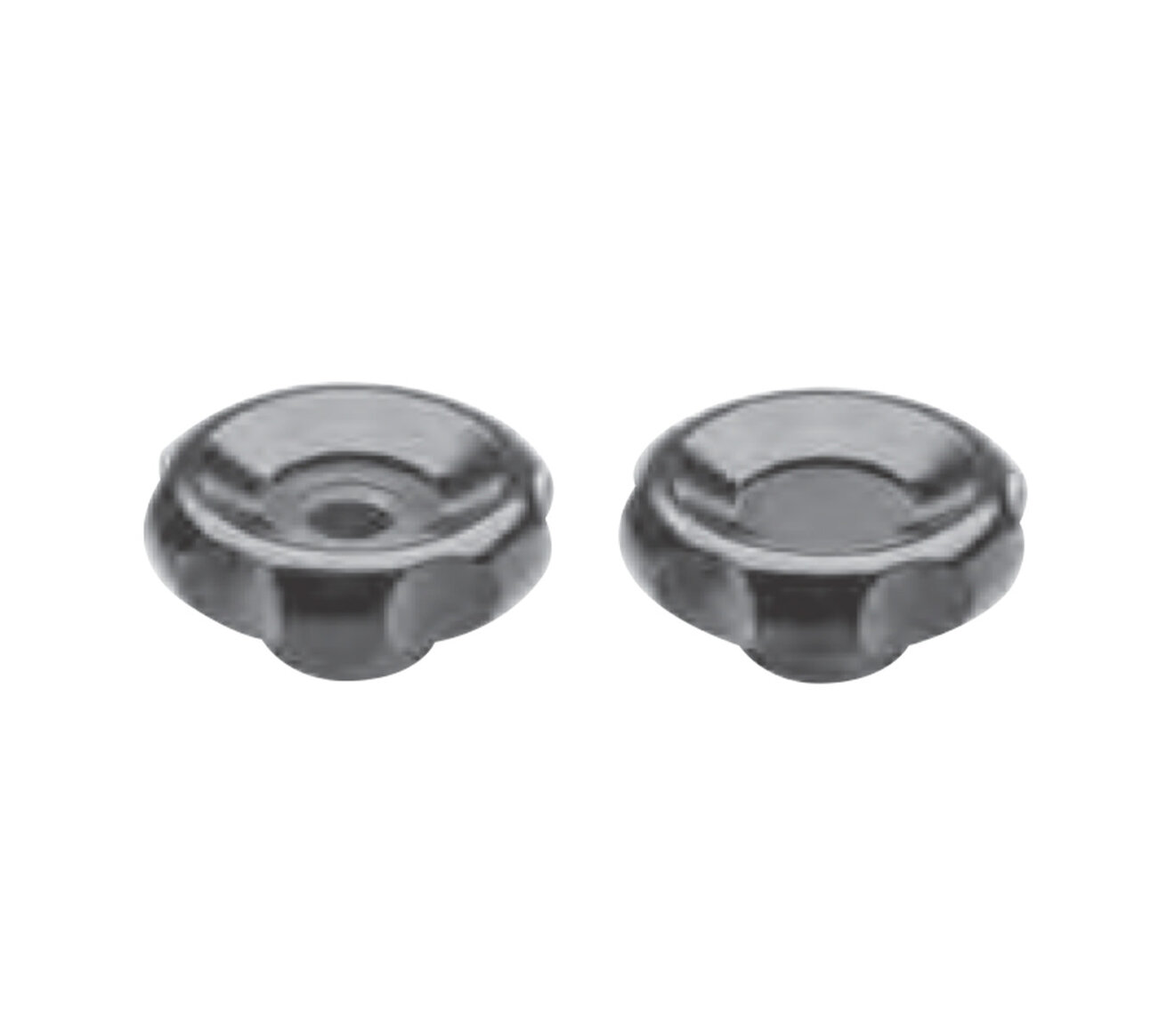

Technopolymer Lobe Knobs by ELESA®
Jergens Technopolymer Lobe Knobs by ELESA® are ergonomically-designed to give the user extra grip and control during operation across a wide range of industrial environments.
Features, Benefits, & Specifications:
-
Knob Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Knob Finish & Color: Glossy, Black
-
Hub Material & Finish: Steel, Black Oxide
-
Hub Executions: Not Drilled, Plain Through Hole, & Tapped Through Hole
-
Lightweight design
Documents
Technopolymer Lobe Knobs by ELESA®
Select a part number for CAD drawings, price and stock availability.

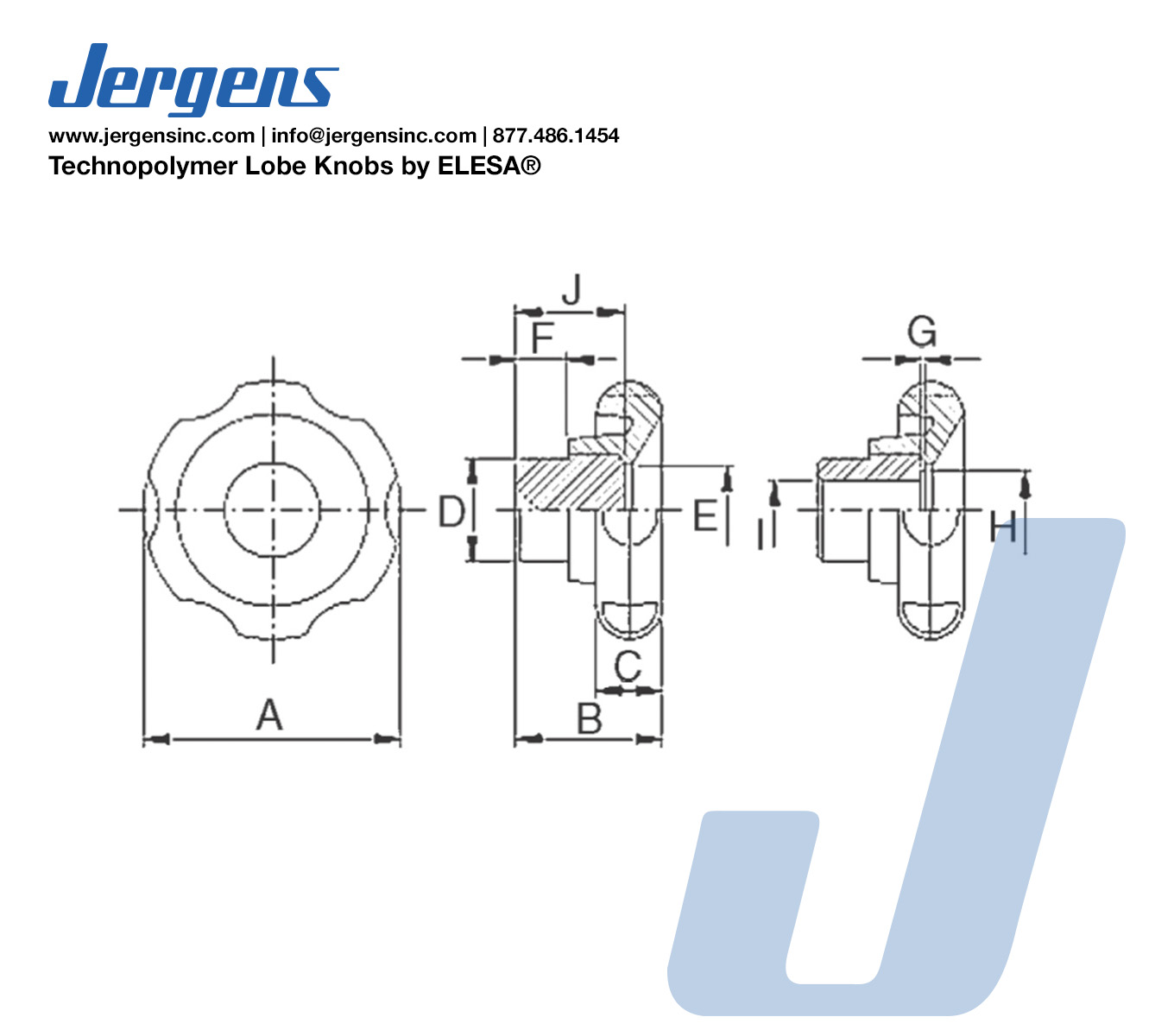

| Part Number | CAD | Unit | Mounting Hole Type | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | Mounting Hole I (In) | J (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34001 |
|
Inch | Not Drilled | 1.97 | 1.14 | 0.51 | 0.79 | 0.71 | 0.39 | - | - | - | 0.83 | 0.16 |
| 34002 |
|
Inch | Tapped Through Hole | 1.97 | 1.14 | 0.51 | 0.79 | 0.71 | 0.39 | - | - | 5/16-18 | 0.83 | 0.83 |
| 34003 |
|
Inch | Not Drilled | 2.40 | 1.18 | 0.53 | 0.98 | 0.94 | 0.43 | - | - | - | 0.91 | 0.28 |
| 34004 |
|
Inch | Not Drilled | 2.76 | 1.30 | 0.71 | 1.18 | 1.14 | 0.47 | - | - | - | 0.98 | 0.42 |
| 34006 |
|
Inch | Tapped Through Hole | 2.76 | 1.30 | 0.71 | 1.18 | 1.14 | 0.47 | 0.03 | 0.71 | 3/8-16 | 0.98 | 0.39 |
| 34007 |
|
Inch | Not Drilled | 3.15 | 1.57 | 0.75 | 1.38 | 1.34 | 0.59 | - | - | - | 1.18 | 0.61 |
| 34008 |
|
Inch | Plain Through Hole | 3.15 | 1.57 | 0.75 | 1.38 | 1.34 | 0.59 | 0.03 | 0.71 | 0.500 | 1.18 | 0.61 |
| 34009 |
|
Inch | Tapped Through Hole | 3.15 | 1.57 | 0.75 | 1.38 | 1.34 | 0.59 | 0.03 | 0.71 | 1/2-13 | 1.18 | 0.62 |
