Tapped Straps

Jergens Tapped Straps feature an elongated slot allows for greater clamping force on the part. A steel pad is standard. Plastic or brass Strap Pads may be ordered separately (see Related Products below).
Features, Benefits, & Product Specifications:
  • Material: Low Carbon Steel
  • Finish: Black Oxide
  • Thread: 2B-UNC
  • Heat Treat: Case Hardened Rockwell 30N Scale 59-69
  • Tapped for use with Adjustable Clamp Heel (see Related Products below)
Note(s):
Carbide Gripper Kits (Gripper Part No. 23704) are available for Part No.'s 36917 & 36918. See Related Products below. Contact our Technical Sales Department for more details.


Documents

Tapped Straps

Select a part number for CAD drawings, price and stock availability.

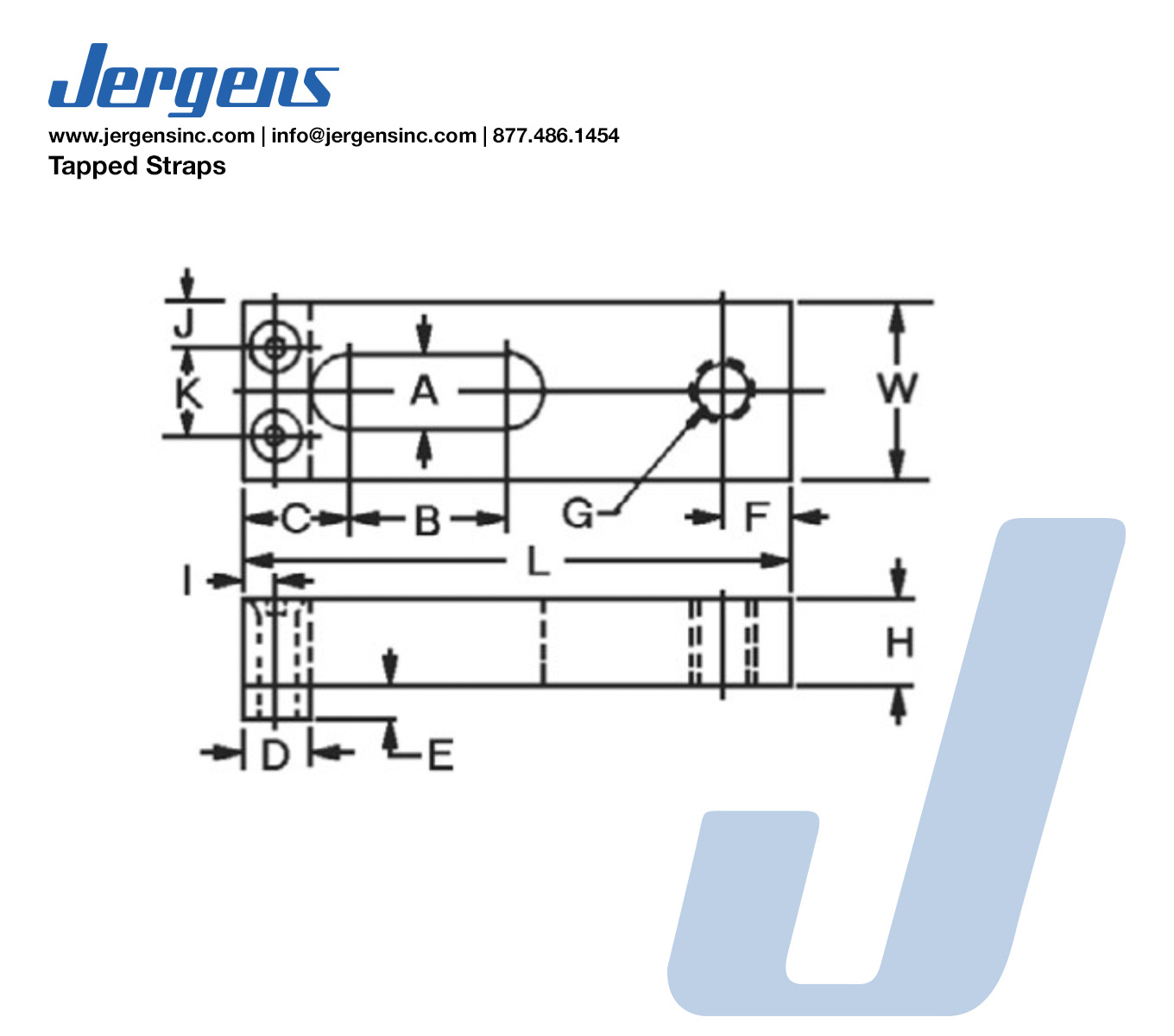

Part Number CAD Unit Bolt Size A (In) B (In) C (In) D (In) E (In) F (In) Thread Size G I (In) J (In) K (In) W (In) H (In) L (In) Weight (lbs)
36911 Inch 1/4 9/32 5/8 3/8 1/4 1/8 7/32 1/4-20 9/64 9/64 11/32 5/8 3/8 2 0.10
36913 Inch 5/16 11/32 3/4 9/16 3/8 3/16 1/4 5/16-18 3/16 3/16 1/2 7/8 1/2 2 1/2 0.20
36914 Inch 5/16 11/32 1 1/4 9/16 3/8 3/16 1/4 5/16-18 3/16 3/16 1/2 7/8 1/2 3 1/2 0.27
36915 Inch 3/8 13/32 1 1/8 11/16 1/2 1/4 3/8 3/8-16 1/4 5/16 5/8 1 1/4 5/8 3 1/2 0.69
36916 Inch 3/8 13/32 1 5/8 11/16 1/2 1/4 3/8 3/8-16 1/4 5/16 5/8 1 1/4 5/8 4 1/2 0.88
36917 Inch 1/2 17/32 1 1/4 7/8 5/8 3/8 7/16 1/2-13 1/4 3/8 3/4 1 1/2 3/4 4 1/2 0.70
36918 Inch 1/2 17/32 2 7/8 5/8 3/8 7/16 1/2-13 1/4 3/8 3/4 1 1/2 3/4 6 0.90
