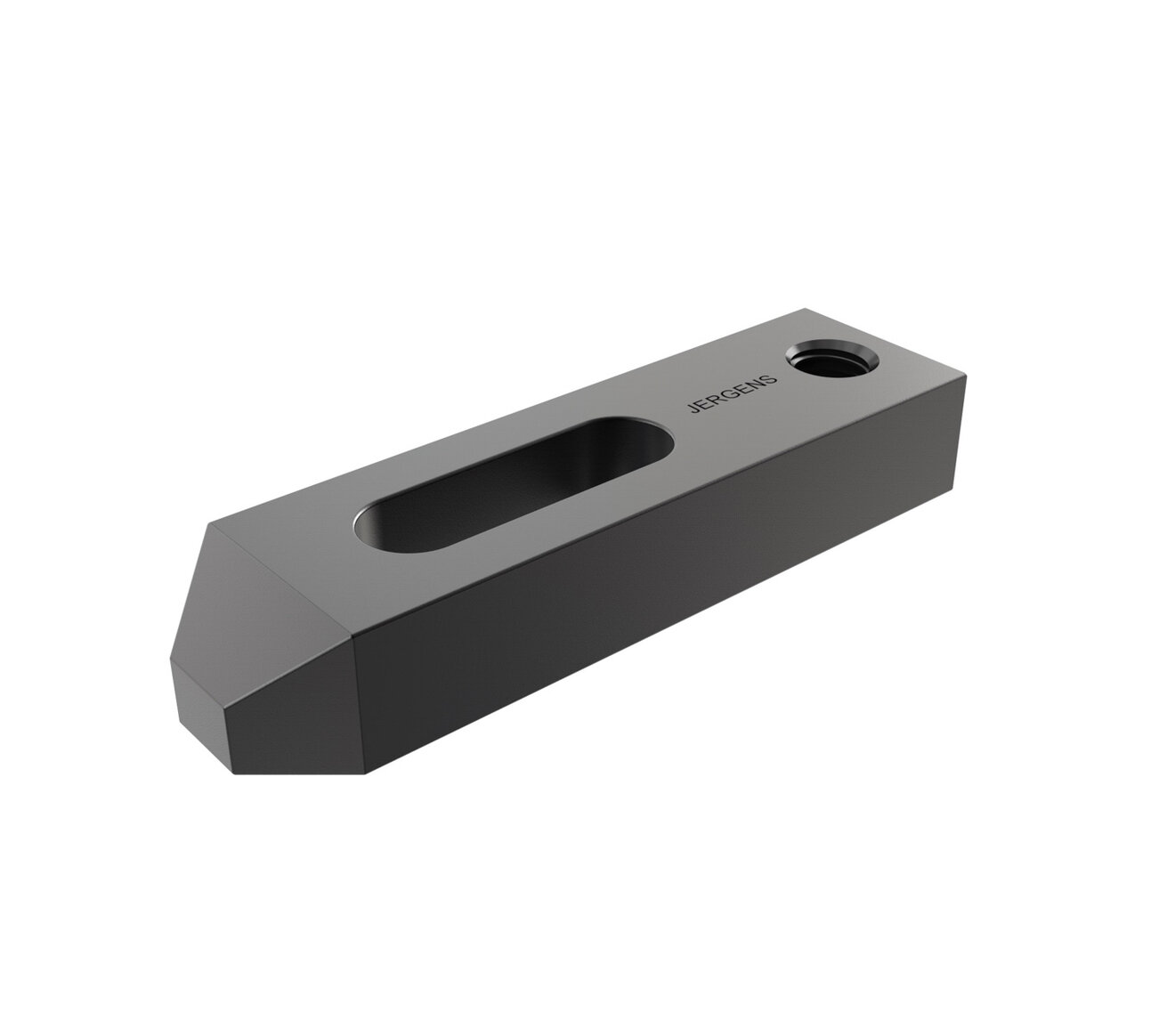

Taper Nose Straps
Jergens Taper Nose Straps are designed to be used with Adjustable Clamp Heels (see Related Products below).
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Thread: UNC-2B
-
Heat Treat: Case Hardened Rockwell 30N Scale 59-69
Taper Nose Straps
Select a part number for CAD drawings, price and stock availability.

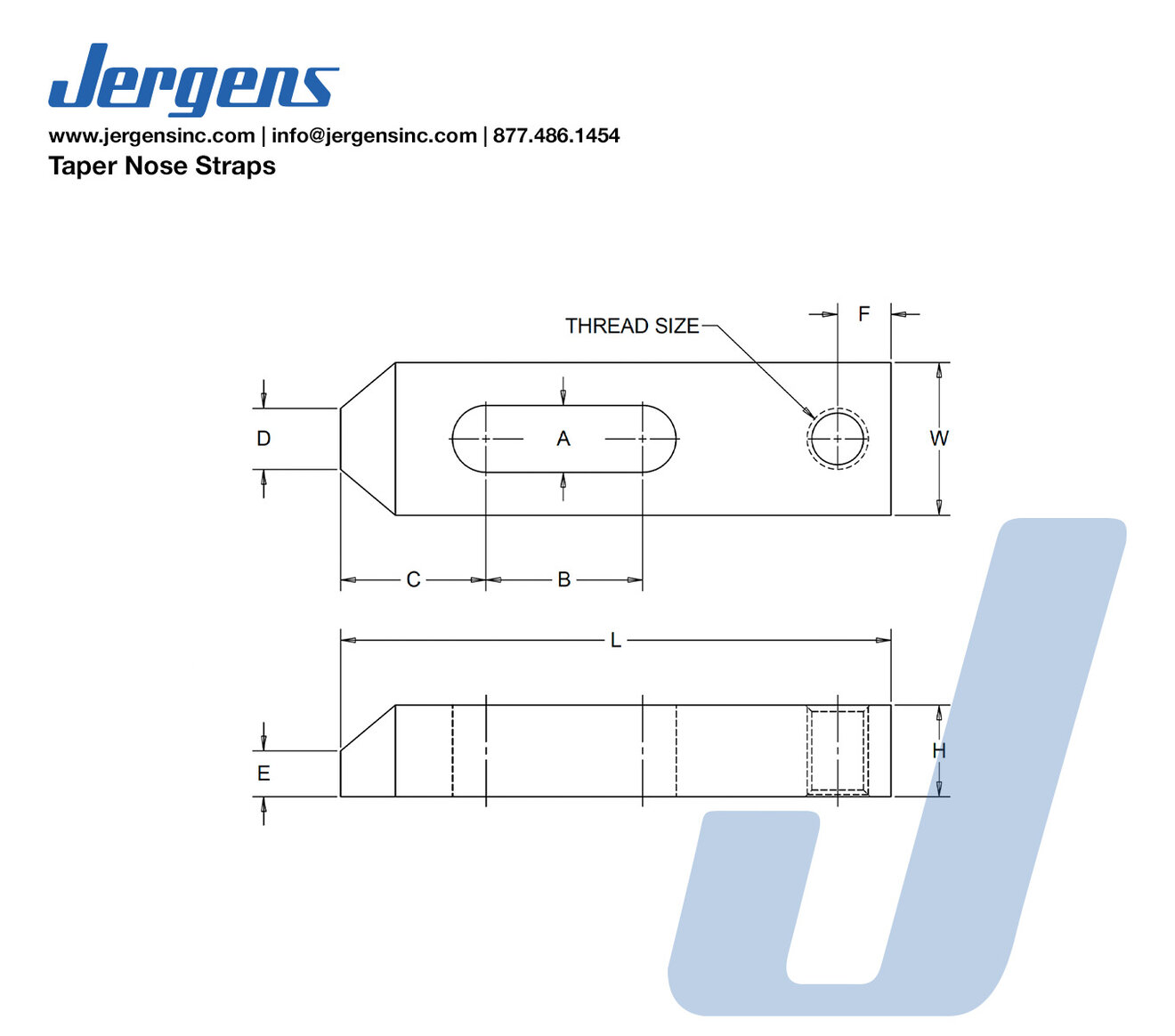

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | Thread Size | W (In) | H (In) | L (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47119 |
|
Inch | 13/32 | 1/2 | 13/16 | 3/8 | 3/16 | 7/16 | 3/8-16 | 1 | 1/2 | 3 | 0.55 |
| 47120 |
|
Inch | 13/32 | 1 | 15/16 | 3/8 | 3/16 | 7/16 | 3/8-16 | 1 1/4 | 5/8 | 4 | 0.75 |
| 47123 |
|
Inch | 13/32 | 1 1/2 | 15/16 | 3/8 | 3/16 | 7/16 | 3/8-16 | 1 1/4 | 5/8 | 5 | 0.90 |
| 47124 |
|
Inch | 17/32 | 1/2 | 1 1/16 | 1/2 | 1/4 | 7/16 | 1/2-13 | 1 1/4 | 5/8 | 3 1/2 | 0.80 |
| 47125 |
|
Inch | 17/32 | 1 1/4 | 1 3/16 | 1/2 | 3/8 | 7/16 | 1/2-13 | 1 1/4 | 3/4 | 4 1/2 | 1.10 |
| 47126 |
|
Inch | 17/32 | 2 | 1 5/16 | 1/2 | 3/8 | 7/16 | 1/2-13 | 1 1/4 | 7/8 | 6 | 1.60 |
| 47127 |
|
Inch | 21/32 | 1/2 | 1 3/16 | 5/8 | 1/4 | 1/2 | 5/8-11 | 1 1/4 | 5/8 | 4 | 1.80 |
| 47128 |
|
Inch | 21/32 | 1 1/4 | 1 3/16 | 5/8 | 3/8 | 1/2 | 5/8-11 | 1 1/2 | 3/4 | 5 | 2.20 |
| 47129 |
|
Inch | 21/32 | 2 | 1 5/16 | 5/8 | 3/8 | 1/2 | 5/8-11 | 1 1/2 | 7/8 | 7 | 3.10 |
| 47130 |
|
Inch | 25/32 | 3/4 | 1 5/16 | 5/8 | 3/8 | 9/16 | 3/4-10 | 1 1/2 | 3/4 | 5 | 2.85 |
| 47131 |
|
Inch | 25/32 | 1 1/2 | 1 1/2 | 5/8 | 3/8 | 9/16 | 3/4-10 | 1 1/2 | 1 | 6 | 3.40 |
| 47132 |
|
Inch | 25/32 | 2 1/4 | 1 5/8 | 5/8 | 3/8 | 9/16 | 3/4-10 | 1 3/4 | 1 1/8 | 8 | 4.70 |
| 47134 |
|
Inch | 1 1/16 | 2 | 2 5/8 | 7/8 | 5/8 | 11/16 | 1-8 | 2 | 1 1/2 | 10 | 9.55 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
Related Products
-
Adjustable Clamp Heels
