Swivel Eyebolts
Jergens Swivel Eyebolts have a full swivel and pivoting action that allows for the flipping and turning of the part without unhooking. Its swivel and pivot action eliminates the bending problem of standard industry eyebolts. Its patented tamper-resistant design is ideal for permanent mounting on OEM applications or on molds, dies, and fixtures.
|
Features, Benefits, & Product Specifications:
|
|
Note(s):
-

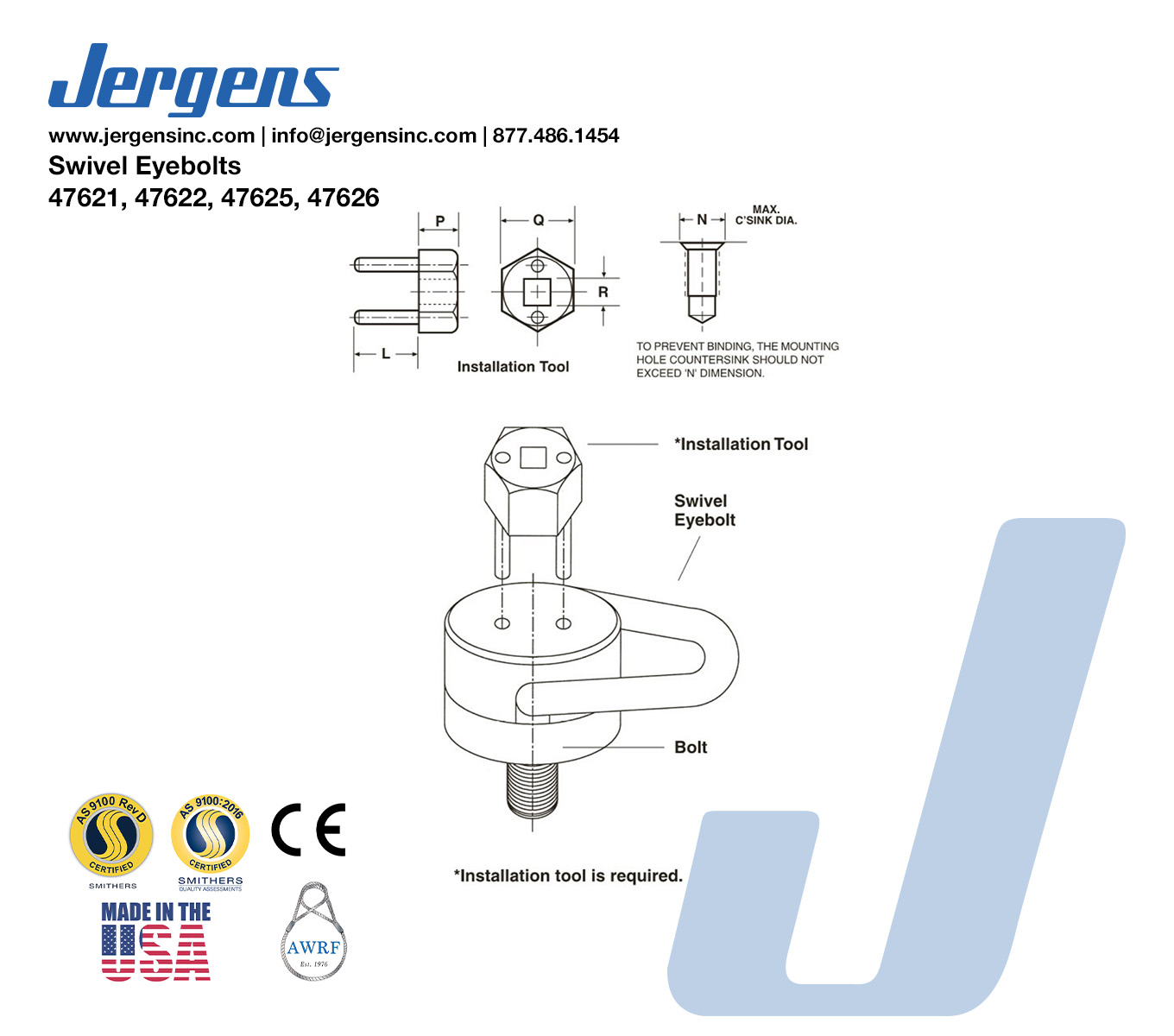

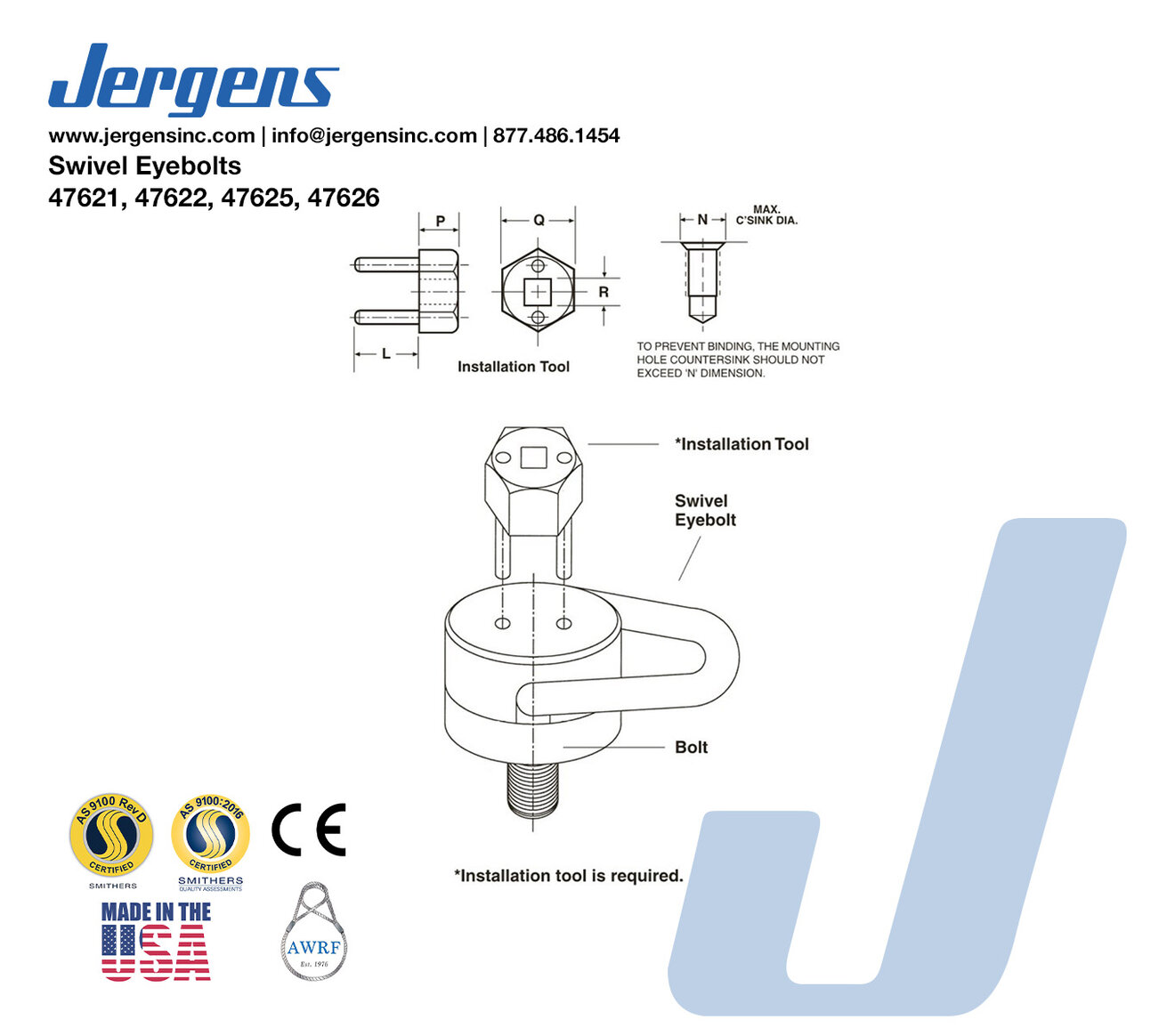

Use Installation Tool Part No. 47641 for:
- Small Swivel Eyebolts Part No.'s 47621, 47622, 47671, & 47672
-
Use Installation Tool Part No. 47643 for:
- Large Swivel Eyebolts Part No.'s 47625, 47626, 47675, & 47676
-
Rated load may be reduced at 90° from vertical:
- Part No.'s 47621, 47631, 47622, 47632, 47671, & 47681
Swivel Eyebolts
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Thread Size | Load Capacity | Size | B (mm) | Thread Length C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | Installation Tool Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47621 |
|
|||||||||||||||
| 47622 |
|
|||||||||||||||
| 47625 |
|
|||||||||||||||
| 47626 |
|
|||||||||||||||
| 47671 |
|
Metric | M10 x 1.50 | 500 kgs | Small | 27.8 | 14.6 | 19.1 | 1.2 | 17.9 | 7.9 | 44.5 | 12.7 | 50.8 | 66.7 | 47641 |
| 47672 |
|
Metric | M12 x 1.75 | 700 kgs | Small | 27.8 | 19.1 | 19.1 | 1.2 | 17.9 | 7.9 | 44.5 | 12.7 | 50.8 | 66.7 | 47641 |
| 47675 |
|
Metric | M16 x 2.0 | 1500 kgs | Large | 38.5 | 23.8 | 22.2 | 0.8 | 22.6 | 12.7 | 63.5 | 70 | 93 | 97 | 47643 |
| 47676 |
|
Metric | M20 x 2.5 | 2000 kgs | Large | 38.5 | 30.2 | 25.4 | 0.8 | 22.6 | 12.7 | 63.5 | 70 | 93 | 97 | 47643 |
| Part Number | CAD | Unit | Thread Size | Load Capacity | Size | B (In) | Thread Length C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) | Installation Tool Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47621 |
|
Inch | 3/8-16 In | 1000 lbs | Small | 1 3/32 | 9/16 | 3/4 | 3/64 | 45/64 | 5/16 | 1 3/4 | 1/2 | 2 | 2 5/8 | 47641 |
| 47622 |
|
Inch | 1/2-13 In | 2000 lbs | Small | 1 3/32 | 3/4 | 3/4 | 3/64 | 45/64 | 5/16 | 1 3/4 | 1/2 | 2 | 2 5/8 | 47641 |
| 47625 |
|
Inch | 5/8-11 In | 3000 lbs | Large | 1 33/64 | 15/16 | 7/8 | 1/32 | 57/64 | 1/2 | 2 1/2 | 2 3/4 | 3 1/2 | 3 13/16 | 47643 |
| 47626 |
|
Inch | 3/4-10 In | 4000 lbs | Large | 1 33/64 | 1 1/8 | 1 | 1/32 | 57/64 | 1/2 | 2 1/2 | 2 3/4 | 3 1/2 | 3 13/16 | 47643 |
