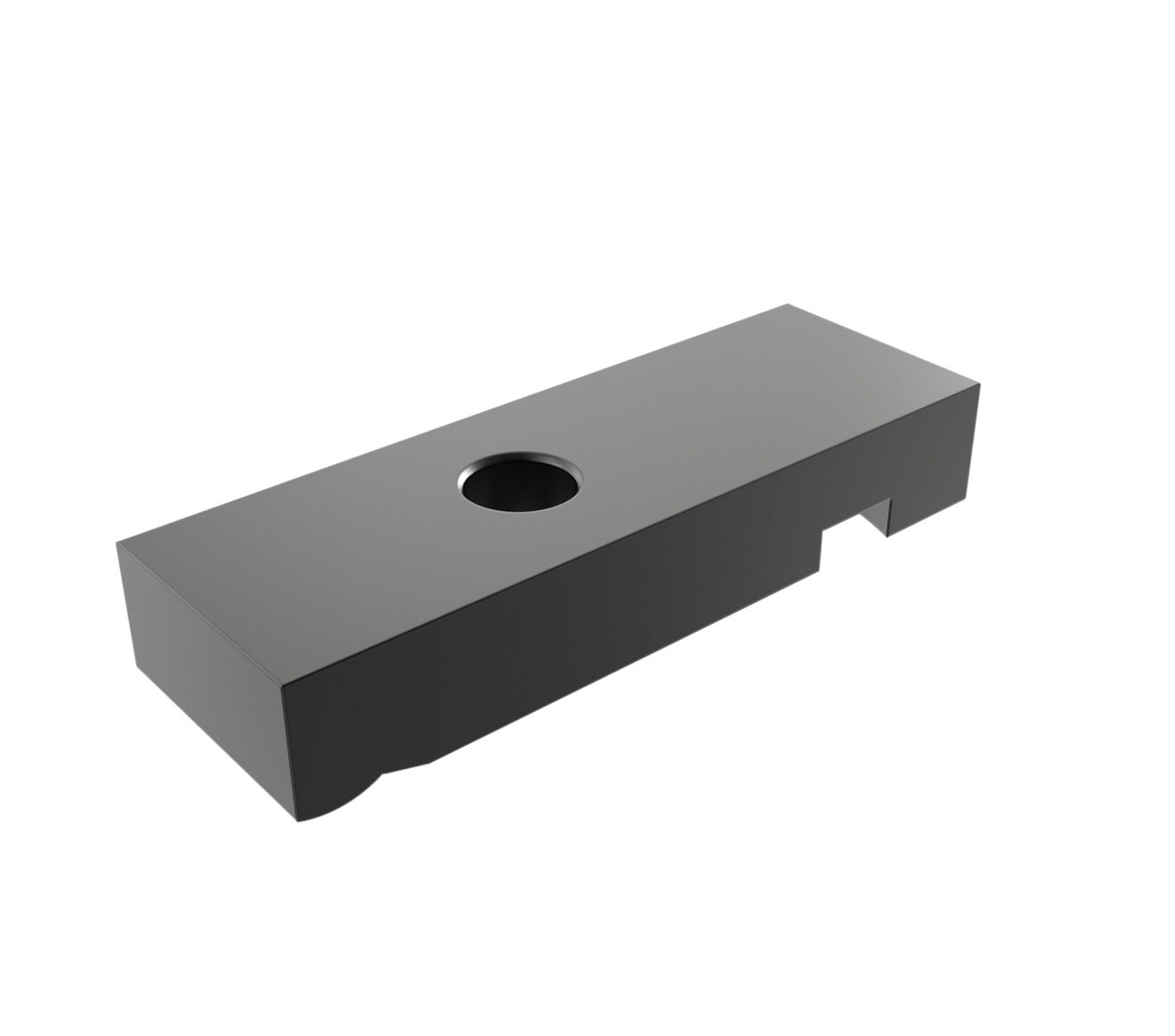

Swing Style Radius Nose Straps
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened Rockwell 30N Scale 59-69
Swing Style Radius Nose Straps
Select a part number for CAD drawings, price and stock availability.

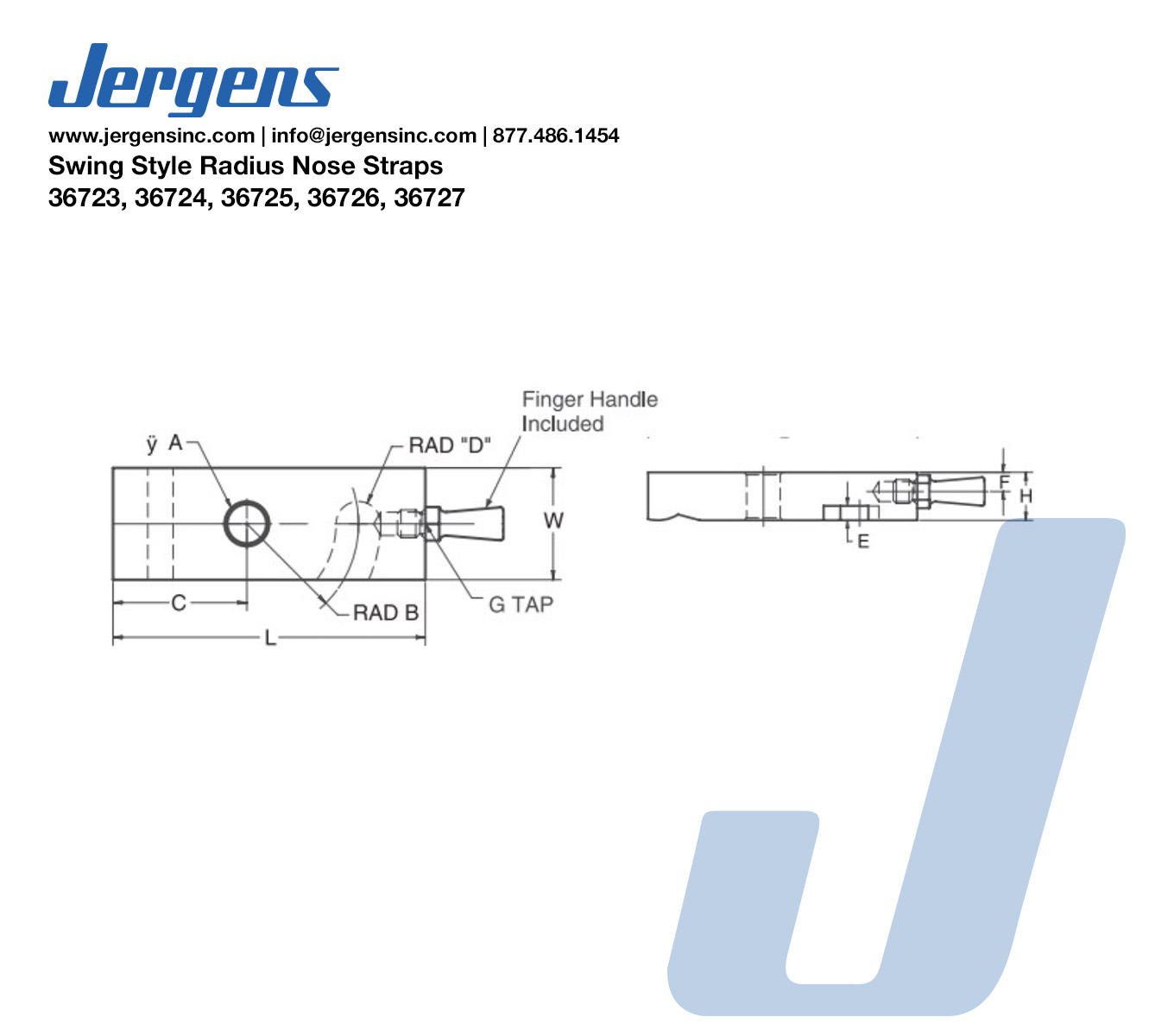

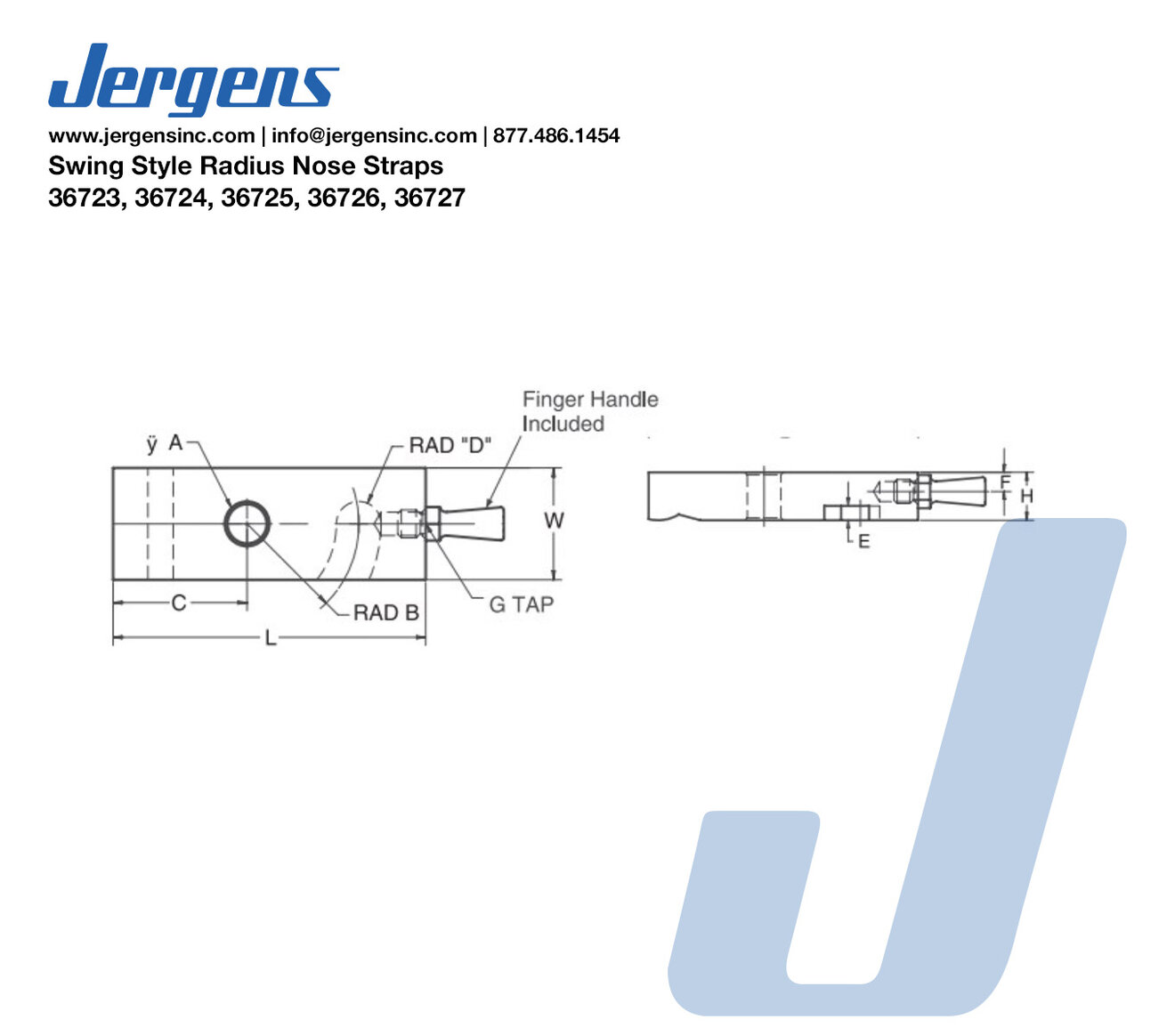

| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G | W (In) | H (In) | L (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36723 |
|
Inch | 1/4 | 5/16 | 11/16 | 1 | 1/8 | 1/8 | - | - | 5/8 | 3/8 | 2 | 0.09 |
| 36724 |
|
Inch | 3/8 | 7/16 | 1 1/4 | 1 1/2 | 1/4 | 3/16 | 1/4 | 5/16-18 | 1 1/4 | 5/8 | 3 1/2 | 0.61 |
| 36725 |
|
Inch | 1/2 | 9/16 | 1 7/8 | 1 3/16 | 1/4 | 1/4 | 1/4 | 5/16-18 | 1 1/2 | 3/4 | 4 1/2 | 1.12 |
| 36726 |
|
Inch | 5/8 | 11/16 | 2 3/16 | 2 1/16 | 1/4 | 1/4 | 1/4 | 5/16-18 | 1 3/4 | 7/8 | 5 | 1.75 |
| 36727 |
|
Inch | 3/4 | 13/16 | 2 3/16 | 2 1/16 | 1/4 | 1/4 | 1/4 | 5/16-18 | 1 3/4 | 1 | 5 | 2 |
