Swing Bolts
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Materials: Available in 4140 Steel and 303 Stainless Steel
-
Finish: Black Oxide
-
Heat Treat: RC 36-40
-
Thread: Class 2A-UNC
Note(s):
Swing Bolts are not to be used for lifting.
Documents
Swing Bolts

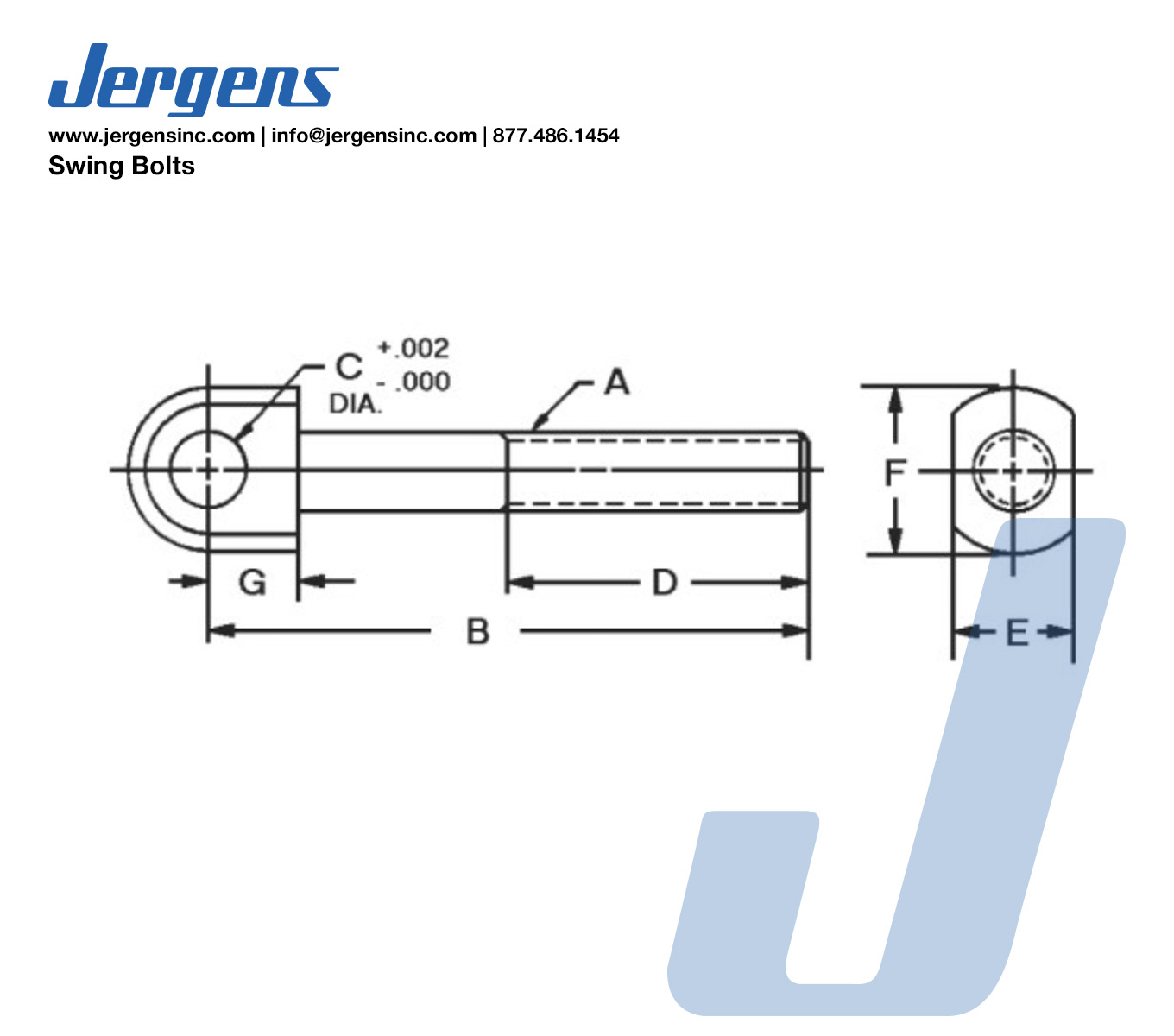

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Material | Thread Size A | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) |
|---|---|---|---|---|---|---|---|---|---|---|
| 29501 |
|
Inch | Steel | 3/8-16 | 2 1/2 | 0.375 | 1 3/8 | 1/2 | 3/4 | 3/8 |
| 29502 |
|
Inch | Steel | 3/8-16 | 3 1/4 | 0.375 | 1 3/4 | 1/2 | 3/4 | 3/8 |
| 29504 |
|
Inch | Steel | 1/2-13 | 3 1/8 | 0.500 | 1 3/4 | 5/8 | 1 | 7/16 |
| 29505 |
|
Inch | Steel | 1/2-13 | 4 1/8 | 0.500 | 2 1/4 | 5/8 | 1 | 7/16 |
| 29507 |
|
Inch | Steel | 5/8-11 | 3 1/2 | 0.625 | 1 3/4 | 3/4 | 1 1/8 | 1/2 |
| 29508 |
|
Inch | Steel | 5/8-11 | 4 3/4 | 0.625 | 2 1/2 | 3/4 | 1 1/8 | 1/2 |
| 29509 |
|
Inch | Steel | 3/4-10 | 4 3/8 | 0.750 | 2 1/2 | 7/8 | 1 3/8 | 11/16 |
| 29510 |
|
Inch | Steel | 3/4-10 | 6 1/2 | 0.750 | 3 1/4 | 7/8 | 1 3/8 | 11/16 |
| 29513 |
|
Inch | Steel | 1/2-13 | 2 5/8 | 0.375 | 1 1/2 | 5/8 | 1 | 7/16 |
| 29516 |
|
Inch | Steel | 5/8-11 | 3 3/4 | 0.500 | 2 | 3/4 | 1 1/8 | 1/2 |
| 29601 |
|
Inch | Stainless Steel | 3/8-16 | 2 1/2 | 3/8 | 1 3/8 | 1/2 | 3/4 | 1/2 |
| 29602 |
|
Inch | Stainless Steel | 3/8-16 | 3 1/2 | 3/8 | 2 | 1/2 | 3/4 | 1/2 |
| 29603 |
|
Inch | Stainless Steel | 1/2-13 | 3 1/8 | 1/2 | 1 5/8 | 5/8 | 1 | 5/8 |
| 29604 |
|
Inch | Stainless Steel | 1/2-13 | 4 1/8 | 1/2 | 2 1/2 | 5/8 | 1 | 5/8 |
| 29605 |
|
Inch | Stainless Steel | 5/8-11 | 3 1/2 | 5/8 | 1 5/8 | 3/4 | 1 1/4 | 3/4 |
| 29606 |
|
Inch | Stainless Steel | 5/8-11 | 4 3/4 | 5/8 | 2 1/2 | 3/4 | 1 1/4 | 3/4 |
