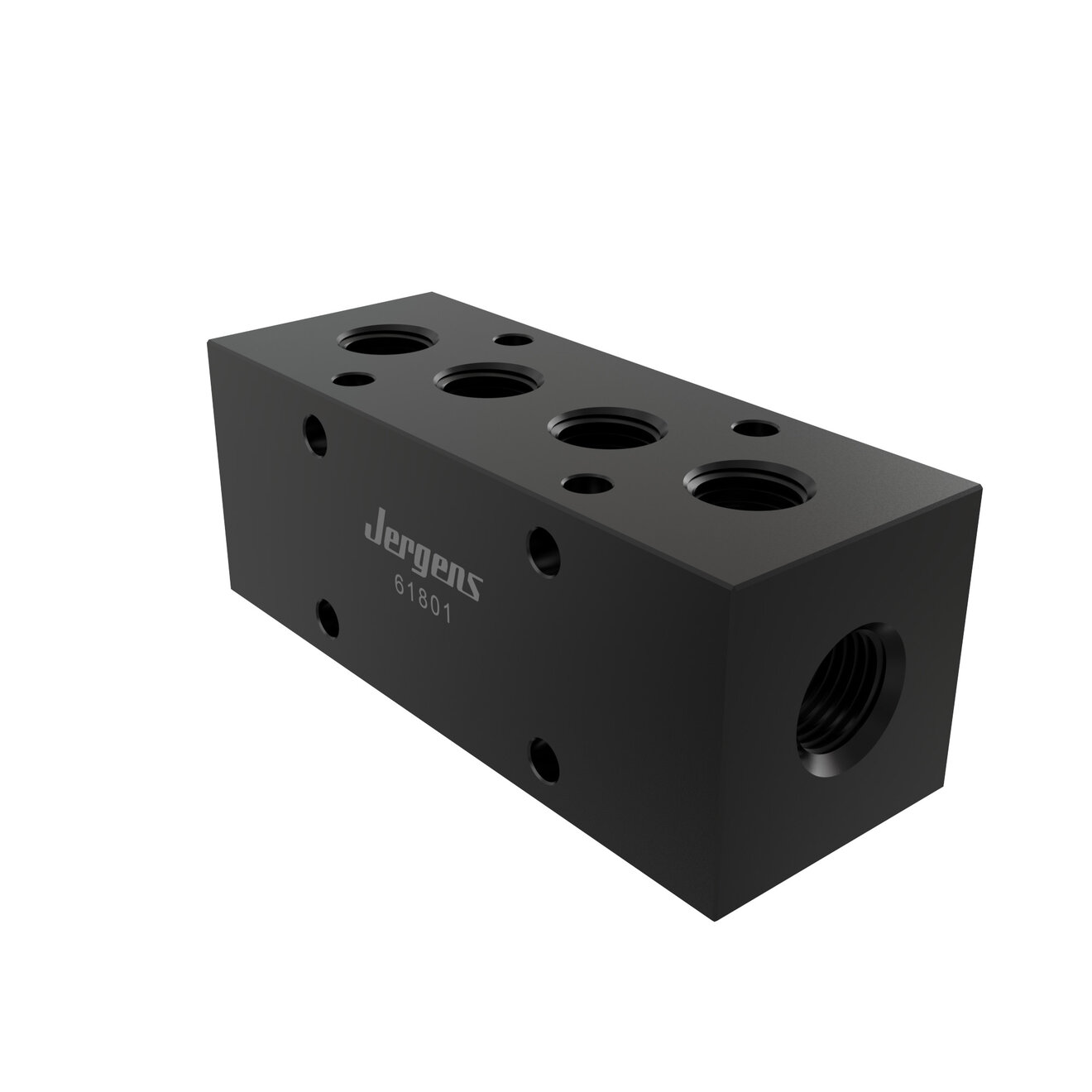

Strip Manifolds
Note: Maximum operating pressure is 3000 psi for all aluminum manifolds.
Documents
Strip Manifolds

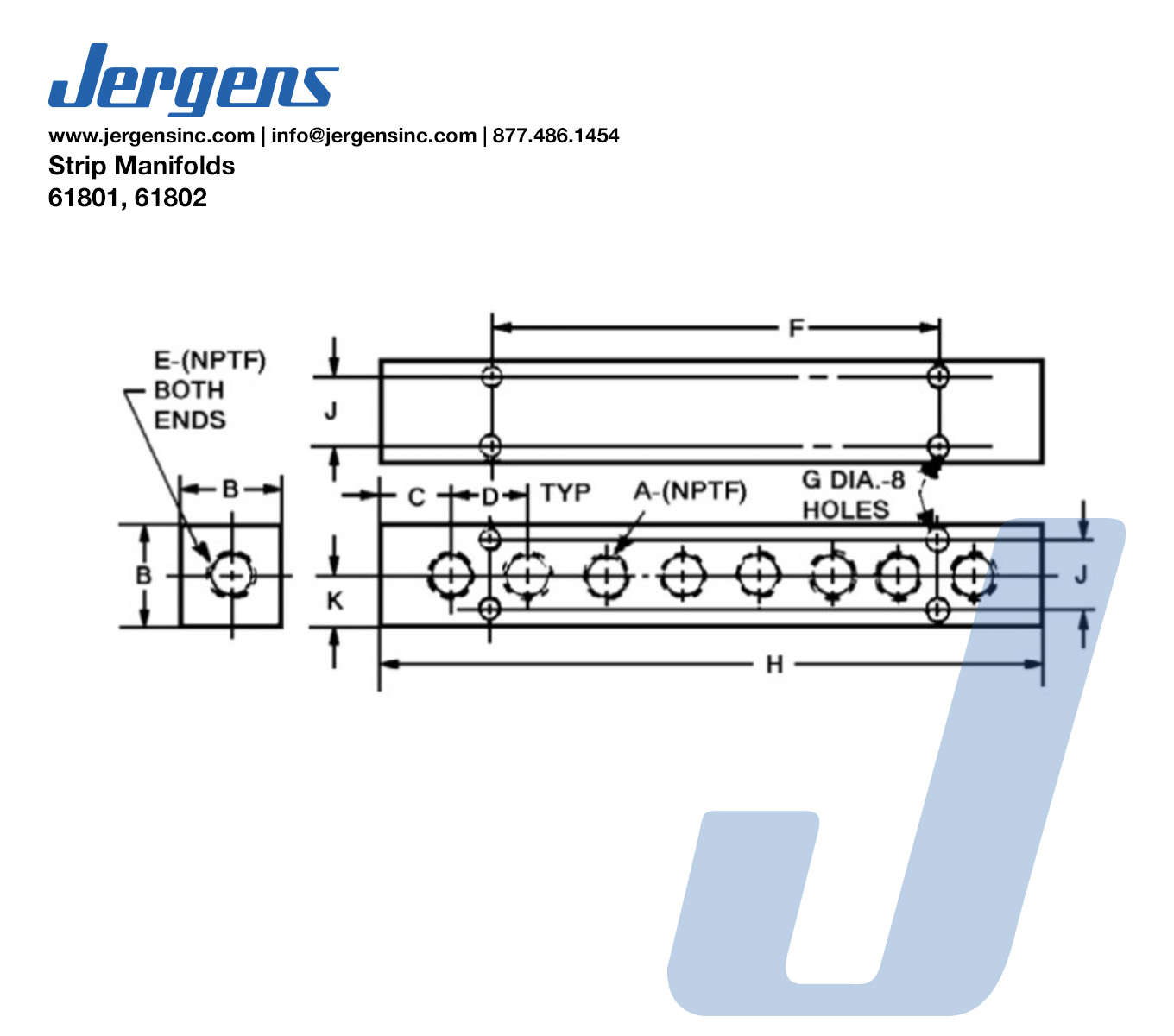

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Number of Side Ports | Ports A | B | C | D | End Ports E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61801 |
|
Inch | 4 | 1/4 | 1 1/2 | 5/8 | 7/8 | 3/8 | 1 3/4 | 13/64 | 3 7/8 | 1 1/64 | 3/4 |
| 61802 |
|
Inch | 8 | 1/4 | 1 1/2 | 5/8 | 78 | 3/8 | 5 1/4 | 13/64 | 7 3/8 | 1 1/64 | 3/4 |
