Strap Pads
Jergens Strap Pads are designed to protect the workpiece when using our Strap Clamp Assemblies.
Features, Benefits, & Product Specifications:
-
Materials & Finishes:
-
Steel Strap Pads: Low Carbon Steel, Black Oxide
-
Plastic Strap Pads: Paper-Filled Bakelite
-
Brass Strap Pads: Brass
-
-
Heat Treat: Steel Strap Pads are Case Hardened 74-77 R30N
Documents

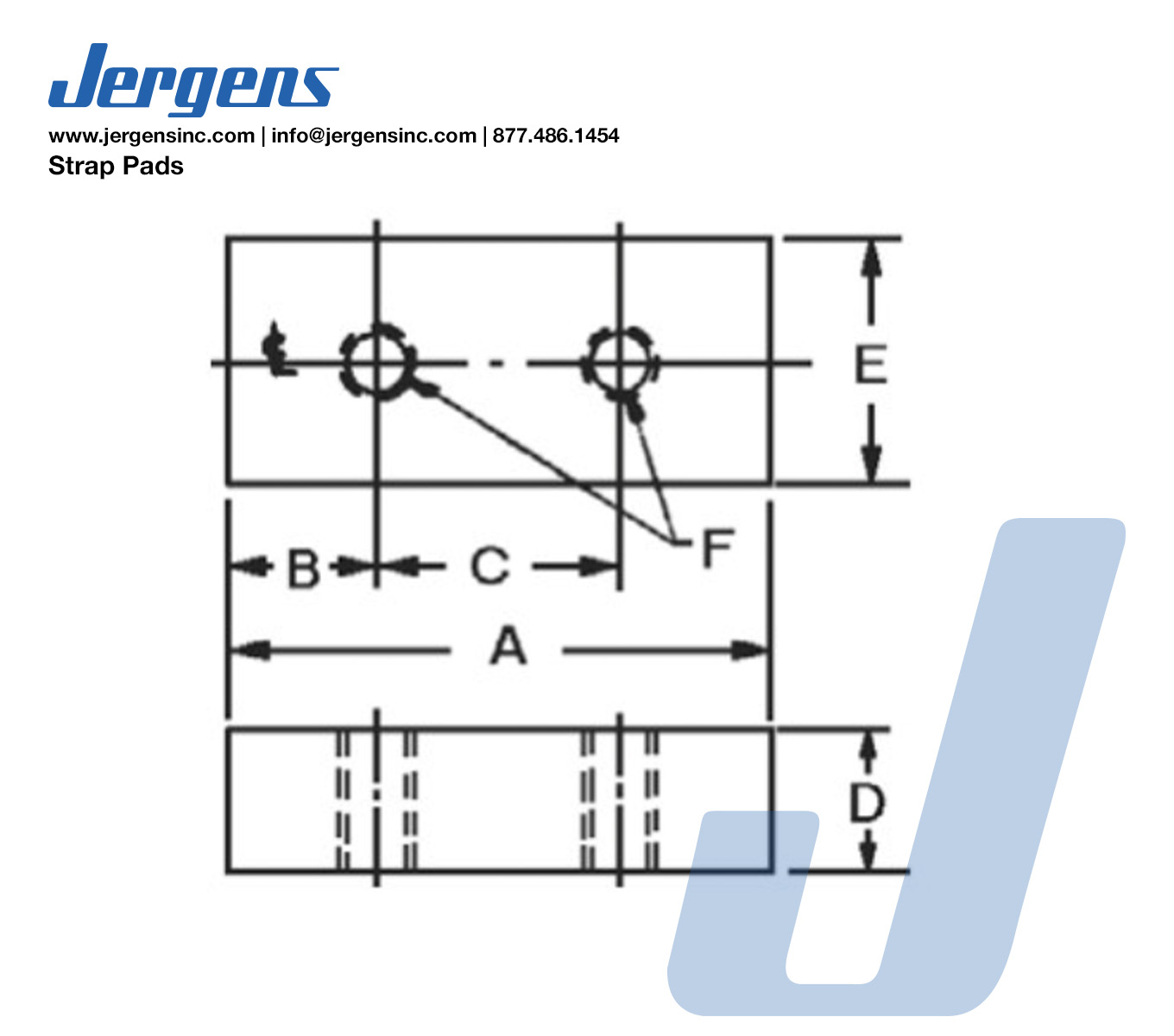

Strap Pad_LineArt
Strap Pads
| Part Number | CAD | Unit | Material | A (In) | B (In) | C (In) | D (in) | E (in) | F | Weight 10 Pieces (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 17101 |
|
Inch | Steel | 5/8 | 9/64 | 11/32 | 1/8 | 1/4 | 5-40 | 0.05 | |
| 17102 |
|
Inch | Plastic | 5/8 | 9/64 | 11/32 | 1/8 | 1/4 | 5-40 | 0.02 | |
| 17103 |
|
Inch | Brass | 5/8 | 9/64 | 11/32 | 1/8 | 1/4 | 5-40 | 0.06 | |
| 17104 |
|
Inch | Steel | 7/8 | 3/16 | 1/2 | 3/16 | 3/8 | 8-32 | 0.16 | |
| 17105 |
|
Inch | Plastic | 7/8 | 3/16 | 1/2 | 3/16 | 3/8 | 8-32 | 0.03 | |
| 17106 |
|
Inch | Brass | 7/8 | 3/16 | 1/2 | 3/16 | 3/8 | 8-32 | 0.18 | |
| 17107 |
|
Inch | Steel | 1 1/4 | 5/16 | 5/8 | 1/4 | 1/2 | 10-24 | 0.40 | |
| 17108 |
|
Inch | Plastic | 1 1/4 | 5/16 | 5/8 | 1/4 | 1/2 | 10-24 | 0.08 | |
| 17109 |
|
Inch | Brass | 1 1/4 | 5/16 | 5/8 | 1/4 | 1/2 | 10-24 | 0.43 | |
| 17110 |
|
Inch | Steel | 1 1/2 | 3/8 | 3/4 | 3/8 | 5/8 | 1/4-20 | 0.90 | |
| 17111 |
|
Inch | Plastic | 1 1/2 | 3/8 | 3/4 | 3/8 | 5/8 | 1/4-20 | 0.16 | |
| 17112 |
|
Inch | Brass | 1 1/2 | 3/8 | 3/4 | 3/8 | 5/8 | 1/4-20 | 0.93 | |
| 17113 |
|
Inch | Steel | 1 3/4 | 1/2 | 3/4 | 1/2 | 3/4 | 1/4-20 | 1.50 |
