Steel Shaft Collars
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Zinc-Plated
-
Set screws are furnished
-
Tolerances on I.D.: +0.005, -0.000

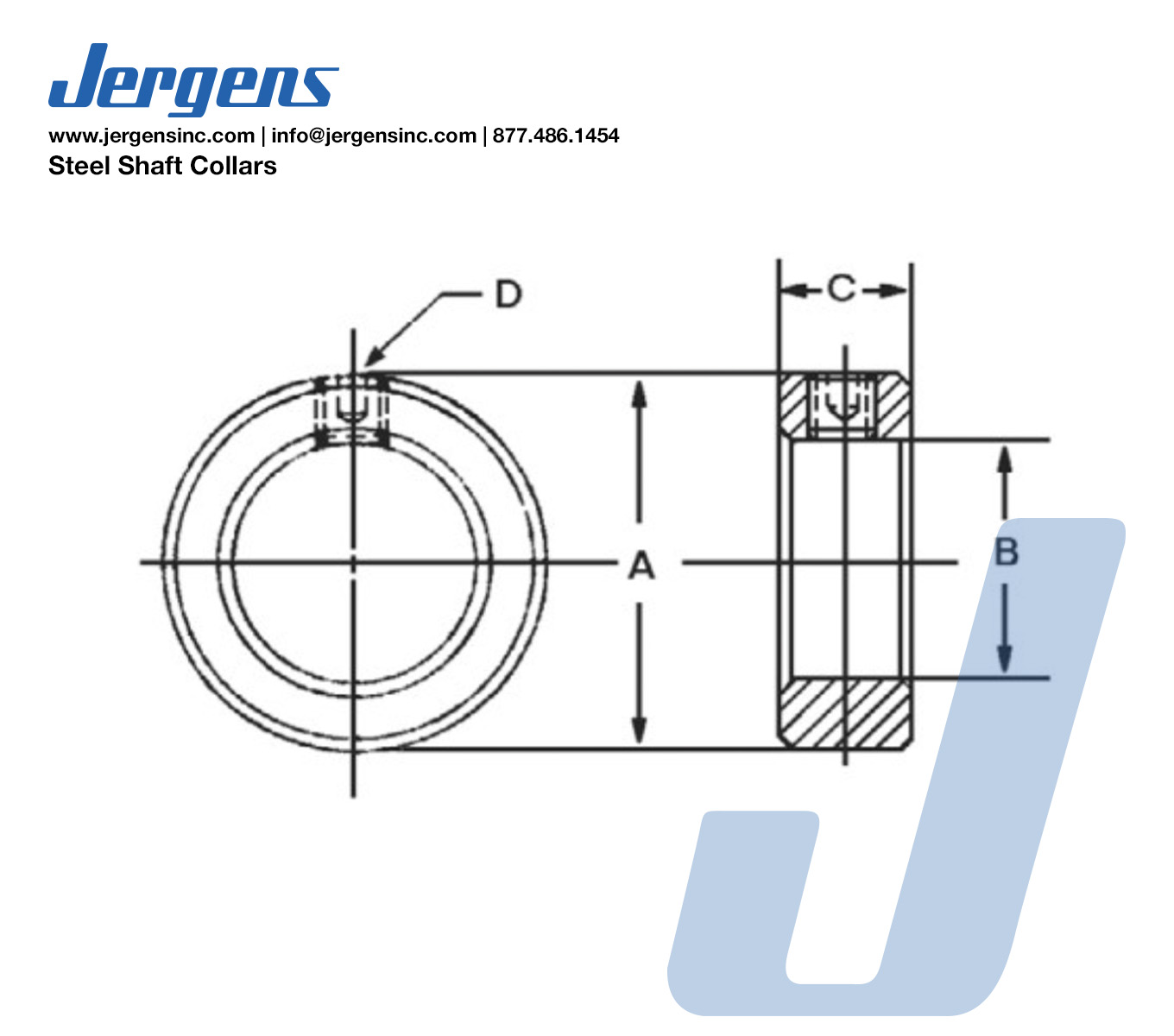

Steel Shaft Collar_LineArt
Steel Shaft Collars
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D | |
|---|---|---|---|---|---|---|---|
| 40101 | Inch | 5/8 | 1/4 | 3/8 | 10-32 | ||
| 40102 | Inch | 5/8 | 5/16 | 3/8 | 10-32 | ||
| 40103 | Inch | 3/4 | 3/8 | 7/16 | 1/4-28 | ||
| 40104 | Inch | 7/8 | 1/2 | 1/2 | 1/4-28 | ||
| 40105 | Inch | 1-1/8 | 5/8 | 1/2 | 5/16-18 | ||
| 40106 | Inch | 1-1/4 | 3/4 | 1/2 | 5/16-18 | ||
| 40107 | Inch | 1 3/8 | 7/8 | 9/16 | 5/16-18 | ||
| 40108 | Inch | 1 1/2 | 1 | 9/16 | 5/16-18 | ||
| 40109 | Inch | 1-3/4 | 1-1/8 | 9/16 | 5/16-18 | ||
| 40110 | Inch | 2 | 1 1/4 | 11/16 | 3/8-16 | ||
| 40114 | Inch | 3 | 2 | 7/8 | 1/2-13 |
