Steel Knurled Control Knobs
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
- Material: 12L14 Carbon Steel
- Finish: Black Oxide
Steel Knurled Control Knobs
Select a part number for CAD drawings, price and stock availability.

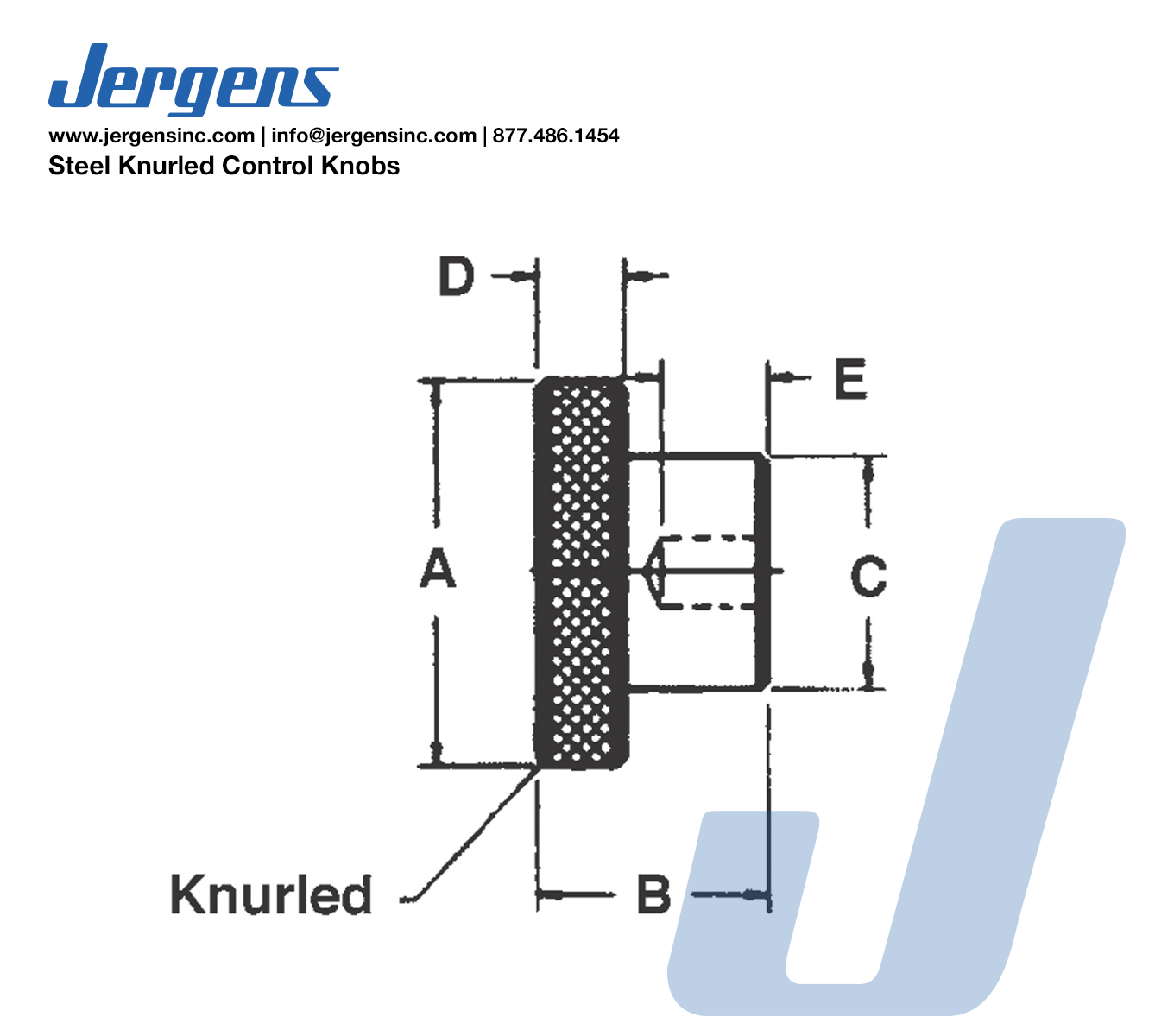

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | Hole Diameter |
|---|---|---|---|---|---|---|---|---|
| 21200 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 3/16 Ream |
| 21201 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 10-24 Tap |
| 21202 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 10-24 Thru Hole |
| 21203 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 1/4 Ream |
| 21204 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 1/4-20 Tap |
| 21205 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/8 | 1/4-20 Thru Hole |
| 21206 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 1/4 Ream |
| 21207 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 1/4-20 Tap |
| 21208 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 1/4-20 Thru Hole |
| 21209 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 5/16 Ream |
| 21210 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 5/16-18 Tap |
| 21211 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1/2 | 5/16-18 Thru Hole |
| 21212 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 5/16 Ream |
| 21213 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 5/16-18 Tap |
| 21214 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 5/16-18 Thru Hole |
| 21215 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 3/8 Ream |
| 21216 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 3/8-16 Tap |
| 21217 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 5/8 | 3/8-16 Thru Hole |
| 21218 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 3/8 Ream |
| 21219 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 3/8-16 Tap |
| 21220 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 3/8-16 Thru Hole |
| 21221 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 1/2 Ream |
| 21222 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 1/2-13 Tap |
| 21223 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 5/8 | 1/2-13 Thru Hole |
| 21224 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1/2 Ream |
| 21225 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1/2-13 Tap |
| 21226 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 1/2-13 Thru Hole |
| 21228 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 5/8-11 Tap |
| 21229 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3/4 | 5/8-11 Thru Hole |
| 21230 |
|
Inch | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 5/8 Ream |
| 21231 |
|
Inch | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 5/8-11 Tap |
| 21232 |
|
Inch | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 5/8-11 Thru Hole |
| 21233 |
|
Inch | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 3/4 Ream |
| 21234 |
|
Inch | 3 | 1 3/4 | 1 3/4 | 5/8 | 1 | 3/4-10 Tap |
