Steel Knurled Control Knob with Stud
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
-
Material: 12L14 Carbon Steel
-
Finish: Black Oxide
Steel Knurled Control Knob with Stud
Select a part number for CAD drawings, price and stock availability.

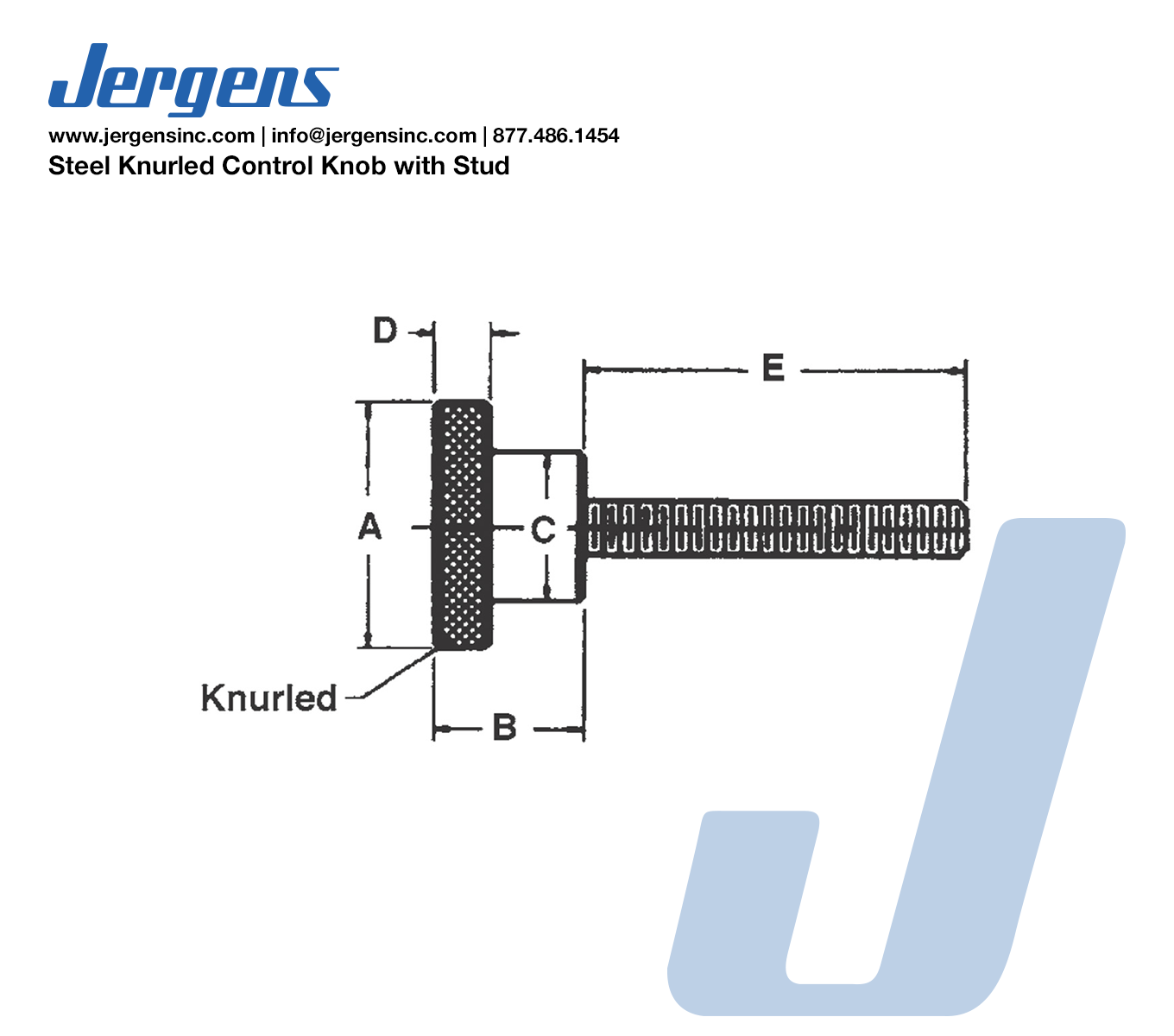

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | Stud Thread |
|---|---|---|---|---|---|---|---|---|
| 21240 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 1/2 | 10-24 |
| 21241 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 1 | 10-24 |
| 21242 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 3/4 | 1/4-20 |
| 21243 |
|
Inch | 3/4 | 5/8 | 1/2 | 1/4 | 1 1/4 | 1/4-20 |
| 21244 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 1/4-20 |
| 21245 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 1 3/4 | 5/16-18 |
| 21246 |
|
Inch | 1 | 3/4 | 5/8 | 1/4 | 3 | 5/16-18 |
| 21247 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 5/16-18 |
| 21248 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 5/16-18 |
| 21249 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 1 3/4 | 3/8-16 |
| 21250 |
|
Inch | 1 1/2 | 1 | 3/4 | 5/16 | 3 | 3/8-16 |
| 21251 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 3/8-16 |
| 21252 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 3 | 3/8-16 |
| 21253 |
|
Inch | 2 | 1 1/8 | 1 | 3/8 | 1 3/4 | 1/2-13 |
| 21254 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 1/2-13 |
| 21255 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 3 | 1/2-13 |
| 21256 |
|
Inch | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1 3/4 | 5/8-11 |
