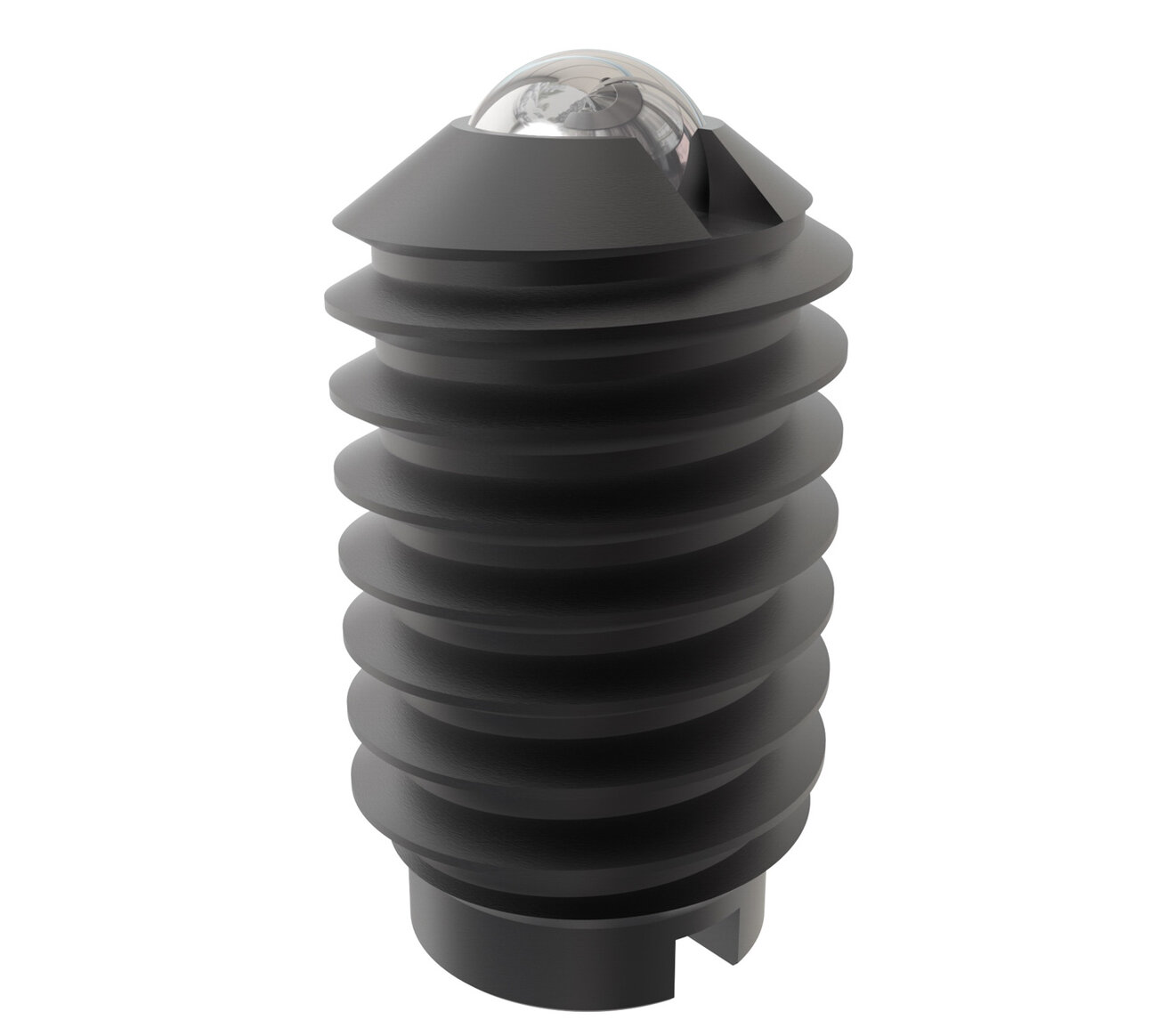

Steel Ball Plungers - Fine Thread (UNF)

Jergens Ball Plungers are made under extremely accurate machine controls and rigid inspection procedures. Accurate spring alignment is maintained by using a stainless rivet with a long shank on larger sizes of our Ball Plungers. This precisely positions the spring for more accurate ball travel and provides positive control of spring pressure. By minimizing the lining pin head thickness, we are able to use the longest possible springs.
Features & Benefits:
  • Positive control of spring pressure
  • Less fatigue and longer spring life by minimizing lining pin head thickness
  • Uniform ball projection keeps variances within ±0.005".
  • Conforms to TCMA dimensional standards
  • Patch-style locking element
  • Special materials and sizes available upon requests
Material Specifications:
  • Body Material: Low Carbon Steel
  • Ball Material: 440 Stainless Steel
  • Spring Material: 17-7 PH Stainless Steel
  • Body Finish: Black Oxide
  • Thread: Inch: 2A-UNF
Note(s):
For easy insertion of Ball Plungers with Locking Elements, the tapped hole should be countersunk at least 0.030"-0.045" (0.76mm-1.14mm) larger than the major diameter of the plunger.

Documents

Steel Ball Plungers - Fine Thread (UNF)

Select a part number for CAD drawings, price and stock availability.

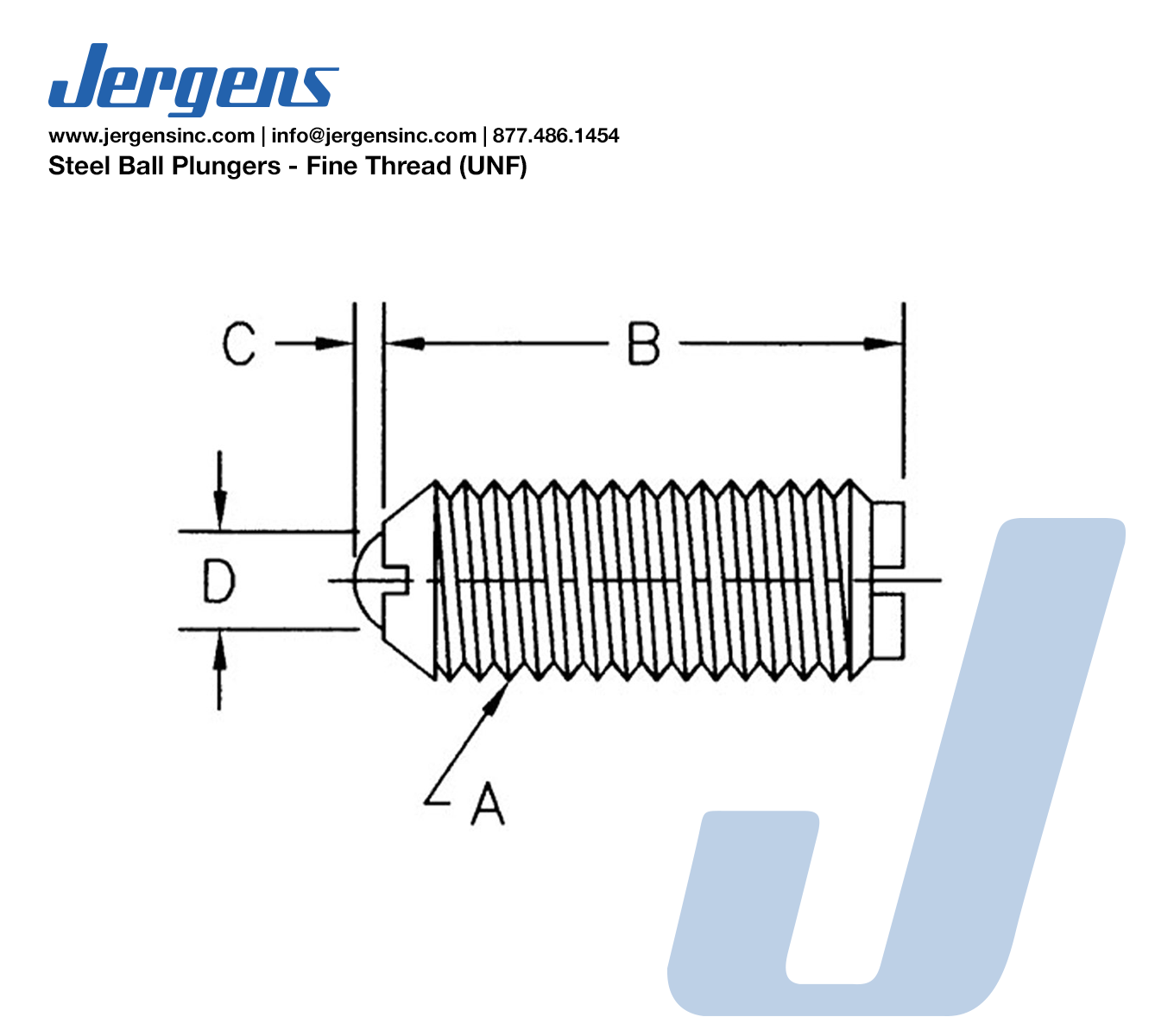

Part Number CAD Unit Thread Size A Initial Force (lbs) Final Force (lbs) B (In) C (In) D (In) Locking Element
10703 icon_cad Inch 1/4-28 2.0 4.0 17/32 0.035 0.125 Yes
10704 icon_cad Inch 1/4-28 4.0 12.0 17/32 0.035 0.125 Yes
10705 icon_cad Inch 5/16-24 2.0 4.5 37/64 0.040 0.156 Yes
10706 icon_cad Inch 5/16-24 6.0 17.0 37/64 0.040 0.156 Yes
10707 icon_cad Inch 3/8-24 2.5 5.0 5/8 0.048 0.187 Yes
10708 icon_cad Inch 3/8-24 6.0 21.0 5/8 0.048 0.187 Yes
10709 icon_cad Inch 1/2-20 3.0 6.0 3/4 0.072 0.281 Yes
10710 icon_cad Inch 1/2-20 6.0 30.0 3/4 0.072 0.281 Yes
10712 icon_cad Inch 1/4-28 3.0 7.0 17/32 0.035 0.125 Yes
10713 icon_cad Inch 5/16-24 4.0 9.0 37/64 0.040 0.156 Yes
10714 icon_cad Inch 3/8-24 5.0 10.0 5/8 0.048 0.187 Yes
10715 icon_cad Inch 1/2-20 6.0 12.0 3/4 0.072 0.281 Yes
10723 icon_cad Inch 1/4-28 2.0 4.0 17/32 0.035 0.125 No
10724 icon_cad Inch 1/4-28 4.0 12.0 17/32 0.035 0.125 No
10725 icon_cad Inch 5/16-24 2.0 4.5 37/64 0.040 0.156 No
10726 icon_cad Inch 5/16-24 6.0 17.0 37/64 0.040 0.156 No
10727 icon_cad Inch 3/8-24 2.5 5.0 5/8 0.048 0.187 No
10728 icon_cad Inch 3/8-24 6.0 21.0 5/8 0.048 0.187 No
10729 icon_cad Inch 1/2-20 3.0 6.0 3/4 0.072 0.281 No
10730 icon_cad Inch 1/2-20 6.0 30.0 3/4 0.072 0.281 No
10732 icon_cad Inch 1/4-28 3.0 7.0 17/32 0.035 0.125 No
10733 icon_cad Inch 5/16-24 4.0 9.0 37/64 0.040 0.156 No
10734 icon_cad Inch 3/8-24 5.0 10.0 5/8 0.048 0.187 No
10735 icon_cad Inch 1/2-20 6.0 12.0 3/4 0.072 0.281 No
10801 icon_cad Inch 10-32 0.50 1.50 33/64 0.025 0.093 No
10802 icon_cad Inch 10-32 1.50 3.00 33/64 0.025 0.093 No
10803 icon_cad Inch 10-32 2.00 5.00 33/64 0.025 0.093 No
10826 icon_cad Inch 4-48 0.12 0.50 3/16 0.020 0.062 No
10828 icon_cad Inch 6-40 0.50 1.00 5/16 0.023 0.078 No
10829 icon_cad Inch 8-36 0.50 1.25 11/32 0.025 0.093 No
10901 icon_cad Inch 10-32 0.50 1.50 33/64 0.025 0.093 Yes
10902 icon_cad Inch 10-32 1.50 3.00 33/64 0.025 0.093 Yes
10903 icon_cad Inch 10-32 2.00 5.00 33/64 0.025 0.093 Yes
10926 icon_cad Inch 4-48 0.12 0.50 3/16 0.020 0.062 Yes
10928 icon_cad Inch 6-40 0.50 1.00 5/16 0.023 0.078 Yes
10929 icon_cad Inch 8-36 0.50 1.25 11/32 0.025 0.093 Yes
