Standard Round Stainless Steel Pull Dowels

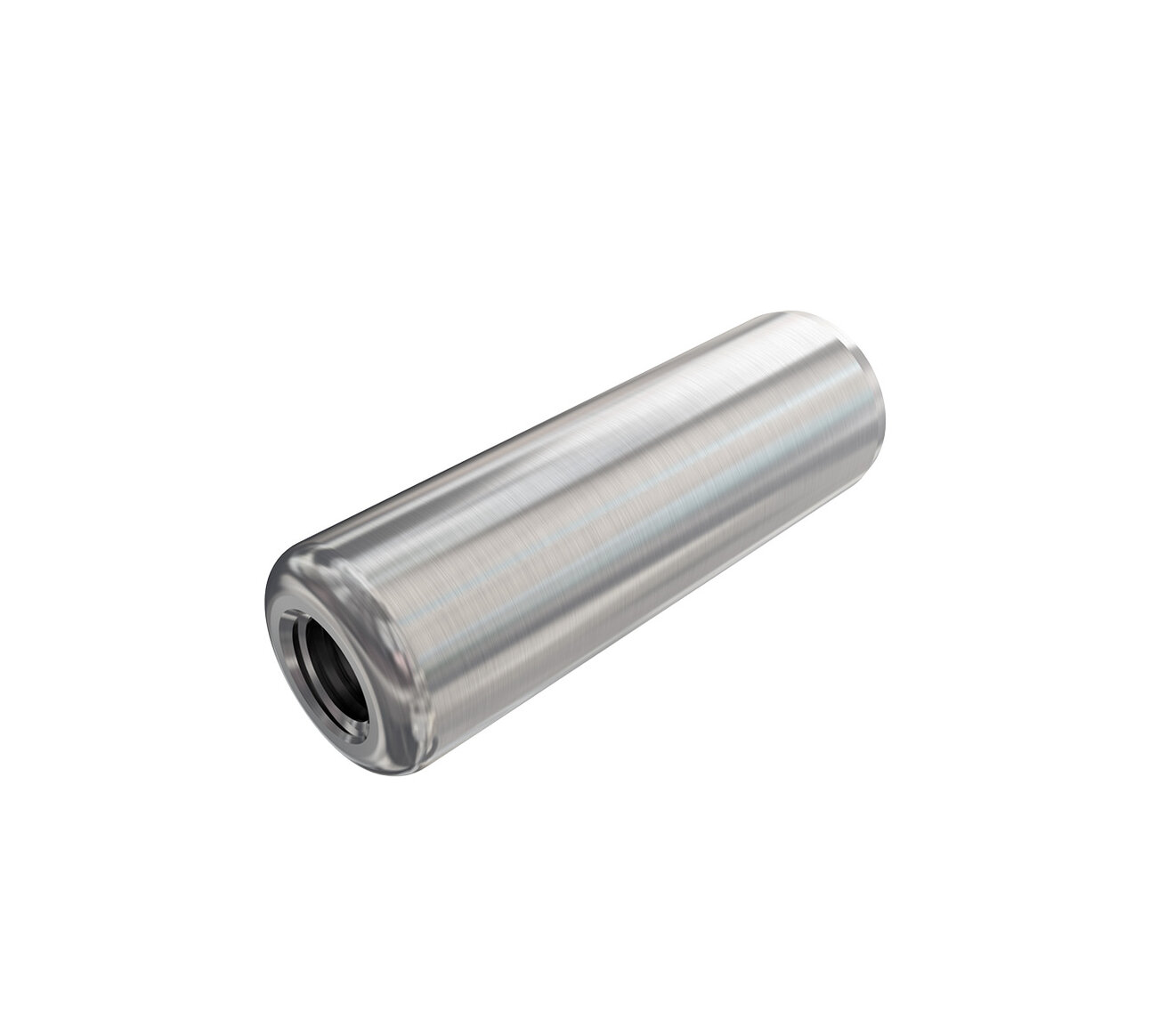

Jergens Standard Round Pull Dowels are typically used in applications featuring a through hole. Their internally threaded hole allows removal of pull dowels with a standard screw.
- Material: 300 Series (18-8) Stainless Steel
- Length Tolerance: ±0.010"
- Diameter Tolerance: ±0.0001"
- Recommended Hole Size: 0.0005" under nominal diameter
- Surface Finish: 8 µin
- Specification: ASME B18.8.2
Standard Round Stainless Steel Pull Dowels

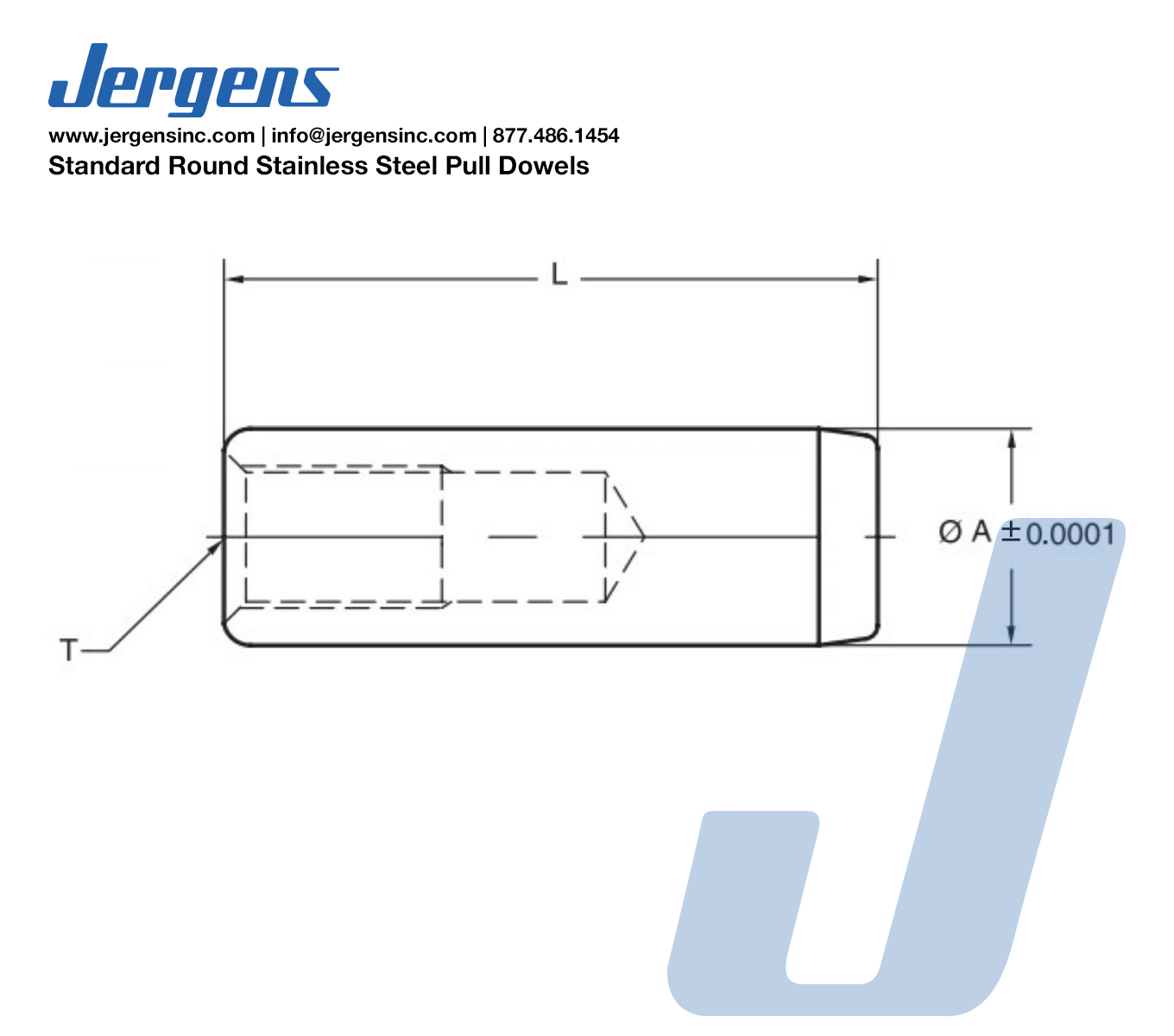

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Nominal (In) | Diameter (In) | Length (In) | Internal Thread |
|---|---|---|---|---|---|---|
| 31600-SS |
|
Inch | 1/4 | 0.2502 | 1/2 | 8-32 |
| 31601-SS |
|
Inch | 1/4 | 0.2502 | 3/4 | 8-32 |
| 31602-SS |
|
Inch | 1/4 | 0.2502 | 1 | 8-32 |
| 31603-SS |
|
Inch | 1/4 | 0.2502 | 1-1/4 | 8-32 |
| 31604-SS |
|
Inch | 1/4 | 0.2502 | 1-1/2 | 8-32 |
| 31605-SS |
|
Inch | 1/4 | 0.2502 | 1-3/4 | 8-32 |
| 31606-SS |
|
Inch | 1/4 | 0.2502 | 2 | 8-32 |
| 31607-SS |
|
Inch | 1/4 | 0.2502 | 2-1/2 | 8-32 |
| 31608-SS |
|
Inch | 5/16 | 0.3127 | 3/4 | 10-32 |
| 31609-SS |
|
Inch | 5/16 | 0.3127 | 1 | 10-32 |
| 31610-SS |
|
Inch | 5/16 | 0.3127 | 1-1/4 | 10-32 |
| 31611-SS |
|
Inch | 5/16 | 0.3127 | 1-1/2 | 10-32 |
| 31612-SS |
|
Inch | 5/16 | 0.3127 | 2 | 10-32 |
| 31613-SS |
|
Inch | 5/16 | 0.3127 | 2-1/4 | 10-32 |
| 31614-SS |
|
Inch | 5/16 | 0.3127 | 2-1/2 | 10-32 |
| 31615-SS |
|
Inch | 3/8 | 0.3752 | 3/4 | 10-32 |
| 31616-SS |
|
Inch | 3/8 | 0.3752 | 1 | 10-32 |
| 31617-SS |
|
Inch | 3/8 | 0.3752 | 1-1/4 | 10-32 |
| 31618-SS |
|
Inch | 3/8 | 0.3752 | 1-1/2 | 10-32 |
| 31619-SS |
|
Inch | 3/8 | 0.3752 | 1-3/4 | 10-32 |
| 31620-SS |
|
Inch | 3/8 | 0.3752 | 2 | 10-32 |
| 31621-SS |
|
Inch | 3/8 | 0.3752 | 2-1/4 | 10-32 |
| 31622-SS |
|
Inch | 3/8 | 0.3752 | 2-1/2 | 10-32 |
| 31623-SS |
|
Inch | 3/8 | 0.3752 | 3 | 10-32 |
| 31624-SS |
|
Inch | 7/16 | 0.4377 | 1 | 1/4-20 |
| 31625-SS |
|
Inch | 7/16 | 0.4377 | 1-1/2 | 1/4-20 |
| 31626-SS |
|
Inch | 7/16 | 0.4377 | 2 | 1/4-20 |
| 31627-SS |
|
Inch | 1/2 | 0.5002 | 3/4 | 1/4-20 |
| 31628-SS |
|
Inch | 1/2 | 0.5002 | 1 | 1/4-20 |
| 31629-SS |
|
Inch | 1/2 | 0.5002 | 1-1/4 | 1/4-20 |
| 31630-SS |
|
Inch | 1/2 | 0.5002 | 1-1/2 | 1/4-20 |
| 31631-SS |
|
Inch | 1/2 | 0.5002 | 1-3/4 | 1/4-20 |
| 31632-SS |
|
Inch | 1/2 | 0.5002 | 2 | 1/4-20 |
| 31633-SS |
|
Inch | 1/2 | 0.5002 | 2-1/4 | 1/4-20 |
| 31634-SS |
|
Inch | 1/2 | 0.5002 | 2-1/2 | 1/4-20 |
| 31635-SS |
|
Inch | 1/2 | 0.5002 | 3 | 1/4-20 |
| 31636-SS |
|
Inch | 1/2 | 0.5002 | 3-1/2 | 1/4-20 |
| 31637-SS |
|
Inch | 1/2 | 0.5002 | 4 | 1/4-20 |
| 31638-SS |
|
Inch | 5/8 | 0.6252 | 1-1/4 | 1/4-20 |
| 31639-SS |
|
Inch | 5/8 | 0.6252 | 1-1/2 | 1/4-20 |
| 31640-SS |
|
Inch | 5/8 | 0.6252 | 2 | 1/4-20 |
| 31641-SS |
|
Inch | 5/8 | 0.6252 | 2-1/4 | 1/4-20 |
| 31642-SS |
|
Inch | 5/8 | 0.6252 | 2-1/2 | 1/4-20 |
| 31643-SS |
|
Inch | 5/8 | 0.6252 | 3 | 1/4-20 |
| 31644-SS |
|
Inch | 5/8 | 0.6252 | 4 | 1/4-20 |
| 31645-SS |
|
Inch | 3/4 | 0.7502 | 1-1/2 | 5/16-18 |
| 31646-SS |
|
Inch | 3/4 | 0.7502 | 2 | 5/16-18 |
| 31647-SS |
|
Inch | 3/4 | 0.7502 | 2-1/2 | 5/16-18 |
| 31648-SS |
|
Inch | 3/4 | 0.7502 | 3 | 5/16-18 |
| 31649-SS |
|
Inch | 3/4 | 0.7502 | 4 | 5/16-18 |
| 31650-SS |
|
Inch | 1 | 1.0002 | 2 | 5/16-18 |
| 31651-SS |
|
Inch | 1 | 1.0002 | 2-1/2 | 5/16-18 |
| 31652-SS |
|
Inch | 1 | 1.0002 | 3 | 5/16-18 |
| 31653-SS |
|
Inch | 1 | 1.0002 | 4 | 5/16-18 |
| 31654-SS |
|
Inch | 1/4 | 0.2502 | 2-1/4 | 8-32 |
| 31655-SS |
|
Inch | 3/4 | 0.7502 | 1-3/4 | 5/16-18 |
| 31656-SS |
|
Inch | 1 | 1.0002 | 1-3/4 | 5/16-18 |
