Standard Hex Spindles
Jergens Toggle Clamps encompass a range of standard styles and sizes. Manufactured to the highest quality, our toggle clamps enable you to work quickly and accurately and provide repeatable clamping performance for a wide range of applications and industries. We maintain a large inventory and are happy to help identify the right product for your application.
Features, Benefits, & Product Specifications:
-
Includes (2) jam nuts
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

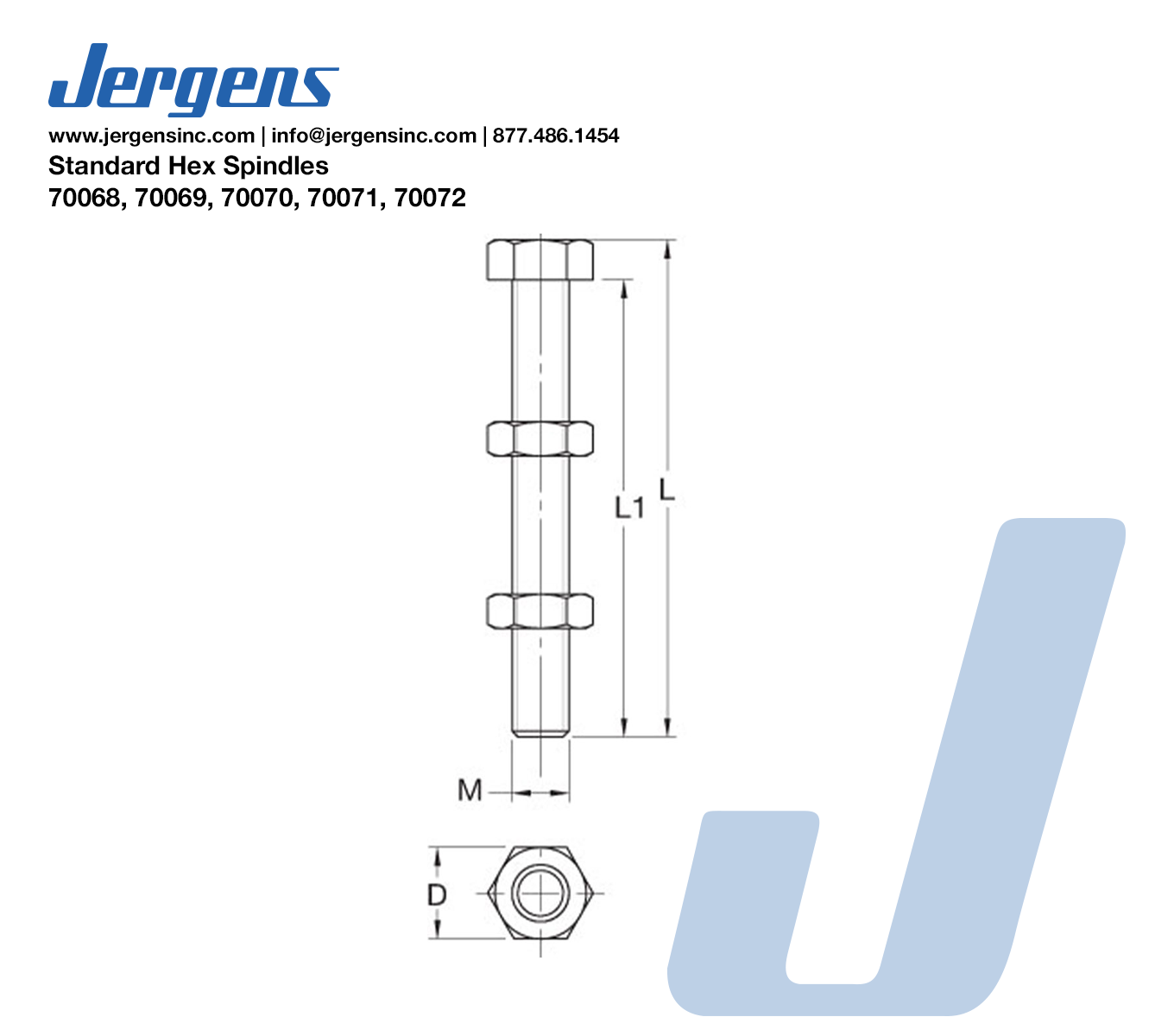

Standard Hex Spindles
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | D (In) | L (In) | L1 (In) | M |
|---|---|---|---|---|---|---|
| 70068 | Inch | 0.44 | 0.80 | 0.62 | 1/4-20 | |
| 70069 | Inch | 0.50 | 1.22 | 1.00 | 5/16-18 | |
| 70070 | Inch | 0.56 | 1.50 | 1.25 | 3/8-16 | |
| 70071 | Inch | 0.75 | 3.31 | 3.00 | 1/2-13 | |
| 70072 | Inch | 0.75 | 4.81 | 4.50 | 1/2-13 |
