Standard Fixture Keys
Jergens Standard Fixture Keys position and align vises on machine tables.
Features, Benefits, & Product Specifications:
-
Material: C1018 Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened 74-77 R30N
Standard Fixture Keys
Select a part number for CAD drawings, price and stock availability.

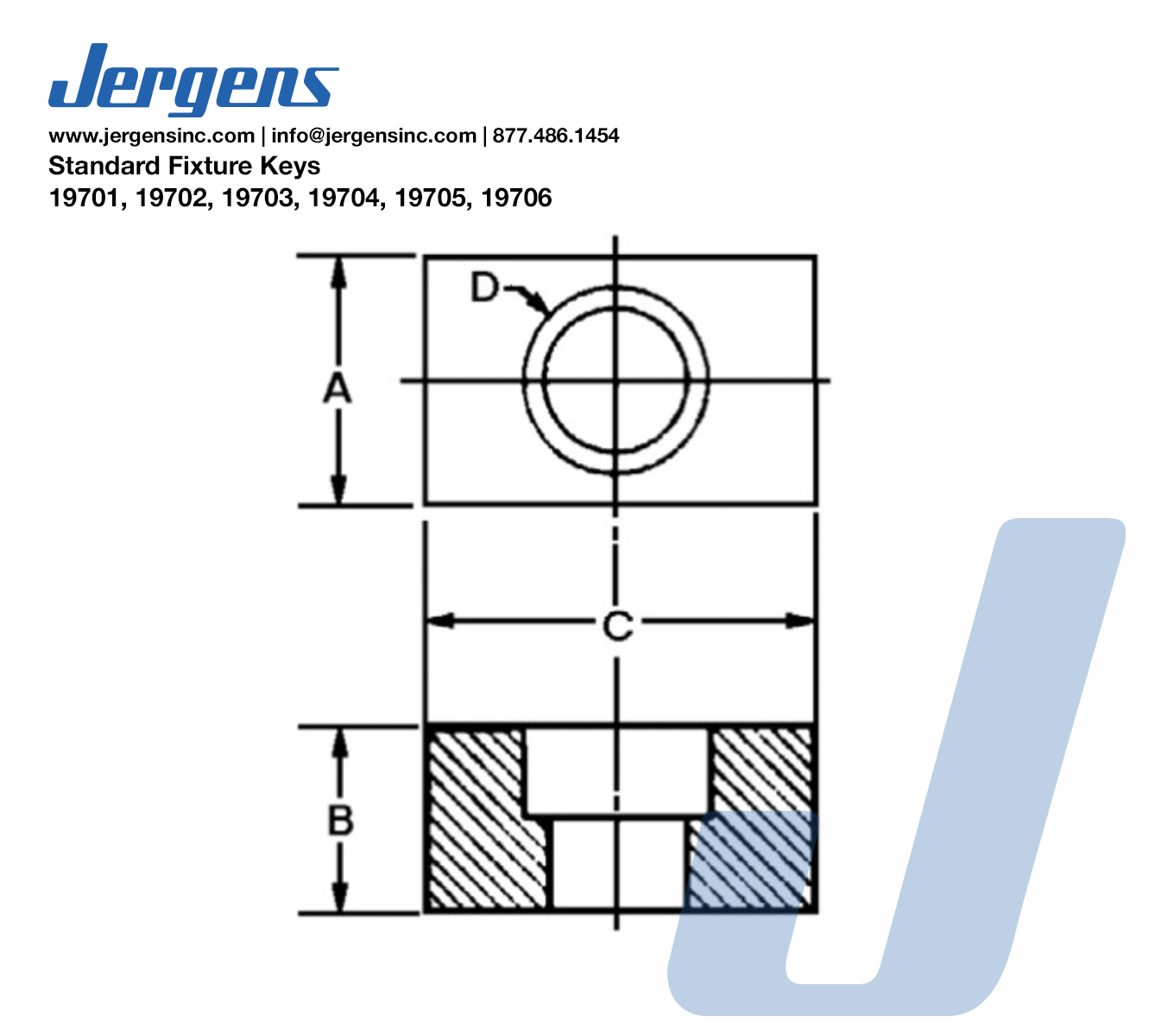

| Part Number | CAD | Unit | A -0.0005/-0.0010 (In) | B (In) | C (In) | Socket Head Screw D | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|
| 19701 |
|
Inch | 0.5000 | 1/2 | 3/4 | 1/4 | 0.14 |
| 19702 |
|
Inch | 0.5625 | 1/2 | 3/4 | 1/4 | 0.65 |
| 19703 |
|
Inch | 0.6250 | 1/2 | 3/4 | 5/16 | 0.68 |
| 19704 |
|
Inch | 0.6875 | 1/2 | 1 | 5/16 | 0.98 |
| 19705 |
|
Inch | 0.7500 | 1/2 | 1 1/4 | 5/16 | 1.10 |
| 19706 |
|
Inch | 0.8125 | 1/2 | 1 1/4 | 5/16 | 1.25 |
| Part Number | CAD | Unit | A -0.0013/-0.0026 (mm) | B (mm) | C (mm) | Socket Head Screw D |
|---|---|---|---|---|---|---|
| 19751 |
|
Metric | 12 | 13 | 22 | M5 |
| 19752 |
|
Metric | 14 | 13 | 22 | M6 |
| 19753 |
|
Metric | 16 | 13 | 22 | M6 |
| 19754 |
|
Metric | 18 | 13 | 22 | M6 |
| 19755 |
|
Metric | 20 | 13 | 22 | M6 |
| 19756 |
|
Metric | 22 | 13 | 32 | M6 |
