Stainless Steel Setup Studs
With one of the largest selections available, Jergens Workholding Components have everything you need to design and build fixtures, jigs, and other workholding devices.
Features, Benefits, & Product Specifications:
-
Material: 303 Stainless Steel
Stainless Steel Setup Studs
Select a part number for CAD drawings, price and stock availability.

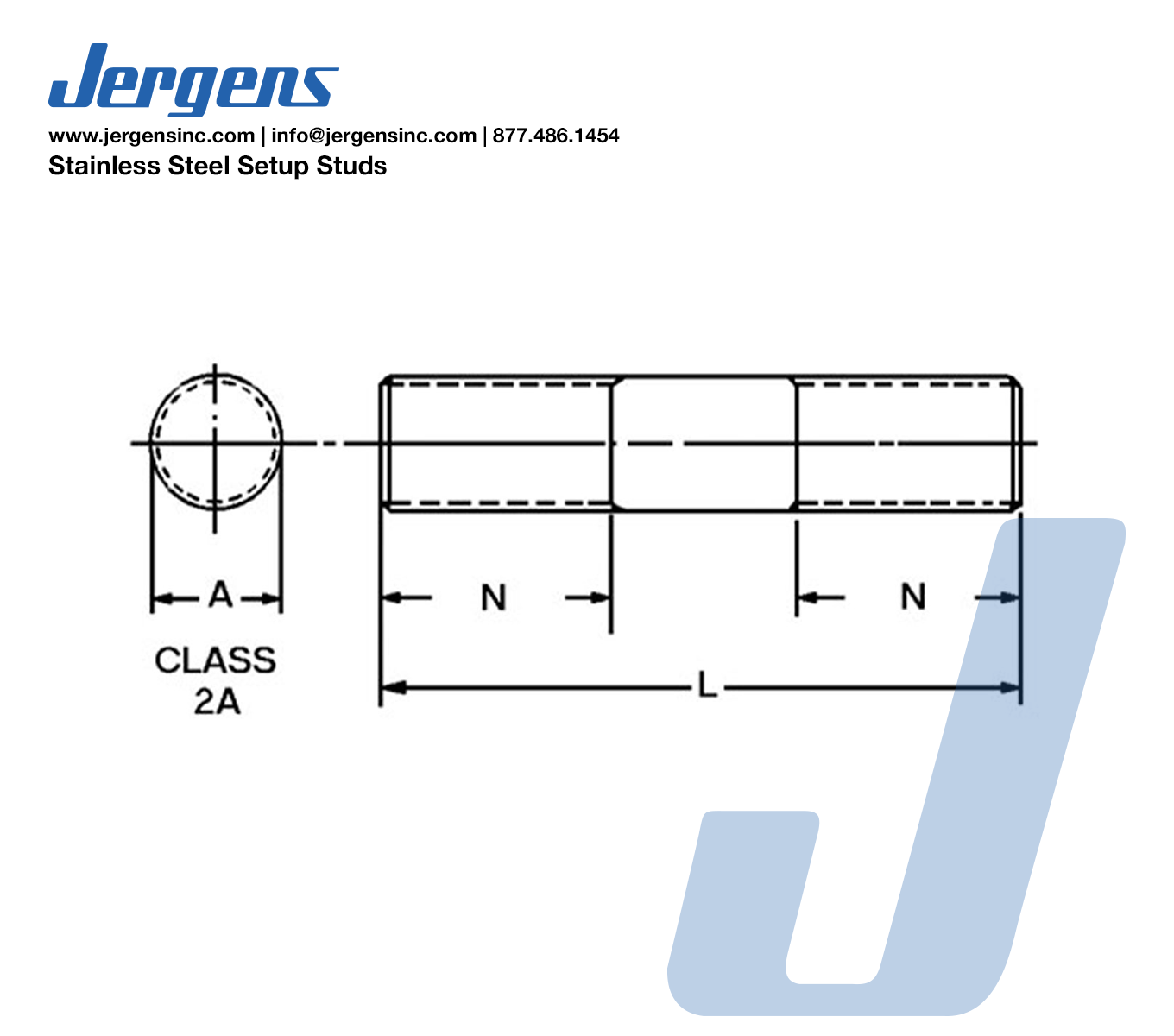

| Part Number | CAD | Unit | Thread A | L (In) | N (In) |
|---|---|---|---|---|---|
| 38421 |
|
Inch | 1/2-13 | 2 | 3/4 |
| 38422 |
|
Inch | 1/2-13 | 2 1/2 | 1 1/8 |
| 38423 |
|
Inch | 1/2-13 | 3 | 1 3/8 |
| 38424 |
|
Inch | 1/2-13 | 3 1/2 | 1 1/2 |
| 38425 |
|
Inch | 1/2-13 | 4 | 1 1/2 |
| 38426 |
|
Inch | 1/2-13 | 4 1/2 | 1 1/2 |
| 38427 |
|
Inch | 1/2-13 | 5 | 1 1/2 |
| 38428 |
|
Inch | 1/2-13 | 5 1/2 | 1 1/2 |
| 38429 |
|
Inch | 1/2-13 | 6 | 1 1/2 |
| 38431 |
|
Inch | 1/2-13 | 7 | 1 1/2 |
| 38433 |
|
Inch | 1/2-13 | 8 | 1 1/2 |
| 38434 |
|
Inch | 1/2-13 | 9 | 1 1/2 |
| 38435 |
|
Inch | 1/2-13 | 10 | 1 1/2 |
| 38436 |
|
Inch | 1/2-13 | 12 | 1 1/2 |
| 38620 |
|
Inch | 5/8-11 | 2 1/2 | 1 1/8 |
| 38621 |
|
Inch | 5/8-11 | 3 | 1 3/8 |
| 38622 |
|
Inch | 5/8-11 | 3 1/2 | 1 3/4 |
| 38623 |
|
Inch | 5/8-11 | 4 | 1 3/4 |
| 38624 |
|
Inch | 5/8-11 | 4 1/2 | 1 3/4 |
| 38625 |
|
Inch | 5/8-11 | 5 | 1 3/4 |
| 38626 |
|
Inch | 5/8-11 | 5 1/2 | 1 3/4 |
| 38627 |
|
Inch | 5/8-11 | 6 | 1 3/4 |
| 38629 |
|
Inch | 5/8-11 | 7 | 1 3/4 |
| 38631 |
|
Inch | 5/8-11 | 8 | 1 3/4 |
| 38632 |
|
Inch | 5/8-11 | 9 | 1 3/4 |
| 38633 |
|
Inch | 5/8-11 | 10 | 1 3/4 |
| 38634 |
|
Inch | 5/8-11 | 12 | 1 3/4 |
| 38821 |
|
Inch | 3/4-10 | 3 | 1 3/8 |
| 38822 |
|
Inch | 3/4-10 | 3 1/2 | 1 1/2 |
| 38823 |
|
Inch | 3/4-10 | 4 | 1 3/4 |
| 38824 |
|
Inch | 3/4-10 | 4 1/2 | 2 |
| 38825 |
|
Inch | 3/4-10 | 5 | 2 |
| 38826 |
|
Inch | 3/4-10 | 5 1/2 | 2 |
| 38827 |
|
Inch | 3/4-10 | 6 | 2 |
| 38829 |
|
Inch | 3/4-10 | 7 | 2 |
| 38831 |
|
Inch | 3/4-10 | 8 | 2 |
| 38833 |
|
Inch | 3/4-10 | 10 | 2 |
| 38834 |
|
Inch | 3/4-10 | 12 | 2 |
