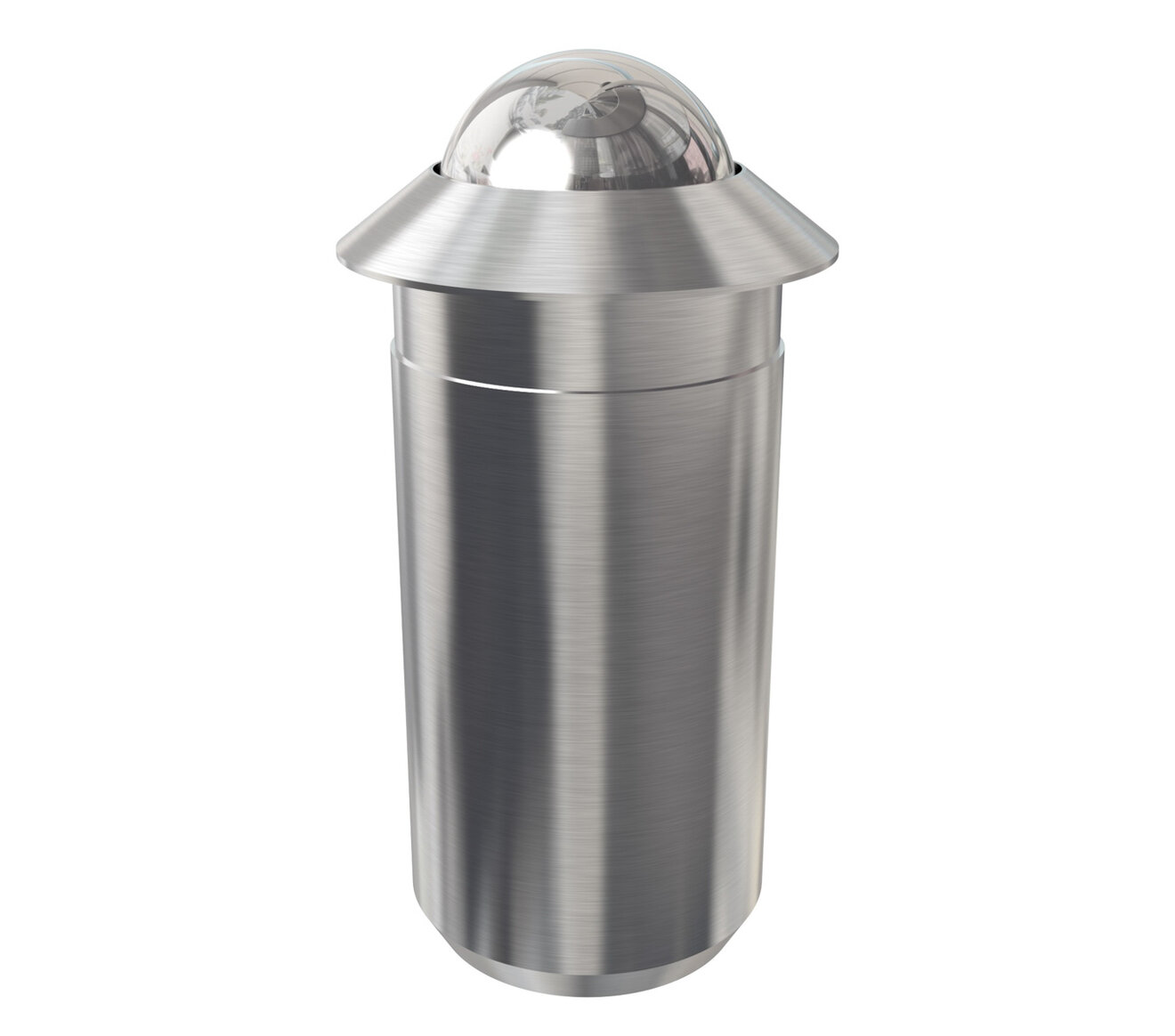

Stainless Steel Press Fit Plungers
Jergens Press Fit Plungers are turned and the tips are generated in one smooth continuing process. This results in a constant radius tip, perfectly tangent to the point where the tip joins the shaft. Closer tolerances, minimum plunger-to-body clearance, and smoother plunger finish make all of our plungers fit more snugly in the plunger bore. Their thin, long base flange allows for a larger bearing surface and longer life.
Features & Benefits:
-
A better point of contact
-
Extra length springs for longer life
-
Improved plunger-to-body alignment
-
Tighter provides extra resistance to contaminant entry
-
Special materials and sizes available upon requests
Material Specifications:
-
Body Material: Low Carbon Steel
-
Ball Material: 400 Stainless Steel
-
Spring Material: 17-7 PH Stainless Steel
Documents
Stainless Steel Press Fit Plungers
Select a part number for CAD drawings, price and stock availability.

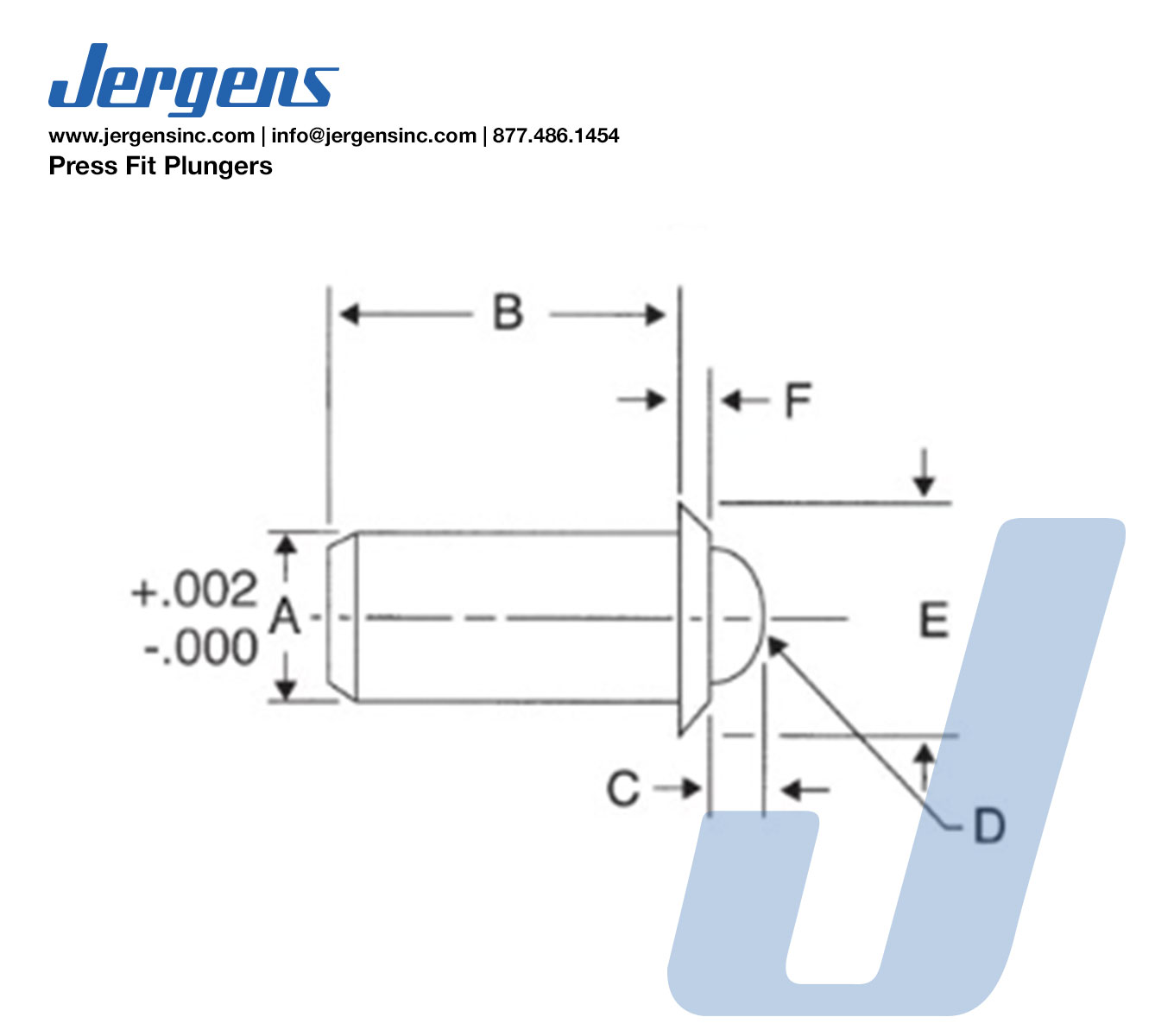

| Part Number | CAD | Unit | Force Type | Diameter A (In) | Initial Force (lbs) | Final Force (lbs) | B (In) | C (In) | Ball Diameter D (In) | E (In) | F (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 11031 |
|
Inch | Light Force | 0.188 | 1.0 | 2.5 | 0.405 | 0.058 | 0.156 | 0.250 | 0.035 |
| 11032 |
|
Inch | Heavy Force | 0.188 | 2.0 | 5.0 | 0.405 | 0.058 | 0.156 | 0.250 | 0.035 |
| 11033 |
|
Inch | Light Force | 0.250 | 1.5 | 3.5 | 0.481 | 0.070 | 0.187 | 0.312 | 0.044 |
| 11034 |
|
Inch | Heavy Force | 0.250 | 3.0 | 7.0 | 0.481 | 0.070 | 0.187 | 0.312 | 0.044 |
| 11035 |
|
Inch | Light Force | 0.375 | 2.5 | 7.0 | 0.785 | 0.110 | 0.312 | 0.500 | 0.078 |
| 11036 |
|
Inch | Heavy Force | 0.375 | 5.0 | 14.0 | 0.785 | 0.110 | 0.312 | 0.500 | 0.078 |
| 11037 |
|
Inch | Light Force | 0.500 | 4.0 | 9.0 | 1.130 | 0.161 | 0.437 | 0.688 | 0.088 |
| 11038 |
|
Inch | Heavy Force | 0.500 | 8.0 | 18.0 | 1.130 | 0.161 | 0.437 | 0.688 | 0.088 |
