Stainless Steel Flange Nuts
Where heavy clamping pressures and vibrations could cause trouble, the wide face surface of Jergens Stainless Steel Flange Nuts holds through with greater friction.
Features, Benefits, & Product Specifications:
-
Material: 303 Stainless Steel

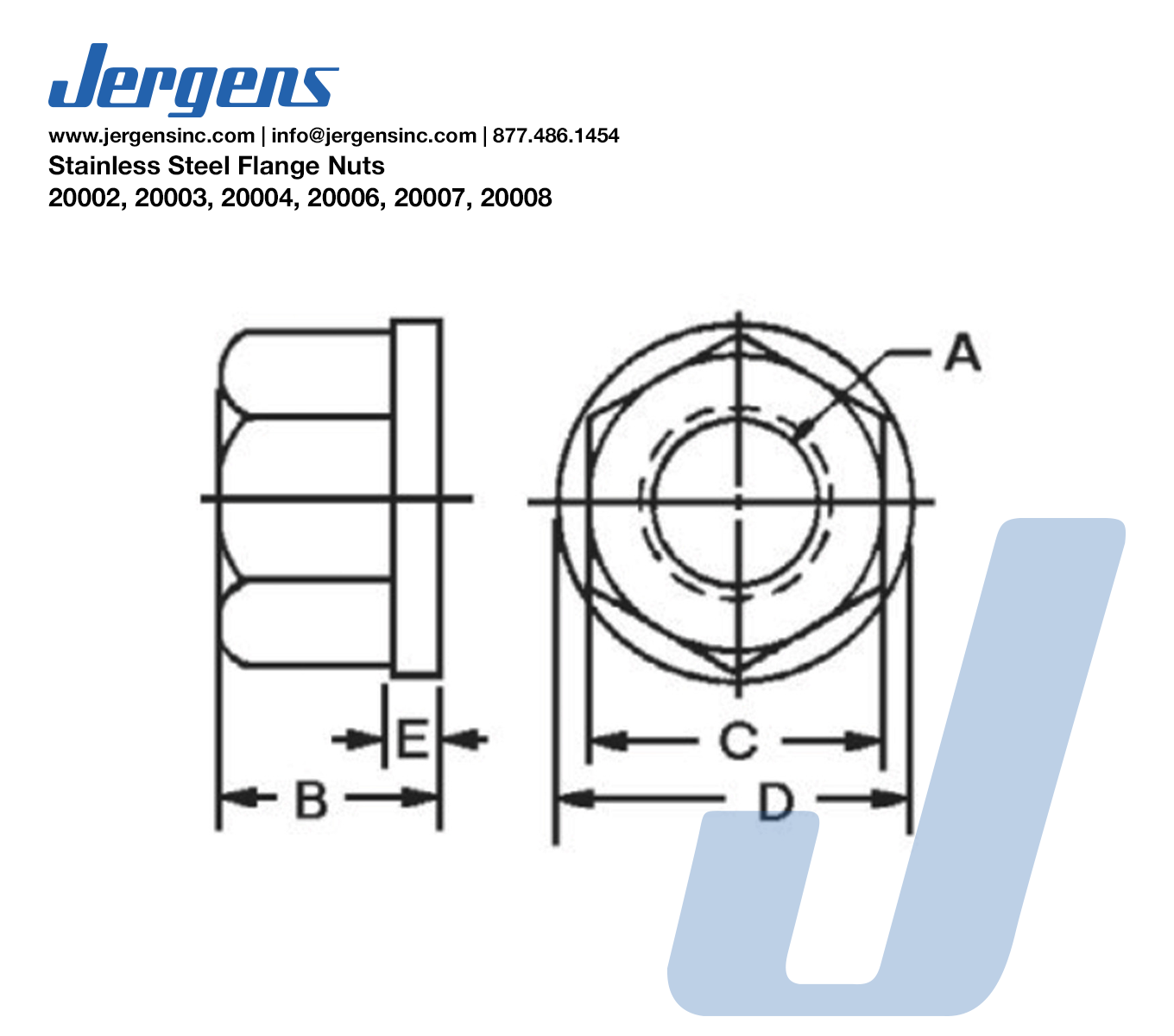

Stainless Steel Flange Nut_LineArt
Stainless Steel Flange Nuts
| Part Number | CAD | Unit | Thread A | B (In) | C (In) | D (in) | E (in) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|
| 20002 |
|
Inch | 1/4-20 | 5/16 | 1/2 | 5/8 | 3/32 | 0.02 | |
| 20003 |
|
Inch | 5/16-18 | 3/8 | 9/16 | 3/4 | 3/32 | 0.02 | |
| 20004 |
|
Inch | 3/8-16 | 1/2 | 11/16 | 7/8 | 1/8 | 0.05 | |
| 20006 |
|
Inch | 1/2-13 | 11/16 | 7/8 | 1 1/8 | 5/32 | 0.11 | |
| 20007 |
|
Inch | 5/8-11 | 13/16 | 1 1/16 | 1 3/8 | 3/16 | 0.18 | |
| 20008 |
|
Inch | 3/4-10 | 1 | 1 1/4 | 1 5/8 | 1/4 | 0.32 |
