Stainless Steel Ball Lock® Shanks
Any Ball Lock® application requires at least (2) sets of shanks, receiver bushings, and liners. The liners are placed into the fixture plate to insure extremely accurate positioning. If more than (2) shanks are required (to provide additional hold down force), omit the liner bushing so that these additional holes will not interfere with your primary locating holes.
Features, Benefits, & Product Specifications:
-
Material: 17-4 PH Stainless Steel
-
Heat Treat: 40-45 RC
Stainless Steel Ball Lock® Shanks
Select a part number for CAD drawings, price and stock availability.

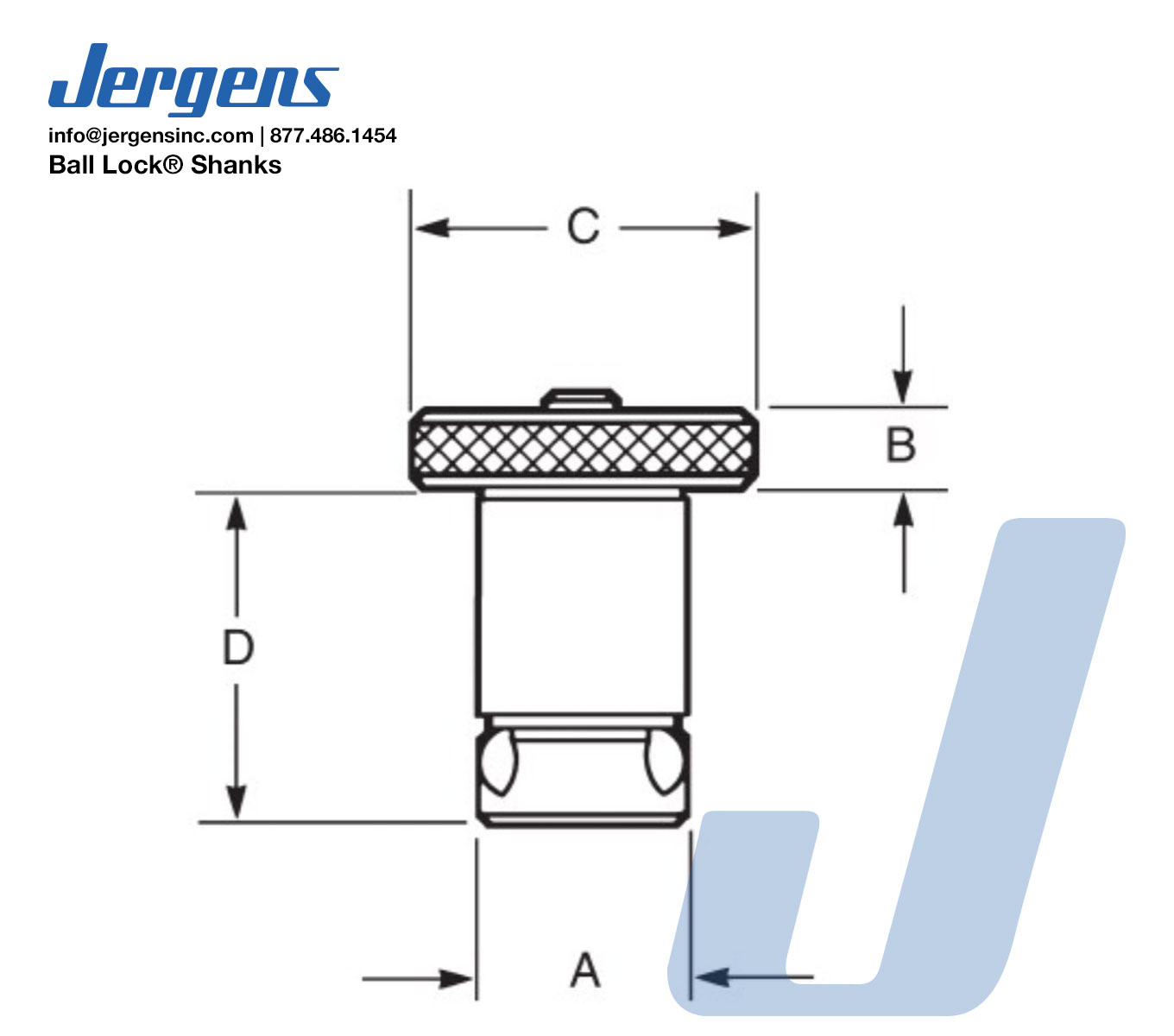

| Part Number | CAD | Unit | Fixture Plate Thickness +/-0.005 (In) | Shank Diameter A (mm) | Head of Shank Height B (In) | Head of Shank Diameter C (In) | Length Under Head D (In) | Maximum Hold-Down Force (lbs) | Recommended Screw Torque (ft/lbs) | Hex Wrench Size for Set Screw | Shank Repair Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49601SS |
|
Inch | 0.750 | 20 | 0.38 | 1.75 | 1.53 | 3000 | 3 | 1/8 | 49901SS |
| 49602SS |
|
Inch | 1.000 | 20 | 0.38 | 1.75 | 1.78 | 3000 | 3 | 1/8 | 49902SS |
| 49605SS |
|
Inch | 0.500 | 13 | 0.25 | 0.87 | 1.08 | 750 | 1 | 3/32 | 49905SS |
| 49606SS |
|
Inch | 0.750 | 13 | 0.25 | 0.87 | 1.33 | 750 | 1 | 3/33 | 49906SS |
| 49607SS |
|
Inch | 0.500 | 16 | 0.32 | 1.50 | 1.15 | 1200 | 2 | 1/8 | 49907SS |
| 49608SS |
|
Inch | 0.750 | 16 | 0.32 | 1.50 | 1.40 | 1200 | 2 | 1/8 | 49908SS |
| 49611SS |
|
Inch | 0.750 | 25 | 0.38 | 2.00 | 1.70 | 7000 | 7 | 5/32 | 49911SS |
| 49612SS |
|
Inch | 1.000 | 25 | 0.38 | 2.00 | 1.95 | 7000 | 7 | 5/33 | 49912SS |
| 49621SS |
|
Inch | 0.750 | 30 | 0.50 | 2.25 | 1.88 | 10000 | 12 | 3/16 | 49921SS |
| 49622SS |
|
Inch | 1.000 | 30 | 0.50 | 2.25 | 2.13 | 10000 | 12 | 3/17 | 49922SS |
| 49631SS |
|
Inch | 0.750 | 35 | 0.50 | 2.25 | 1.97 | 1550 | 19 | 1/4 | 49931SS |
| 49632SS |
|
Inch | 1.000 | 35 | 0.50 | 2.25 | 2.22 | 15500 | 19 | 1/4 | 49932SS |
| 49633SS |
|
Inch | 1.500 | 35 | 0.50 | 2.25 | 2.72 | 15500 | 19 | 1/4 | 49933SS |
| 49634SS |
|
Inch | 2.000 | 35 | 0.50 | 2.25 | 3.22 | 15500 | 19 | 1/4 | 49934SS |
| 49641SS |
|
Inch | 0.750 | 50 | 0.75 | 3.00 | 2.45 | 20000 | 38 | 3/8 | 49941SS |
| 49642SS |
|
Inch | 1.000 | 50 | 0.75 | 3.00 | 2.70 | 20000 | 38 | 3/8 | 49942SS |
| 49643SS |
|
Inch | 1.500 | 50 | 0.75 | 3.00 | 3.20 | 20000 | 38 | 3/8 | 49943SS |
| 49644SS |
|
Inch | 2.000 | 50 | 0.75 | 3.00 | 3.70 | 20000 | 38 | 3/8 | 49944SS |
| Part Number | CAD | Unit | Fixture Plate Thickness +/-0.13mm | Shank Diameter A (mm) | Head of Shank Height B (mm) | Head of Shank Diameter C (mm) | Length Under Head D (mm) | Maximum Hold-Down Force (kn) | Recommended Screw Torque (Nm) | Hex Wrench Size for Set Screw | Shank Repair Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49651SS |
|
Metric | 20 | 20 | 10 | 40 | 39.5 | 13.3 | 13.3 | 3 | 49951SS |
| 49652SS |
|
Metric | 25 | 20 | 10 | 40 | 44.5 | 13.3 | 4 | 3 | 49952SS |
| 49655SS |
|
Metric | 13 | 13 | 6 | 22 | 27.6 | 3.3 | 1 | 2.5 | 49955SS |
| 49656SS |
|
Metric | 20 | 13 | 6 | 22 | 34.6 | 3.3 | 1 | 2.5 | 49956SS |
| 49657SS |
|
Metric | 20 | 16 | 8 | 32 | 36.5 | 5.3 | 3 | 3 | 49957SS |
| 49658SS |
|
Metric | 25 | 11 | 8 | 32 | 41.5 | 5.3 | 3 | 3 | 49958SS |
| 49661SS |
|
Metric | 20 | 25 | 10 | 45 | 44 | 30 | 9 | 4 | 49961SS |
| 49662SS |
|
Metric | 25 | 25 | 10 | 45 | 49 | 30 | 9 | 4 | 49962SS |
| 49671SS |
|
Metric | 20 | 30 | 13 | 50 | 49 | 44 | 15 | 5 | 49971SS |
| 49672SS |
|
Metric | 25 | 30 | 13 | 50 | 54 | 44 | 15 | 5 | 49972SS |
| 49681SS |
|
Metric | 20 | 35 | 13 | 60 | 51 | 68 | 25 | 6 | 49981SS |
| 49682SS |
|
Metric | 25 | 35 | 13 | 60 | 56 | 68 | 25 | 6 | 49982SS |
| 49683SS |
|
Metric | 40 | 35 | 13 | 60 | 71 | 68 | 25 | 6 | 49983SS |
| 49684SS |
|
Metric | 50 | 35 | 13 | 60 | 81 | 68 | 25 | 6 | 49984SS |
| 49691SS |
|
Metric | 20 | 50 | 20 | 75 | 64 | 88 | 50 | 10 | 49991SS |
| 49692SS |
|
Metric | 25 | 50 | 20 | 75 | 69 | 88 | 50 | 10 | 49992SS |
| 49693SS |
|
Metric | 40 | 50 | 20 | 75 | 84 | 88 | 50 | 10 | 49993SS |
| 49694SS |
|
Metric | 50 | 50 | 20 | 75 | 94 | 88 | 50 | 10 | 49994SS |
