Speed Bar Knobs
Jergens Speed Bar Knobs offer the ultimate in strength to hold down covers and clamp heavy work pieces. Insert bar between four vertical prongs for maximum leverage and holding force.
Features, Benefits, & Product Specifications:
-
Material: Malleable ASTM 32510
-
Finish: Mill
-
Thread: 2B-UNC for Inch, Class 6h for Metric
Note(s):
One extra long prong is available on Part No.'s 40706 & 40707 for use with a crank handle.
Speed Bar Knobs

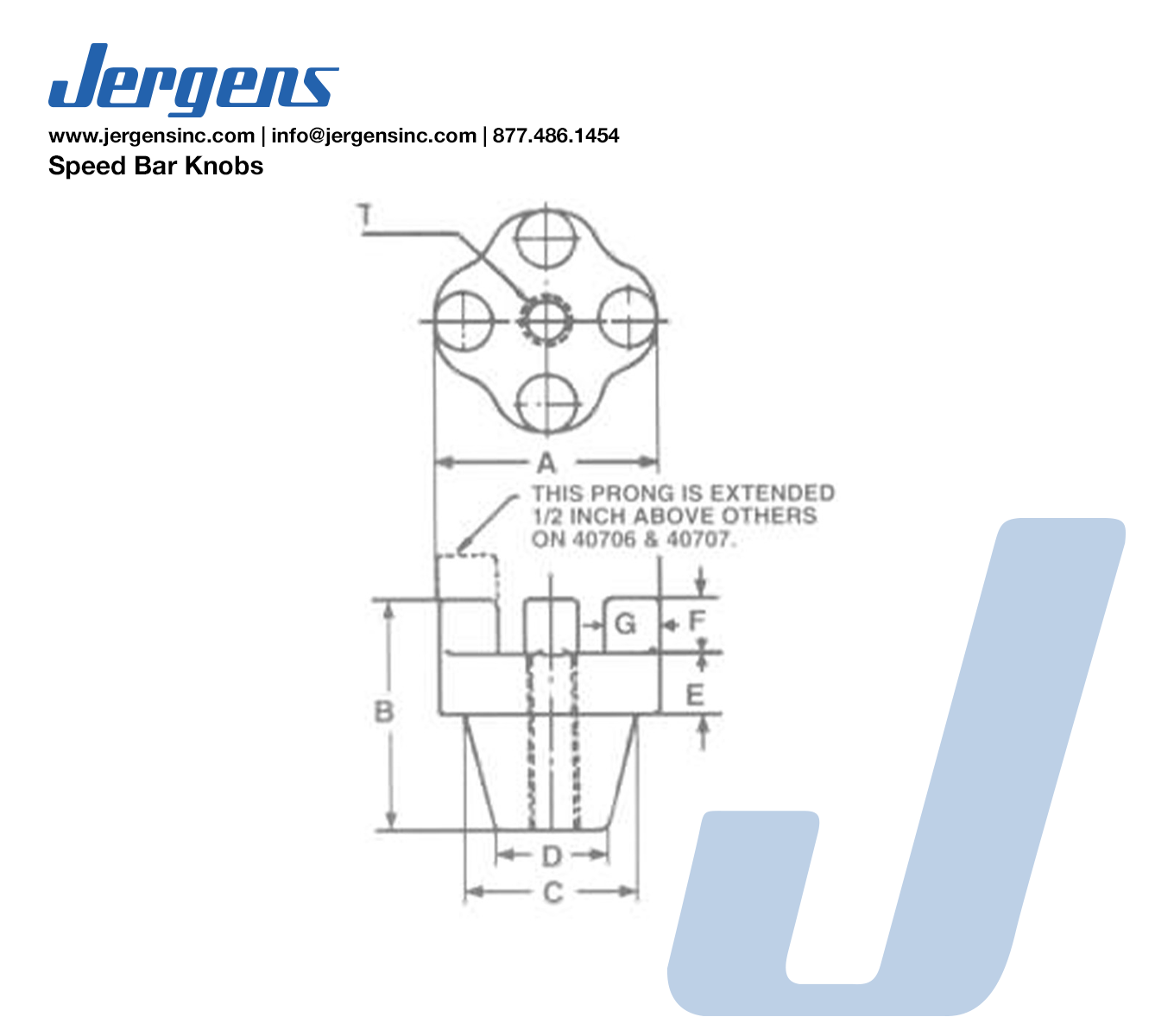

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | T | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40701 |
|
Inch | 2 | 2 1/8 | 1 1/4 | 1 1/8 | 1/2 | 3/4 | 1/2 | Blank | 0.80 |
| 40702 |
|
Inch | 2 | 2 1/8 | 1 1/4 | 1 1/8 | 1/2 | 3/4 | 1/2 | 1/2-13 | 0.72 |
| 40703 |
|
Inch | 2 1/2 | 2 3/8 | 1 3/4 | 1 1/2 | 9/16 | 7/8 | 5/8 | Blank | 1.56 |
| 40704 |
|
Inch | 2 1/2 | 2 3/8 | 1 3/4 | 1 1/2 | 9/16 | 7/8 | 5/8 | 5/8-11 | 1.44 |
| 40705 |
|
Inch | 2 1/2 | 2 3/8 | 1 3/4 | 1 1/2 | 9/16 | 7/8 | 5/8 | 3/4-10 | 1.40 |
| 40706 |
|
Inch | 3 1/2 | 2 3/8 | 2 3/8 | 2 1/8 | 1/2 | 7/8 | 5/8 | Blank | 2.50 |
| 40707 |
|
Inch | 3 1/2 | 2 3/8 | 2 3/8 | 2 1/8 | 1/2 | 7/8 | 5/8 | 1-8 | 2.25 |
| 40711 |
|
Inch | 2 | 2-1/8 | 1-1/4 | 1-18 | 1/2 | 3/4 | 1/2 | 3/8-16 | 0.76 |
| 40712 |
|
Inch | 2 | 2-1/8 | 1-1/4 | 1-1/8 | 1/2 | 3/4 | 1/2 | 5/8-11 | 0.68 |
| 40713 |
|
Inch | 2-1/2 | 2-3/8 | 1-3/4 | 1-1/2 | 9/16 | 7/8 | 5/8 | 1/2-13 | 1.48 |
| 40715 |
|
Inch | 3-1/2 | 2-3/8 | 2-3/8 | 2-1/8 | 1/2 | 7/8 | 5/8 | 7/8-09 | 2.38 |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | T |
|---|---|---|---|---|---|---|---|---|---|---|
| 40701 |
|
Metric | 50 | 53 | 31 | 28 | 12 | 19 | 12 | Blank |
| 40703 |
|
Metric | 63 | 59 | 44 | 38 | 14 | 22 | 16 | Blank |
| 40706 |
|
Metric | 88 | 59 | 59 | 53 | 12 | 22 | 16 | Blank |
| 40752 |
|
Metric | 50 | 53 | 31 | 28 | 12 | 19 | 12 | M12 |
| 40754 |
|
Metric | 63 | 59 | 44 | 38 | 14 | 22 | 16 | M16 |
| 40755 |
|
Metric | 63 | 59 | 44 | 38 | 14 | 22 | 16 | M20 |
| 40757 |
|
Metric | 88 | 59 | 59 | 53 | 12 | 22 | 16 | M24 |
