Small Toe Clamps
Jergens Small Toe Clamps are powerful, low-profile clamps that grip on the side of the workpiece, leaving the top surface open. This feature minimizes interference with cutting tools or measuring instruments. Ideal for use on mills, planers, jig borers, drill presses, and faceplates.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Case hardened for maximum wear
-
Steel toe and a special washer are included with each clamp
-
Slotted for 5/16" or M8 cap screws
-
3° taper prevents back-off
Note(s):
Replacement parts are available. Contact Jergens Customer Service for more information.
Small Toe Clamps
Select a part number for CAD drawings, price and stock availability.

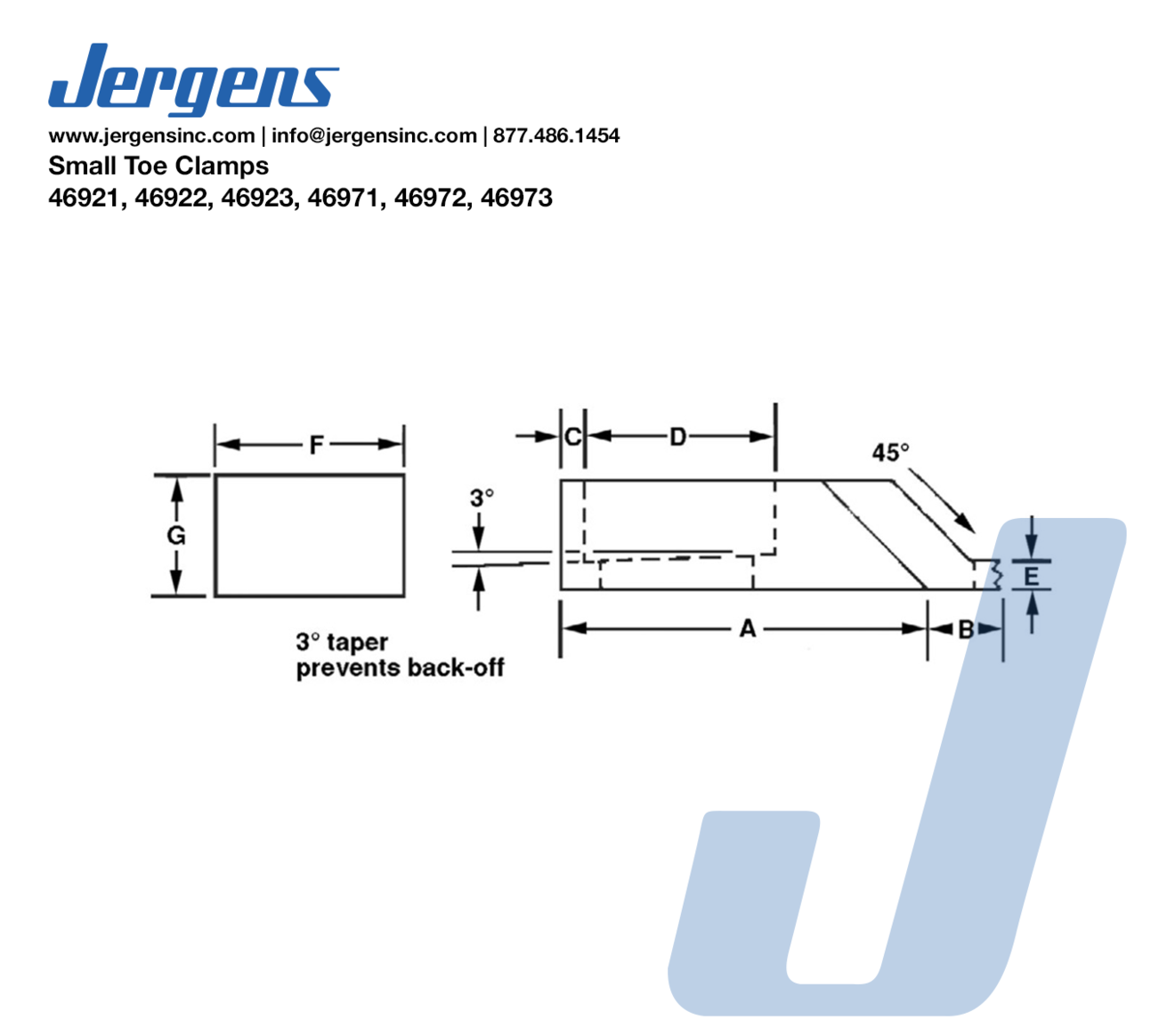

| Part Number | CAD | Unit | Toe Style | Toe Material | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Weight (lbs) | Toe Only Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46921 | Inch | Standard | Steel | 1 1/2 | 1/2 | 1/16 | 3/4 | 1/8 | 1 | 5/8 | 0.24 | 46952 | |
| 46922 | Inch | Standard | Steel | 2 | 1/2 | 1/16 | 1 1/4 | 1/8 | 1 | 5/8 | 0.30 | 46952 | |
| 46923 | Inch | Standard | Steel | 2 1/2 | 1/2 | 1/16 | 1 3/4 | 1/8 | 1 | 5/8 | 0.35 | 46952 | |
| 46971 | Inch | High Grip | Steel | 1 1/2 | 1/2 | 1/16 | 3/4 | 5/8 | 1 | 5/8 | 0.26 | 46948 | |
| 46972 | Inch | High Grip | Steel | 2 | 1/2 | 1/16 | 1 1/4 | 5/8 | 1 | 5/8 | 0.32 | 46948 | |
| 46973 | Inch | High Grip | Steel | 2 1/2 | 1/2 | 1/16 | 1 3/4 | 5/8 | 1 | 5/8 | 0.37 | 46948 |
