Shoulder Eye Bolts

Jergens Shoulder Eye Bolts are recommended for vertical loads only and are rated at a 5:1 strength factor.

  • Material: C1030 Forge

  • Finish: Mill

  • Thread: 2A

  • Temperature Range: 30°F to 275°F

For use other than vertical loads, general practice is to use Shoulder Eye Bolts:

  • 60% of the safe working load factor for a load 30° from vertical

  • 33% of vertical safe load for load 45° from vertical

  • 20% of vertical safe load for load 90° from vertical.

Note: 2-1/2" threads runour on threaded portion.

Metric Short Shoulder Eye Bolts loads given ensure a strength factor of four against deformation of any kind and strength factor of five against fracture.

  • Material: C15 Annealed (AISI 1015)

  • Finish: Mill

  • Thread: 6g

Jergens Metric Standard Shoulder Eye Bolts:

  • Material: C1030 Forge

  • Finish: Mill

  • Thread: 6g

Documents

Shoulder Eye Bolts

Shoulder Eye Bolts
  • Shoulder Eye Bolts

Select a part number for CAD drawings, price and stock availability.

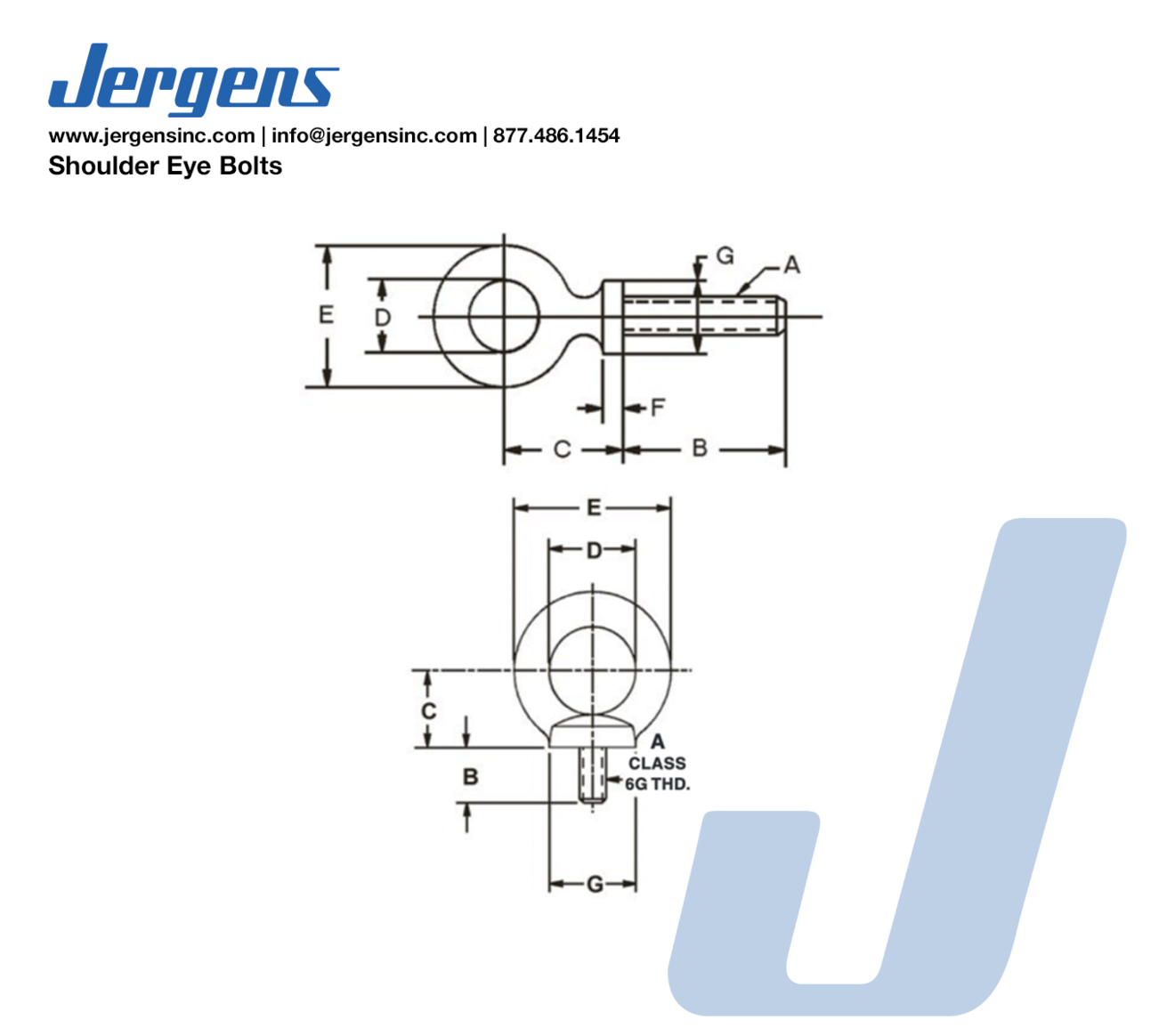

Part Number CAD Unit Style A (In) B (In) C (In) D (in) E (in) F (in) G (in) Weight (lbs) Load Capacity (lbs)
18501 icon_cad Inch Standard 1/4-20 1 11/16 3/4 1 3/16 3/16 1/2 0.05 500
18502 icon_cad Inch Standard 5/16-18 1 1/8 7/8 7/8 1 7/16 3/16 5/8 0.10 900
18503 icon_cad Inch Standard 3/8-16 1 1/4 1 1/16 1 1 21/32 3/16 11/16 0.16 1300
18504 icon_cad Inch Standard 1/2-13 1 1/2 1 5/16 1 3/16 2 1/16 1/4 7/8 0.36 2400
18505 icon_cad Inch Standard 5/8-11 1 3/4 1 19/32 1 3/8 2 1/2 1/4 1 1/8 0.65 4000
18506 icon_cad Inch Standard 3/4-10 2 1 23/32 1 1/2 2 13/16 5/16 1 1/4 1.00 5000
18507 icon_cad Inch Standard 7/8-9 2 1/4 2 3/16 1 11/16 3 1/4 3/8 1 7/16 1.70 7000
18508 icon_cad Inch Standard 1-8 2 1/2 2 13/32 1 13/16 3 9/16 13/32 1 9/16 2.36 9000
18509 icon_cad Inch Standard 1 1/8-7 2 3/4 2 23/32 2 4 15/32 1 11/16 3.41 12000
18510 icon_cad Inch Standard 1 1/4-7 3 2 15/16 2 3/16 4 7/16 1/2 1 7/8 4.68 15000
18511 icon_cad Inch Standard 1 1/2-6 3 1/2 3 7/16 2 1/2 5 3/16 9/16 2 3/16 7.77 21000
18512 icon_cad Inch Standard 1 3/4-5 3 3/4 3 31/32 2 7/8 6 1/16 5/8 2 1/2 11.35 28000
18513 icon_cad Inch Standard 2-4 1/2 4 4 1/2 3 1/4 6 7/8 3/4 2 7/8 16.70 38000
Part Number CAD Unit Style A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Straight Lift Only Maximum Load (kg) 45 Degree Lift - 2 Eye Bolts Maximum Load Weight (kg) Weight (lbs)
18551 icon_cad Metric Short M6 x 1.00 13.0 17.5 19.1 36.5 20.0 150 100 0.023
18552 icon_cad Metric Short M8 x 1.25 13.0 22.2 22.2 36.5 20.0 300 200 0.045
18554 icon_cad Metric Short M12 x 1.75 20.5 33.3 30.2 52.4 30.0 700 500 0.163
18555 icon_cad Metric Short M16 x 2.00 27.0 40.5 34.9 63.5 35.0 1500 1100 0.295
18561 icon_cad Metric Standard M6 x 1 25.4 20.6 19 30.0 3.9 13.5 210 210
18562 icon_cad Metric Standard M8 x 1.25 31.7 29.4 25 43.0 4.8 17.5 500 0.17
18563 icon_cad Metric Standard M10 x 1.5 35.0 33.3 27 46.0 5.2 19.8 740 0.24
18564 icon_cad Metric Standard M12 x 1.75 38.0 36.5 30 54.0 5.6 22.2 1030 0.36
18565 icon_cad Metric Standard M16 x 2.0 44.5 43.6 35 65.0 6.3 27.0 1600 0.69
18566 icon_cad Metric Standard M20 x 2.5 57.0 55.6 41 81.0 9.5 36.5 2860 1.51
18567 icon_cad Metric Standard M24 x 3.0 63.5 61.1 44 90.4 10.3 39.7 3850 2.36
18568 icon_cad Metric Standard M30 x 3.5 76.0 74.6 55 112.7 12.7 47.6 6400 4.68
18569 icon_cad Metric Standard M36 x 4.0 89.0 87.3 63 131.8 14.3 55.6 8970 7.77
18570 icon_cad Metric Standard M42 x 4.5 95.0 93.6 73 152.4 15.1 60.3 11960 11.10
18571 icon_cad Metric Standard M48 x 5.0 101.6 107.9 82 174.6 17.5 69.8 16400 15.90
