Short Pull Ring Retractable Plungers
Jergens Short Pull Ring Retractable Plungers are designed for use in applications with limited space.
Features, Benefits, & Product Specifications:
- Body Material: Steel or Stainless Steel
- Nose Material: Steel, Stainless Steel, or Delrin
- Slight taper on the end of the plunger for easy alignment
Short Pull Ring Retractable Plungers
Select a part number for CAD drawings, price and stock availability.

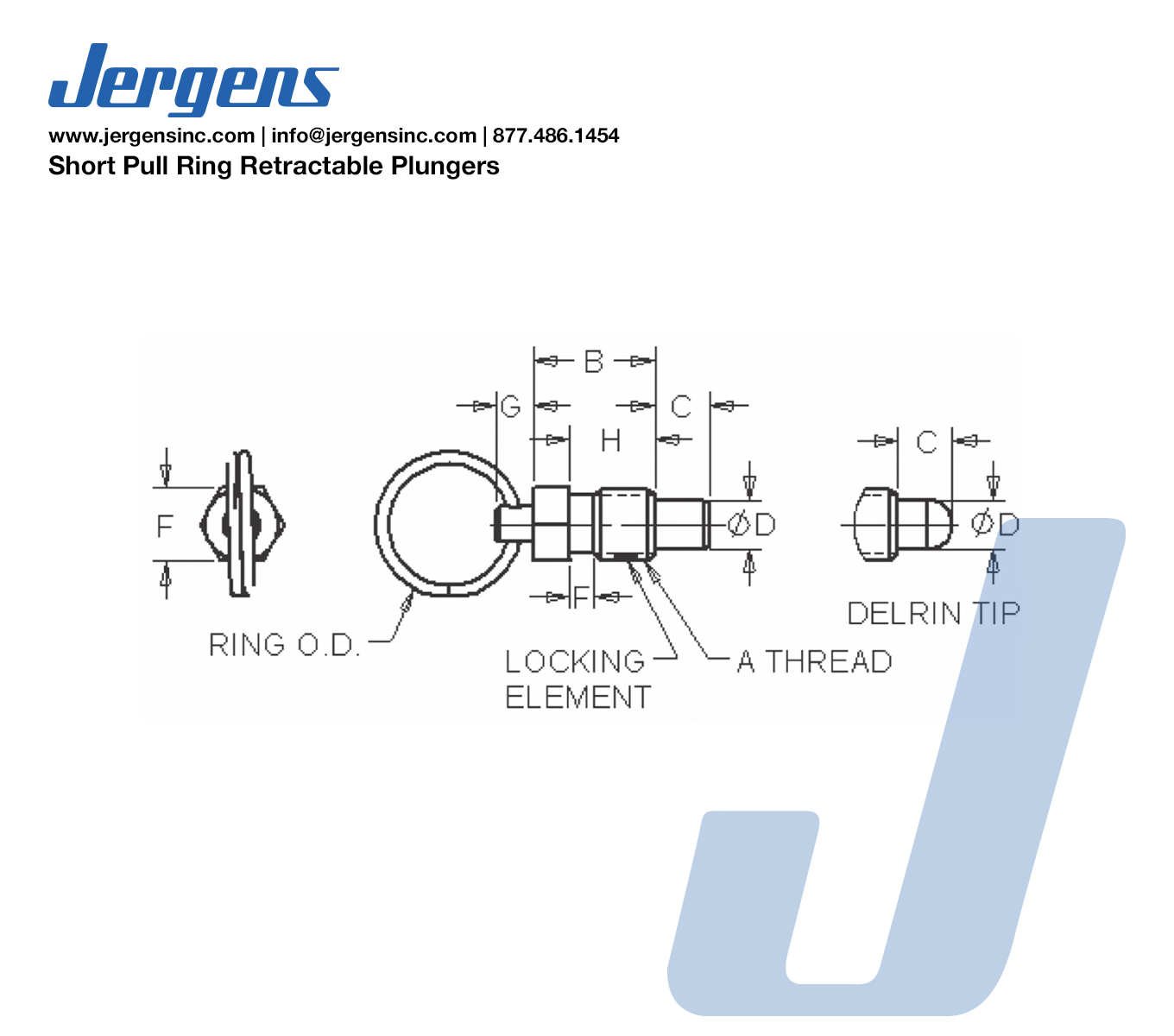

| Part Number | CAD | Unit | Body Material | Nose Material | Initial Force (lbs) | Final Force (lbs) | A | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | Ring Outer Diameter (In) | Net Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27441 |
|
Inch | Steel | Steel | 0.50 | 2.0 | 1/4-20 | 7/16 | 3/16 | 0.156 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 0.10 |
| 27442 |
|
Inch | Steel | Steel | 0.75 | 3.0 | 3/8-16 | 5/8 | 9/32 | 0.250 | 3/8 | 1/8 | 3/16 | 7/16 | 3/4 | 0.20 |
| 27443 |
|
Inch | Steel | Steel | 1.0 | 4.0 | 1/2-13 | 13/16 | 3/8 | 0.312 | 1/2 | 5/32 | 1/4 | 9/16 | 1 | 0.43 |
| 27444 |
|
Inch | Steel | Steel | 1.25 | 5.0 | 5/8-11 | 1 | 7/16 | 0.375 | 5/8 | 5/32 | 5/16 | 11/16 | 1 | 0.80 |
| 27560 | Inch | Steel | Delrin | 0.50 | 2.0 | 1/4-20 | 7/16 | 3/16 | 0.156 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 0.10 | |
| 27561 | Inch | Steel | Delrin | 0.75 | 3.0 | 3/8-16 | 5/8 | 9/32 | 0.250 | 3/8 | 1/8 | 3/16 | 7/16 | 3/4 | 0.20 | |
| 27562 | Inch | Steel | Delrin | 1.00 | 4.0 | 1/2-13 | 13/16 | 3/8 | 0.312 | 1/2 | 5/32 | 1/4 | 9/16 | 1 | 0.43 | |
| 27563 | Inch | Steel | Delrin | 1.25 | 5.0 | 5/8-11 | 1 | 7/16 | 0.375 | 5/8 | 5/32 | 5/16 | 11/16 | 1 | 0.80 | |
| 27564 | Inch | Stainless Steel | Delrin | 0.50 | 2.0 | 1/4-20 | 7/16 | 3/16 | 0.156 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 0.10 | |
| 27565 | Inch | Stainless Steel | Delrin | 0.75 | 3.0 | 3/8-16 | 5/8 | 9/32 | 0.250 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 0.20 | |
| 27566 | Inch | Stainless Steel | Delrin | 1.00 | 4.0 | 1/2-13 | 13/16 | 3/8 | 0.312 | 1/2 | 5/32 | 1/4 | 9/16 | 1 | 0.43 | |
| 27567 | Inch | Stainless Steel | Delrin | 1.25 | 5.0 | 5/8-11 | 1 | 7/16 | 0.375 | 5/8 | 5/32 | 5/16 | 11/16 | 1 | 0.80 | |
| 27800 |
|
Inch | Stainless Steel | Stainless Steel | 0.50 | 2.0 | 1/4-20 | 7/16 | 3/16 | 0.156 | 1/4 | 1/32 | 5/32 | 9/32 | 3/4 | 0.10 |
| 27801 |
|
Inch | Stainless Steel | Stainless Steel | 0.75 | 3.0 | 3/8-16 | 5/8 | 9/32 | 0.250 | 3/8 | 1/8 | 3/16 | 7/16 | 3/4 | 0.20 |
| 27802 |
|
Inch | Stainless Steel | Stainless Steel | 1.0 | 4.0 | 1/2-13 | 13/16 | 3/8 | 0.312 | 1/2 | 5/32 | 1/4 | 9/16 | 1 | 0.43 |
| 27803 |
|
Inch | Stainless Steel | Stainless Steel | 1.25 | 5.0 | 5/8-11 | 1 | 7/16 | 0.375 | 5/8 | 5/32 | 5/16 | 11/16 | 1 | 0.80 |
