Short Bushing Revolving Clamp Assemblies
Jergens Short Bushing Revolving Clamp Assemblies can achieve a quick hold-down of the workpiece with hand tightening, then loosen and revolve out of the way allowing users to save time for moderate-duty clamping. The case-hardened swivel pad uses the “tru-center” feature to maintain even, in-line pressure on the workpiece.
Features, Benefits, & Product Specifications:
-
Body Material: Malleable ASTM A47, GR32510
-
Finish: Black Oxide
-
Bushings: Hardened & Ground RC 56-60

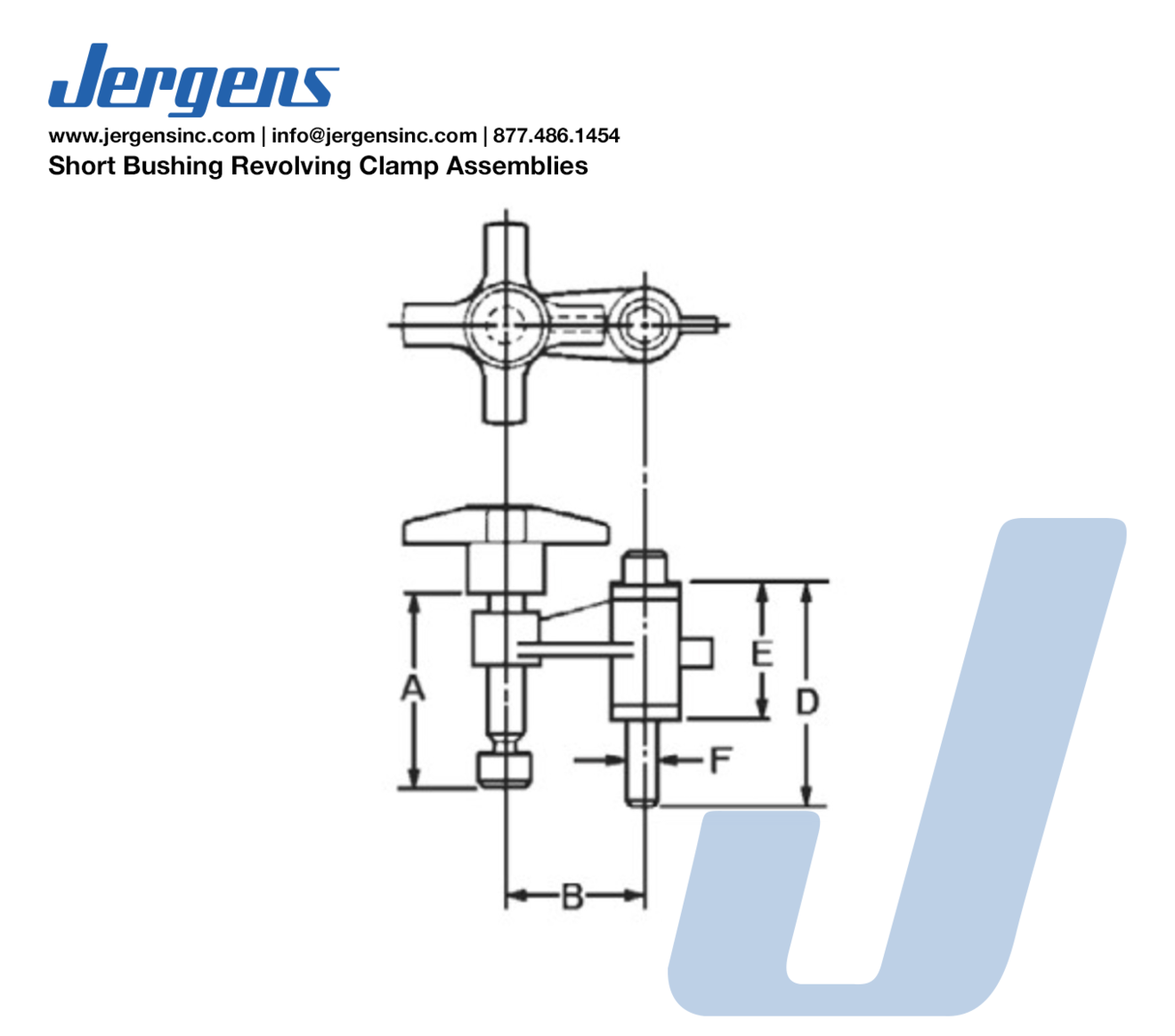

Short Bushing Revolving Clamp Assembly_LineArt
Short Bushing Revolving Clamp Assemblies
| Part Number | CAD | Unit | Description | A (In) | B (In) | D (in) | E (in) | F | Weight (lbs) | Base Part Number | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35101 |
|
Inch | Clamp Only | 2 | 1 1/2 | 3 1/4 | 1 1/2 | 3/8-16 | 0.7 | 35110 | |
| 35102 |
|
Inch | Clamp with Base | 2 | 1 1/2 | 3 1/4 | 1 1/2 | 3/8-16 | 0.7 | 35110 | |
| 35104 |
|
Inch | Clamp Only | 3 3/4 | 3 | 5 | 2 1/4 | 5/8-11 | 4.5 | 35111 | |
| 35105 |
|
Inch | Clamp with Base | 3 3/4 | 3 | 5 | 2 1/4 | 5/8-11 | 4.5 | 35111 | |
| 35107 |
|
Inch | Clamp Only | 3 3/4 | 4 | 5 | 2 1/4 | 5/8-11 | 4.8 | 35111 | |
| 35108 |
|
Inch | Clamp with Base | 3 3/4 | 4 | 5 | 2 1/4 | 5/8-11 | 4.5 | 35111 | |
| 35114 |
|
Inch | Clamp Only | 3 3/4 | 3 | 5 | 2 1/4 | 1/2-13 | 4.3 | 35112 | |
| 35115 |
|
Inch | Clamp with Base | 3 3/4 | 3 | 5 | 2 1/4 | 1/2-13 | 4.3 | 35112 | |
| 35117 |
|
Inch | Clamp Only | 2 | 1 1/2 | 3 1/4 | 1 1/2 | 5/16-18 | 0.7 | 35113 | |
| 35118 |
|
Inch | Clamp with Base | 2 | 1 1/2 | 3 1/4 | 1 1/2 | 5/16-18 | 0.7 | 35113 |
