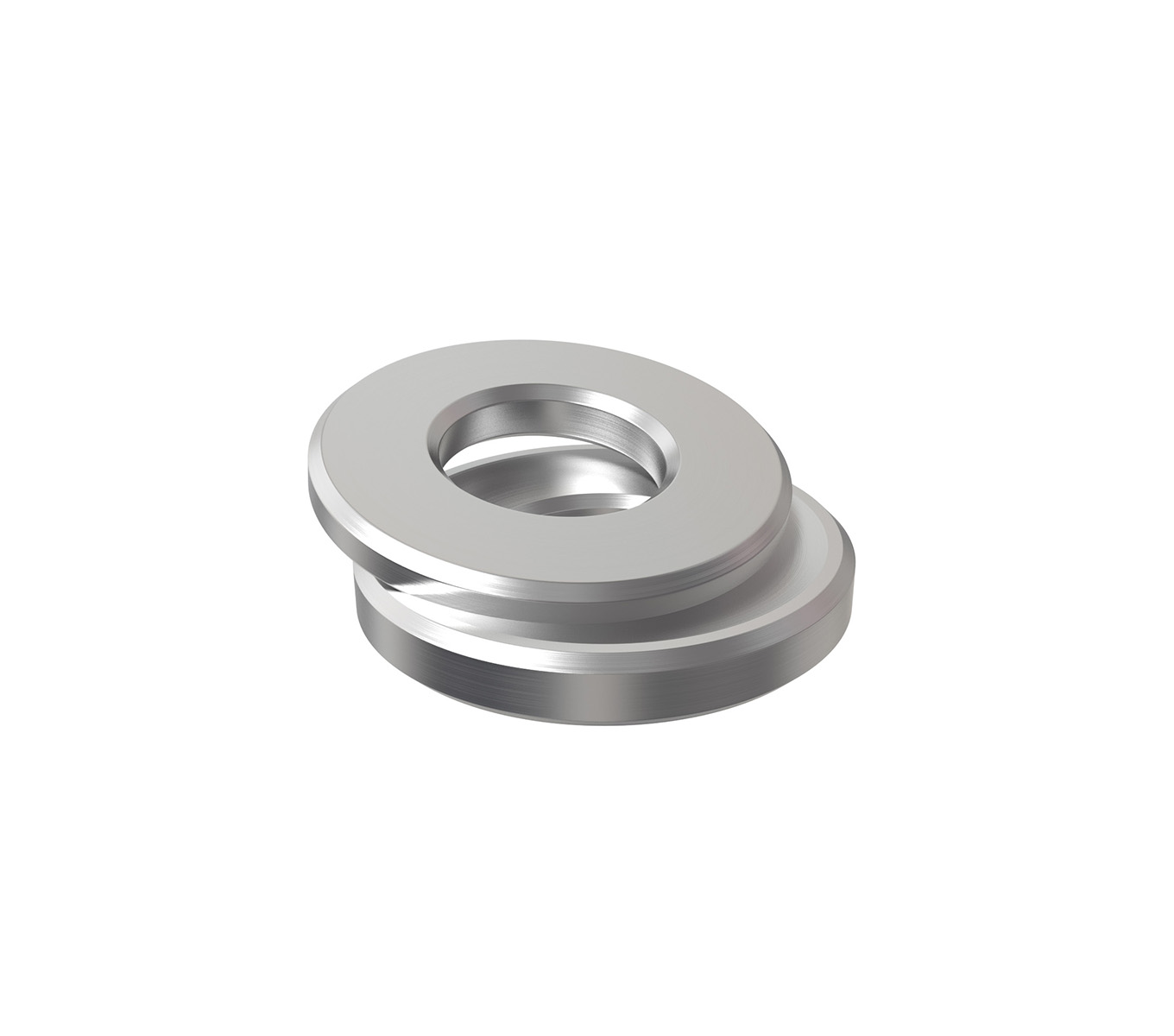

Self Aligning Washers (2 Piece)
Jergens Self Aligning Washers are ideally suited for joining machine sections that are out of parallel. They adjust themselves for a positive, firm base. With radius “E” and the angular 14° combination, line contact is formed around the two mating washer surfaces, allowing the two washers to seek misalignment in the companion clamping members. The heat-treated I.D. of the bottom concave piece is larger than the I.D. of the top convex section for free action. It is precision ground, and the sharp edges are removed.
Features, Benefits, & Product Specifications:
-
Material: Available in Low Carbon Steel and 303 Stainless Steel
-
Finish: Black Oxide (for Low Carbon Steel Washers)
-
Heat Treat: Case Hardened (for Low Carbon Steel Washers)
Self Aligning Washers (2 Piece)
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Material | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | Weight (lbs) | Upper Only Part Number | Lower Only Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41101 |
|
Inch | Steel | 3/16 | 3/16 | 1/2 | 13/64 | 15/64 | 3/4 | 0.01 | 41501 | 41301 |
| 41102 |
|
Inch | Steel | 1/4 | 3/16 | 5/8 | 17/64 | 19/64 | 1 | 0.01 | 41502 | 41302 |
| 41103 |
|
Inch | Steel | 5/16 | 7/32 | 3/4 | 11/32 | 23/64 | 1 | 0.01 | 41503 | 41303 |
| 41104 |
|
Inch | Steel | 3/8 | 7/32 | 7/8 | 13/32 | 15/32 | 1 1/2 | 0.03 | 41504 | 41304 |
| 41105 |
|
Inch | Steel | 1/2 | 9/32 | 1 1/8 | 17/32 | 19/32 | 2 | 0.08 | 41505 | 41305 |
| 41106 |
|
Inch | Steel | 5/8 | 3/8 | 1 3/8 | 21/32 | 23/32 | 2 1/4 | 0.13 | 41506 | 41306 |
| 41107 |
|
Inch | Steel | 3/4 | 13/32 | 1 5/8 | 25/32 | 27/32 | 2 1/2 | 0.20 | 41502 | 41302 |
| 41108 |
|
Inch | Steel | 7/8 | 17/32 | 1 3/4 | 29/32 | 31/32 | 2 1/2 | 0.33 | 41503 | 41303 |
| 41109 |
|
Inch | Steel | 1 | 9/16 | 2 | 1 1/32 | 1 3/32 | 3 1/2 | 0.41 | 41504 | 41304 |
| 41110 |
|
Inch | Steel | 1 1/8 | 5/8 | 2 1/4 | 1 5/32 | 1 7/32 | 3 1/2 | 0.77 | 41505 | 41305 |
| 41111 |
|
Inch | Steel | 1 1/4 | 5/8 | 2 1/4 | 1 9/32 | 1 11/32 | 4 | 0.62 | 41506 | 41306 |
| 41112 |
|
Inch | Steel | 1 1/2 | 11/16 | 2 3/4 | 1 17/32 | 1 19/32 | 4 1/2 | 0.85 | 41507 | 41307 |
| 41202 |
|
Inch | Stainless Steel | 1/4 | 3/16 | 5/8 | 9/32 | 5/16 | 3/4 | 0.01 | - | - |
| 41203 |
|
Inch | Stainless Steel | 5/16 | 1/4 | 3/4 | 11/32 | 3/8 | 1 | 0.01 | - | - |
| 41204 |
|
Inch | Stainless Steel | 3/8 | 1/4 | 7/8 | 13/32 | 7/16 | 1 1/4 | 0.03 | - | - |
| 41205 |
|
Inch | Stainless Steel | 1/2 | 5/16 | 1 1/8 | 17/32 | 9/16 | 1 1/2 | 0.08 | - | - |
| 41206 |
|
Inch | Stainless Steel | 5/8 | 5/16 | 1 3/8 | 21/32 | 11/16 | 1 3/4 | 0.13 | - | - |
| 41207 |
|
Inch | Stainless Steel | 3/4 | 3/8 | 1 5/8 | 25/32 | 25/32 | 2 1/4 | 0.20 | - | - |
| Part Number | CAD | Unit | Material | Bolt Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kgs) | Upper Only Part Number | Lower Only Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41102 |
|
Metric | Steel | M6 | 5 | 16 | 6.5 | 7.5 | 25 | 0.01 | 41502 | 41302 |
| 41103 |
|
Metric | Steel | M8 | 5.5 | 19 | 8.5 | 9 | 25 | 0.01 | 41503 | 41303 |
| 41104 |
|
Metric | Steel | M10 | 5.5 | 22 | 10.5 | 12 | 38 | 0.01 | 41504 | 41304 |
| 41105 |
|
Metric | Steel | M12 | 7 | 28 | 13.5 | 15 | 57 | 0.03 | 41505 | 41305 |
| 41106 |
|
Metric | Steel | M16 | 9.5 | 34 | 17 | 18 | 57 | 0.06 | 41506 | 41306 |
| 41157 |
|
Metric | Steel | M20 | 10.5 | 41 | 21 | 21.5 | 63.5 | 0.09 | 41557 | 41357 |
