Rubber Tip Spindles
Jergens Toggle Clamps encompass a range of standard styles and sizes. Manufactured to the highest quality, our toggle clamps enable you to work quickly and accurately and provide repeatable clamping performance for a wide range of applications and industries. We maintain a large inventory and are happy to help identify the right product for your application.
Features, Benefits, & Product Specifications:
-
Includes (2) jam nuts and (2) washers
Note(s):
-
⚠ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rubber Tip Spindles
Select a part number for CAD drawings, price and stock availability.

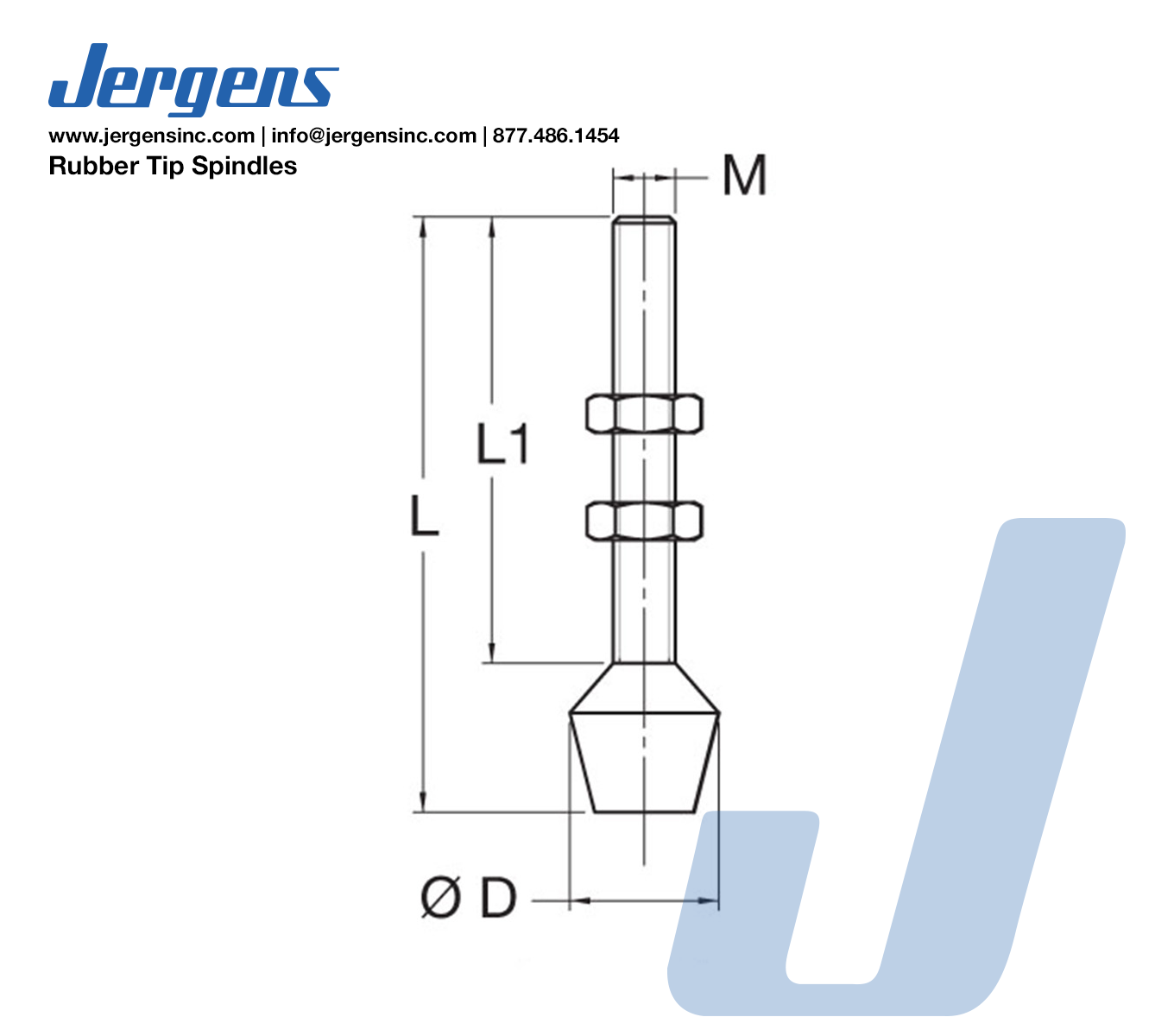

| Part Number | CAD | Unit | D (In) | L (In) | L1 (In) | M |
|---|---|---|---|---|---|---|
| 70058 | Inch | 0.59 | 2.16 | 1.65 | 1/4-20 | |
| 70059 | Inch | 0.71 | 2.16 | 1.53 | 5/16-18 | |
| 70060 | Inch | 0.91 | 3.50 | 2.71 | 3/8-16 | |
| 70061 | Inch | 0.35 | 0.78 | 0.63 | M4 X 0.7 | |
| 70062 | Inch | 0.47 | 1.14 | 0.94 | M5 X 0.8 | |
| 70063 | Inch | 0.71 | 1.77 | 1.14 | M8 X 1.25 | |
| 70064 | Inch | 0.59 | 1.77 | 1.30 | M6 X 1.0 | |
| 70065 | Inch | 0.71 | 2.16 | 1.53 | M8 X 1.25 | |
| 70180 | Inch | 0.47 | 1.30 | 0.94 | M5 X 0.8 | |
| 70181 | Inch | 0.71 | 2.55 | 1.92 | M8 X 1.25 | |
| 70182 | Inch | 0.91 | 3.33 | 2.55 | M10 X 1.5 | |
| 70183 | Inch | 1.26 | 6.70 | 5.78 | M16 X 2.0 |
