Rest Pads
Jergens Rest Pads are designed to be used when you need a larger hardened wearing surface for heavy-duty applications. Rest Pads can also be used as hardened work rests or as wear plates on your jigs and fixtures. By holding close tolerances on the D dimension (when replacement becomes necessary) your original tolerances are maintained within 0.0005" (0.013mm).
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened 75-77 R30N
Documents

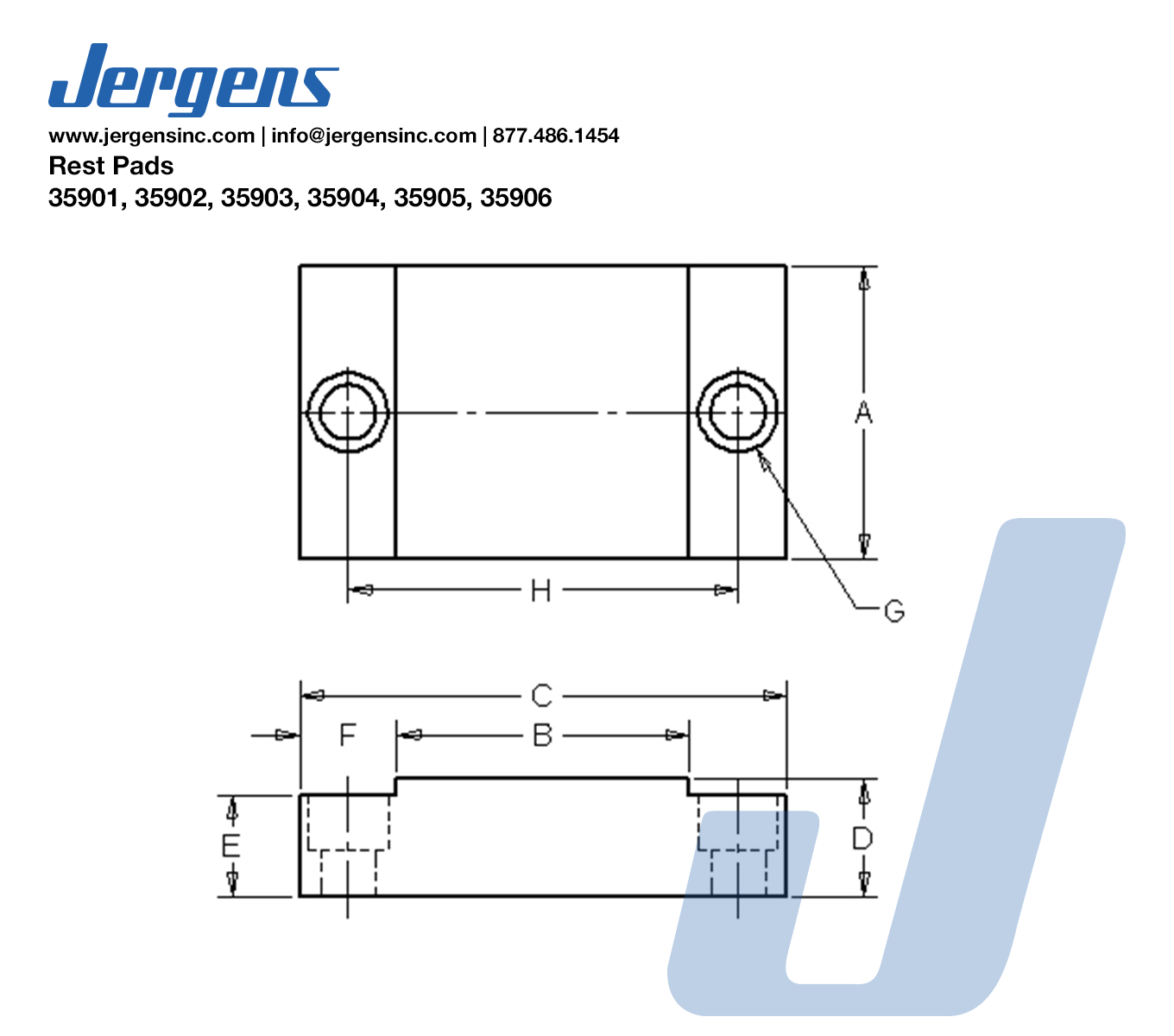

Rest Pad_LineArt
Rest Pads
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D +0.0005/-0.0000 | E (in) | F (in) | G | H (in) | I (in) | J (in) | Number of Holes | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35901 |
|
Inch | 1 | 1 | 2 | 0.475 | 3/8 | 1/2 | #10 | 1 1/2 | - | - | 2 | 0.22 | |
| 35902 |
|
Inch | 1 1/2 | 1 1/2 | 2 1/2 | 0.600 | 1/2 | 1/2 | 1/4 | 2 | - | - | 2 | 0.58 | |
| 35903 |
|
Inch | 2 | 2 | 3 | 0.725 | 1/2 | 1/2 | 1/4 | 2 1/2 | 1/2 | 1 | 4 | 1.06 | |
| 35904 |
|
Inch | 1 | 2 | 3 1/2 | 0.720 | 5/8 | 3/4 | 5/16 | 2 3/4 | - | - | 2 | 0.63 | |
| 35905 |
|
Inch | 1 | 3 | 4 1/2 | 0.720 | 5/8 | 3/4 | 5/16 | 3 3/4 | - | - | 2 | 0.84 | |
| 35906 |
|
Inch | 1 | 4 | 5 1/2 | 0.720 | 5/8 | 3/4 | 5/16 | 4 3/4 | - | - | 2 | 1.06 |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D +0.013/-0.000 | E (mm) | F (mm) | G | H (mm) | I (mm) | J (mm) | Number of Holes | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 35951 |
|
Metric | 25 | 25 | 50 | 12 | 10 | 13 | M5 | 38 | - | - | 2 | 0.01 | |
| 35952 |
|
Metric | 25 | 38 | 64 | 15 | 13 | 13 | M6 | 50 | - | - | 2 | 0.26 | |
| 35953 |
|
Metric | 50 | 50 | 75 | 18 | 12 | 13 | M6 | 64 | 13 | 25 | 4 | 0.48 | |
| 35954 |
|
Metric | 25 | 50 | 89 | 18 | 16 | 19 | M8 | 70 | - | - | 2 | 0.28 |
