Replaceable Grippers
Jergens Replaceable Grippers are available in "Hardened Tool Steel" and "Carbide-Tipped" materials. The points of the grippers embed themselves into the workpiece giving greater holding power with less actual pressure. Replaceable Grippers may be held in place using either a set screw on the flat of the gripper or the threaded hole in the back of the gripper. Use Replaceable Grippers to make hardened serrated jaws from Jergens soft top jaws or add the grippers to Jergens strap clamps for extra holding power. Use Replaceable Grippers anywhere that rough surfaces are being held in position for machining.
Carbide Tipped Grippers:
-
Body Material: Low Carbon Steel
-
Insert Material: Carbide
-
Finish: Zinc Plated
-
Serrations: 0.09" x 90°
Hardened Tool Steel Grippers:
-
Material: High-Speed Tool Steel
-
Finish: Black Oxide
-
Heat Treat: RC 60-62
-
Serrations: 0.09" x 90°
Replaceable Grippers

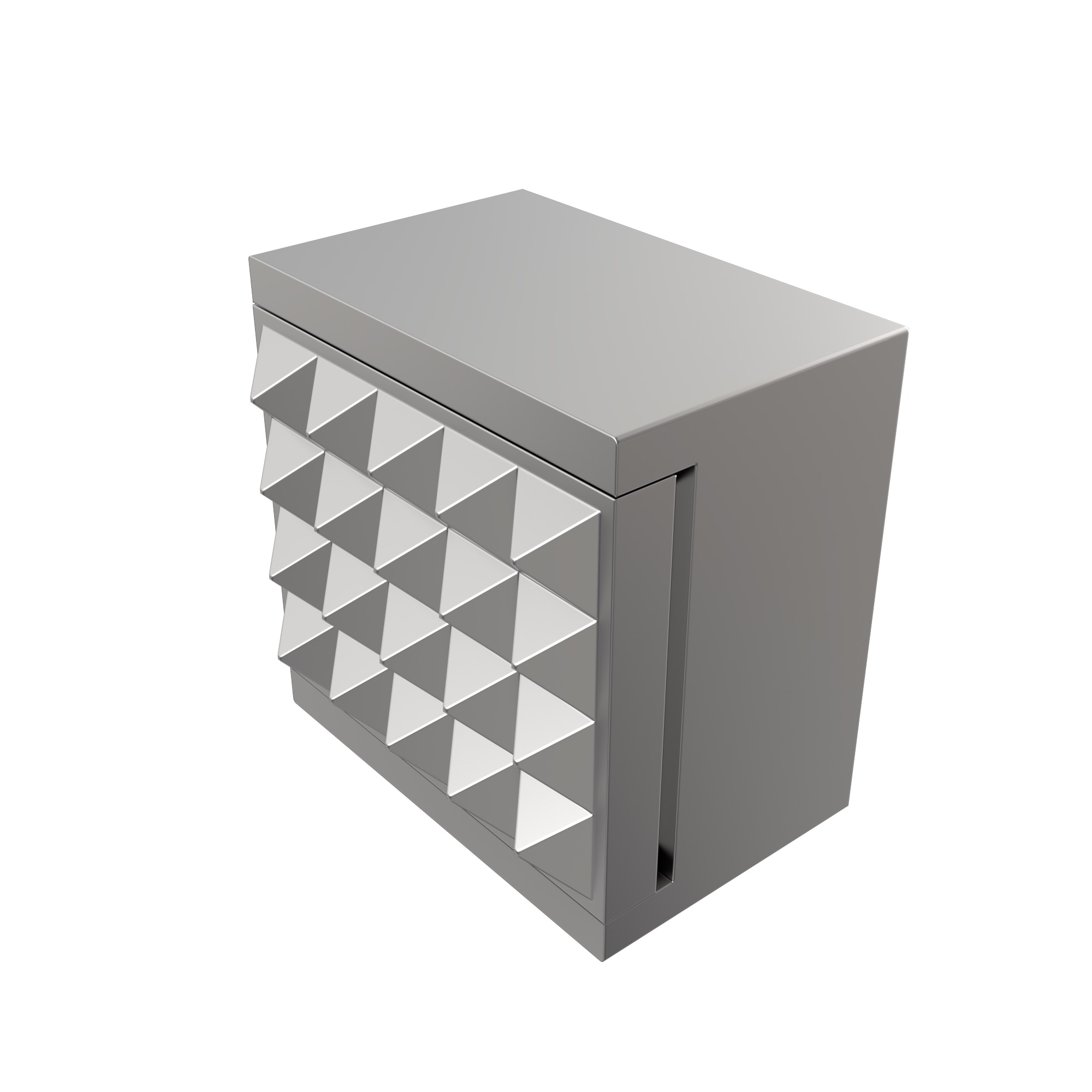

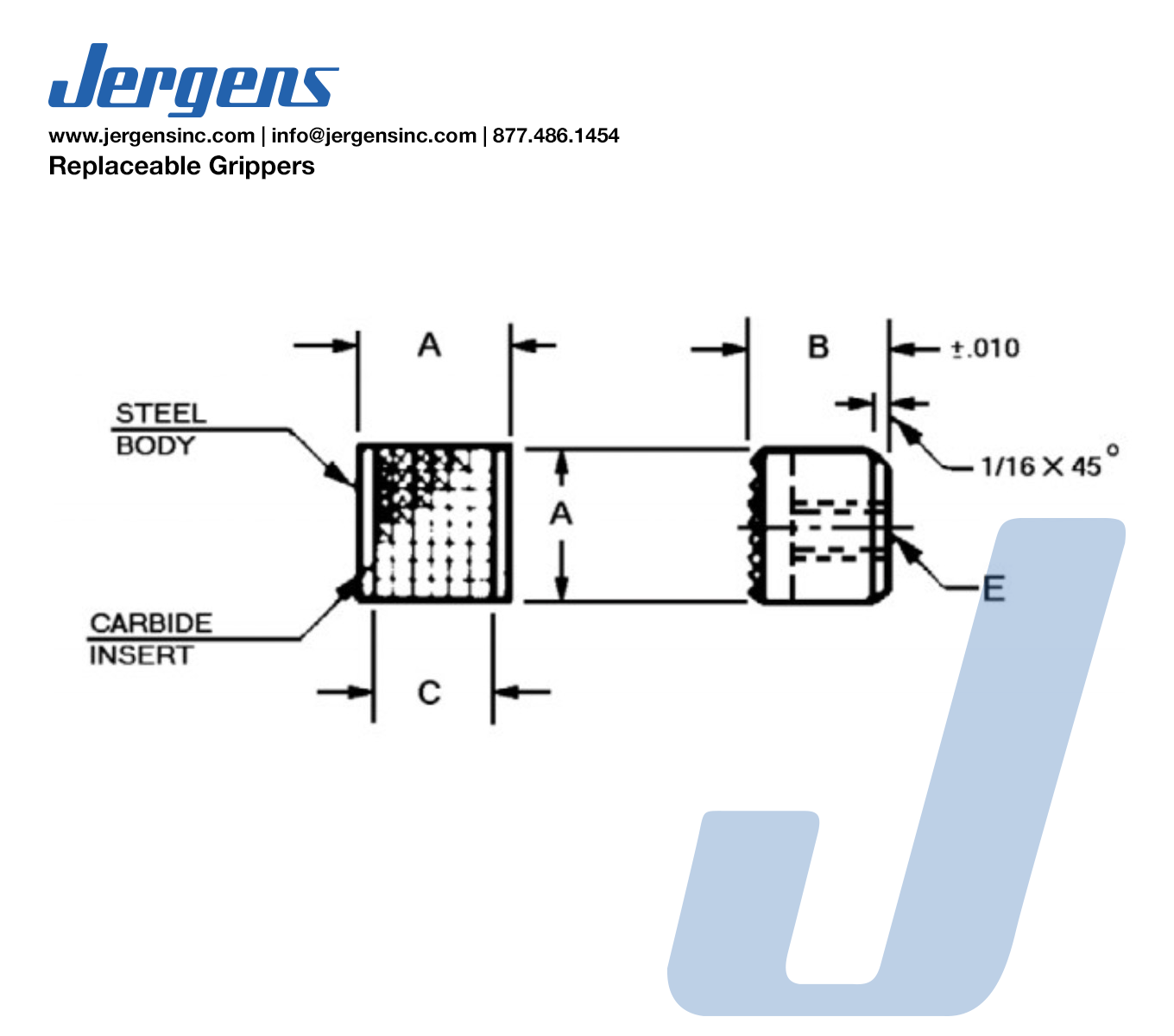

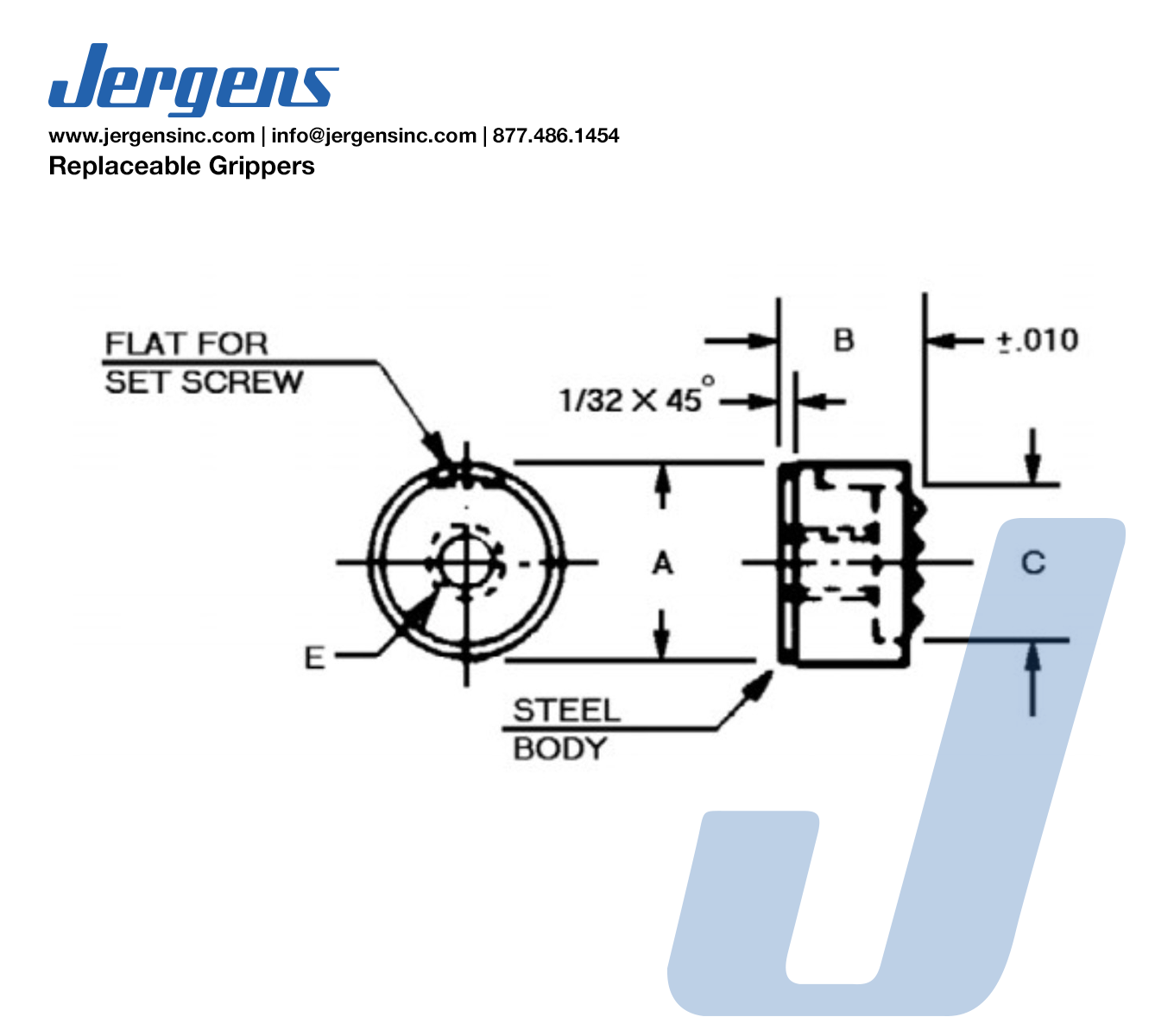

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Type | A (In) | B (In) | C (In) | E | Weight 10 Pcs (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 23702 |
|
Inch | Round | Carbide Tipped | 1/2 | 1/2 | 3/8 | 10-32 x 11/32 | 0.22 |
| 23703 |
|
Inch | Round | Carbide Tipped | 1/2 | 21/32 | 3/8 | 10-32 x 7/16 | 0.30 |
| 23704 |
|
Inch | Round | Carbide Tipped | 5/8 | 3/8 | 1/2 | 1/4-28 x 7/32 | 0.36 |
| 23705 |
|
Inch | Round | Carbide Tipped | 3/4 | 3/8 | 5/8 | 1/4-28 x 7/32 | 0.44 |
| 23706 |
|
Inch | Square | Carbide Tipped | 1/2 | 3/8 | 13/32 | 10-32 x 1/4 | 0.30 |
| 23707 |
|
Inch | Round | Carbide Tipped | 1/2 | 3/8 | 3/8 | 10-32 x 7/32 | 0.20 |
| 23708 |
|
Inch | Round | Carbide Tipped | 3/8 | 3/8 | 5/16 | 10-32 x 7/32 | 0.15 |
| 23710 |
|
Inch | Round | Hardened Tip | 3/8 | 3/8 | 3/8 | 10-32 x 3/8 | 0.15 |
| 23711 |
|
Inch | Round | Hardened Tip | 1/2 | 3/8 | 1/2 | 10-32 x 3/8 | 0.20 |
| 23712 |
|
Inch | Round | Hardened Tip | 1/2 | 1/2 | 1/2 | 10-32 x 1/2 | 0.22 |
| 23713 |
|
Inch | Round | Hardened Tip | 1/2 | 21/32 | 1/2 | 10-32 x 0.651 | 0.30 |
| 23714 |
|
Inch | Round | Hardened Tip | 5/8 | 3/8 | 5/8 | 1/4-28 x 3/8 | 0.36 |
| 23715 |
|
Inch | Round | Hardened Tip | 3/4 | 3/8 | 3/4 | 1/4-28 x 3/8 | 0.44 |
| 23716 |
|
Inch | Square | Hardened Tip | 1/2 | 3/8 | 1/2 | 10-32 x 3/8 | 0.30 |
