Radius Swing Clamp Assemblies
Jergens Radius Swing Clamp Assemblies feature fast-action, light-duty holding of plain surface work where quick movements are required in a restricted space. Their radial milled slots allow for a 90° swing. These clamp assemblies are ideally suited for placing and removing workpieces.
Note(s):
Part No. 14123 does not include a finger handle (see Related Products below).
Radius Swing Clamp Assemblies
Select a part number for CAD drawings, price and stock availability.

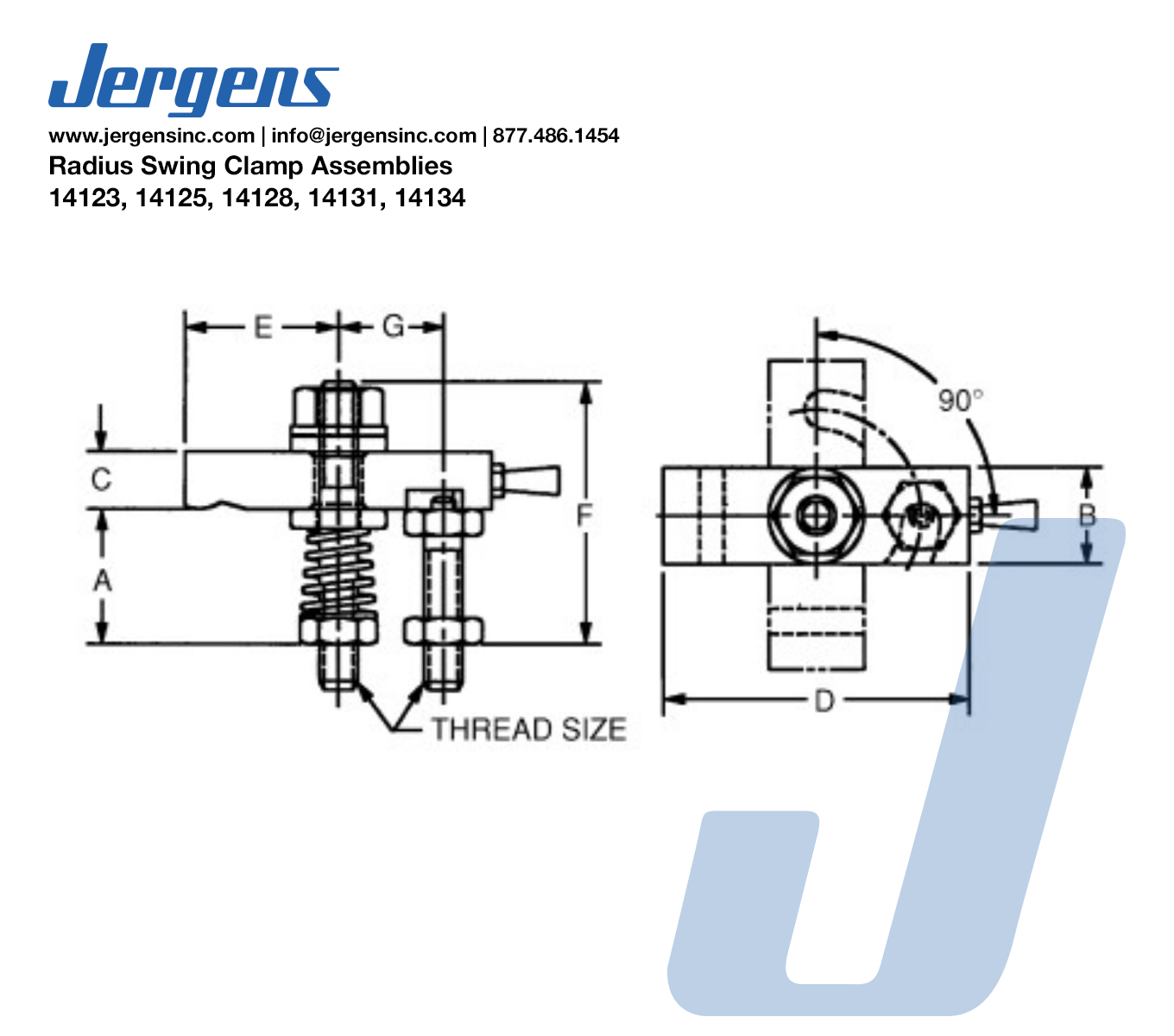

| Part Number | CAD | Unit | Thread Size | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14123 |
|
Inch | 1/4-20 | 7/8 | 5/8 | 3/8 | 2 | 1 | 1 5/8 | 11/16 | 0.25 |
| 14125 |
|
Inch | 3/8-16 | 1 3/4 | 1 1/4 | 5/8 | 3 1/2 | 1 1/2 | 2 15/16 | 1 1/4 | 1.10 |
| 14128 |
|
Inch | 1/2-13 | 1 1/2 | 1 1/2 | 3/4 | 4 1/2 | 1 13/16 | 3 | 1 15/16 | 2.00 |
| 14131 |
|
Inch | 5/8-11 | 3 1/8 | 1 3/4 | 7/8 | 5 | 2 1/16 | 5 1/16 | 2 3/16 | 3.25 |
| 14134 |
|
Inch | 3/4-10 | 2 1/4 | 1 3/4 | 1 | 5 | 2 1/16 | 4 3/8 | 2 3/16 | 3.88 |
