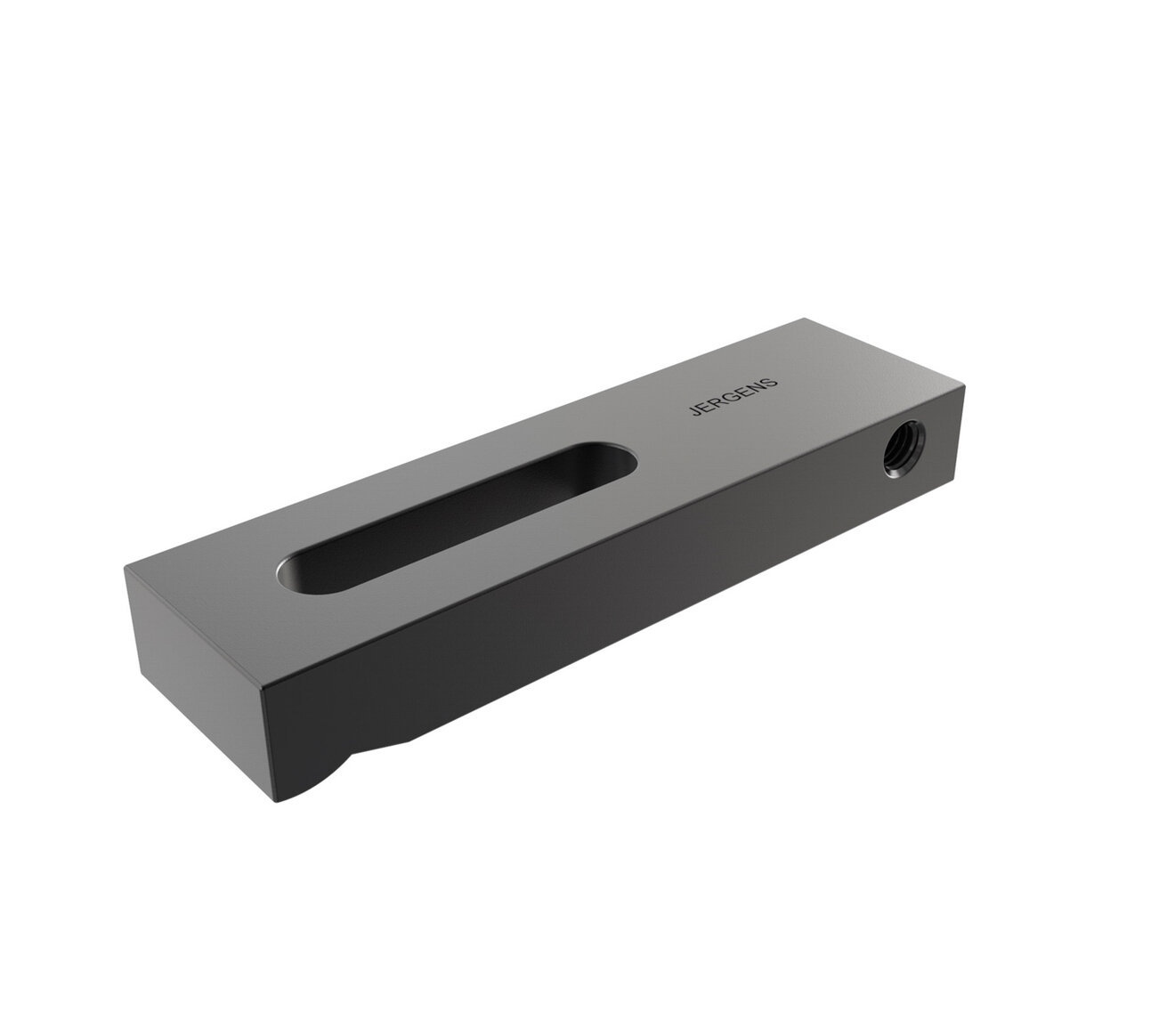

Radius Straps
Jergens Radius Strap's elongated slot allows for greater clamping force on the part.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened Rockwell 30N Scale 59-69
Radius Straps
Select a part number for CAD drawings, price and stock availability.

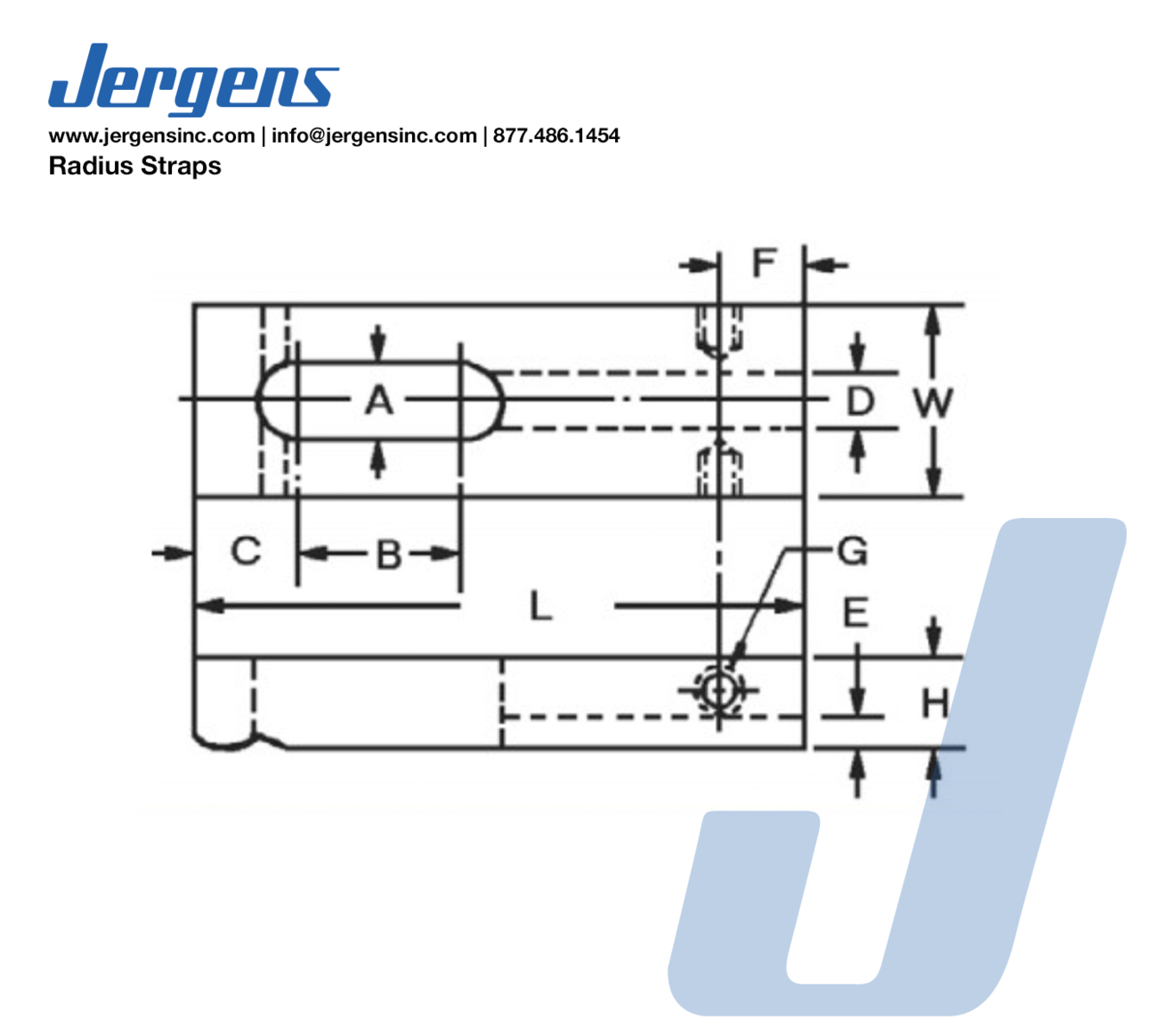

| Part Number | CAD | Unit | Bolt Size | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G | W (In) | H (In) | L (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36703 |
|
Inch | 1/4 or M6 | 9/32 | 5/8 | 3/8 | 1/4 | 1/8 | - | - | 5/8 | 3/8 | 2 | 0.09 |
| 36704 |
|
Inch | 3/8 or M10 | 13/32 | 1 1/8 | 11/16 | 3/8 | 3/16 | 1/2 | 5/16-18 | 1 1/4 | 5/8 | 3 1/2 | 0.61 |
| 36705 |
|
Inch | 1/2 or M12 | 17/32 | 1 1/4 | 7/8 | 3/8 | 1/4 | 1/2 | 5/16-18 | 1 1/2 | 3/4 | 4 1/2 | 1.12 |
| 36706 |
|
Inch | 5/8 or M16 | 21/32 | 1 1/2 | 1 1/16 | 3/8 | 1/4 | 3/4 | 5/16-18 | 1 3/4 | 7/8 | 5 | 1.75 |
| 36707 |
|
Inch | 3/4 | 25/32 | 1 1/2 | 1 1/8 | 3/8 | 1/4 | 3/4 | 5/16-18 | 1 3/4 | 1 | 5 | 2 |
| 36708 |
|
Inch | 1/4 or M6 | 9/32 | 1 | 3/8 | 1/4 | 1/8 | - | - | 5/8 | 3/5 | 2 1/2 | 0.11 |
| 36714 |
|
Inch | 1/2 or M12 | 17/32 | 2 | 7/8 | 3/8 | 1/4 | 1/2 | 5/16-18 | 1 1/2 | 3/4 | 6 | 1.56 |
| 36715 |
|
Inch | 5/8 or M16 | 21/32 | 2-1/2 | 1-1/16 | 3/8 | 1/4 | 3/4 | 5/16-18 | 1 3/4 | 7/8 | 7 | 2.44 |
| 36716 |
|
Inch | 3/4 | 25/32 | 1-1/2 | 1-1/8 | 3/8 | 1/4 | 3/4 | 5/16-18 | 1 3/4 | 1 | 7 | 2.70 |
| 36717 |
|
Inch | 5/16 | 11/32 | 3/4 | 9/16 | 1/4 | 1/4 | - | - | 7/8 | 1/2 | 2 1/2 | 0.20 |
| 36718 |
|
Inch | 5/16 | 11/32 | 1 1/4 | 9/16 | 1/4 | 1/4 | - | - | 7/8 | 1/2 | 3 1/2 | 0.25 |
| 36719 |
|
Inch | 3/8 or M10 | 13/32 | 1 5/8 | 11/16 | 3/8 | 3/16 | 1/2 | 5/16-18 | 1 1/4 | 5/8 | 4 1/2 | 0.71 |
