Radius End Flange Nut Clamp Assemblies
Jergens Radius End Flange Nut Clamp Assemblies provide heavy-duty clamping of plain surfaces with a spherical flange nut and a spherical washer for angular flexibility. A long, true-milled slot allows greater clearance for placing and removing work. Each clamp assembly features a spring-loaded stud for quick release.
Note(s):
-
"G" dimension represents an optimum dimension.
-
Part No. 14103 does not include finger a handle (see Related Products below).
Radius End Flange Nut Clamp Assemblies

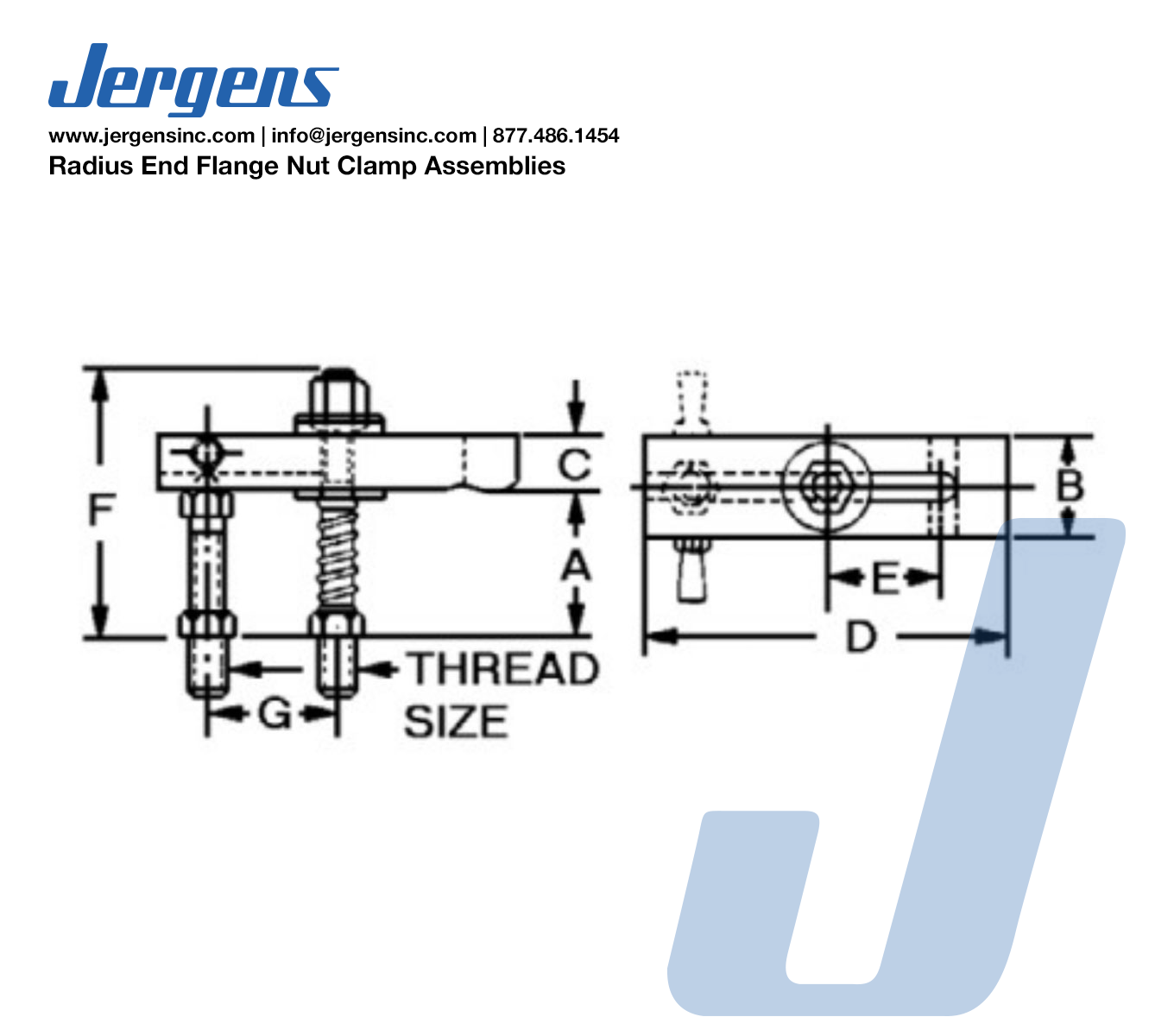

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Thread Size | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14103 |
|
Inch | 1/4-20 | 7/8 | 5/8 | 3/8 | 2 | 5/8 | 1 5/8 | 7/8 | 0.25 |
| 14104 |
|
Inch | 1/4-20 | 7/8 | 5/8 | 3/8 | 2 1/2 | 1 | 1 5/8 | 7/8 | 0.28 |
| 14105 |
|
Inch | 3/8-16 | 1 3/4 | 1 1/4 | 5/8 | 3 1/2 | 1 1/8 | 2 15/16 | 1 7/16 | 1.10 |
| 14108 |
|
Inch | 1/2-13 | 1 1/2 | 1 1/2 | 3/4 | 4 1/2 | 1 1/4 | 3 | 1 7/8 | 2 |
| 14110 |
|
Inch | 1/2-13 | 1 1/2 | 1 1/2 | 3/4 | 6 | 1 1/2 | 3 | 1 7/8 | 2.44 |
| 14111 |
|
Inch | 5/8-11 | 3 1/8 | 1 3/4 | 7/8 | 5 | 1 1/2 | 5 1/16 | 2 | 3.25 |
| 14113 |
|
Inch | 5/8-11 | 3 1/8 | 1 3/4 | 7/8 | 7 | 2 1/2 | 5 1/16 | 2 | 3.88 |
| 14114 |
|
Inch | 3/4-10 | 2 1/4 | 1 3/4 | 1 | 5 | 1 1/2 | 4 3/8 | 2 1/8 | 3.88 |
| 14116 |
|
Inch | 3/4-10 | 2 1/4 | 1 3/4 | 1 | 7 | 2 1/2 | 4 3/8 | 2 1/8 | 4.85 |
| 14117 |
|
Inch | 5/16-18 | 1 1/8 | 7/8 | 1/2 | 2 1/2 | 3/4 | 2 1/4 | 15/16 | 0.75 |
| 14118 |
|
Inch | 5/16-18 | 1 1/8 | 7/8 | 1/2 | 3 1/2 | 1 1/4 | 2 1/4 | 15/16 | 0.85 |
| 14119 |
|
Inch | 3/8-16 | 1 3/4 | 1 1/4 | 5/8 | 4 1/2 | 1 5/8 | 2 15/16 | 1 7/16 | 1.20 |
