Quick-Loc™ Spacer Studs
Jergens Quick-Loc™ Spacer Studs leave space between the bottom of the top tooling or workpiece and the top of the Quick-Loc™ Receiver. This space prevents the Quick-Loc™ Receiver from being damaged due to a tool producing a thru-hole or milling an outside edge.
Features, Benefits, & Product Specifications:
-
Material: A2 Tool Steel
-
Finish: Black Oxide
-
Heat Treat: Thru Hardened, RC 50-54
Quick-Loc™ Spacer Studs

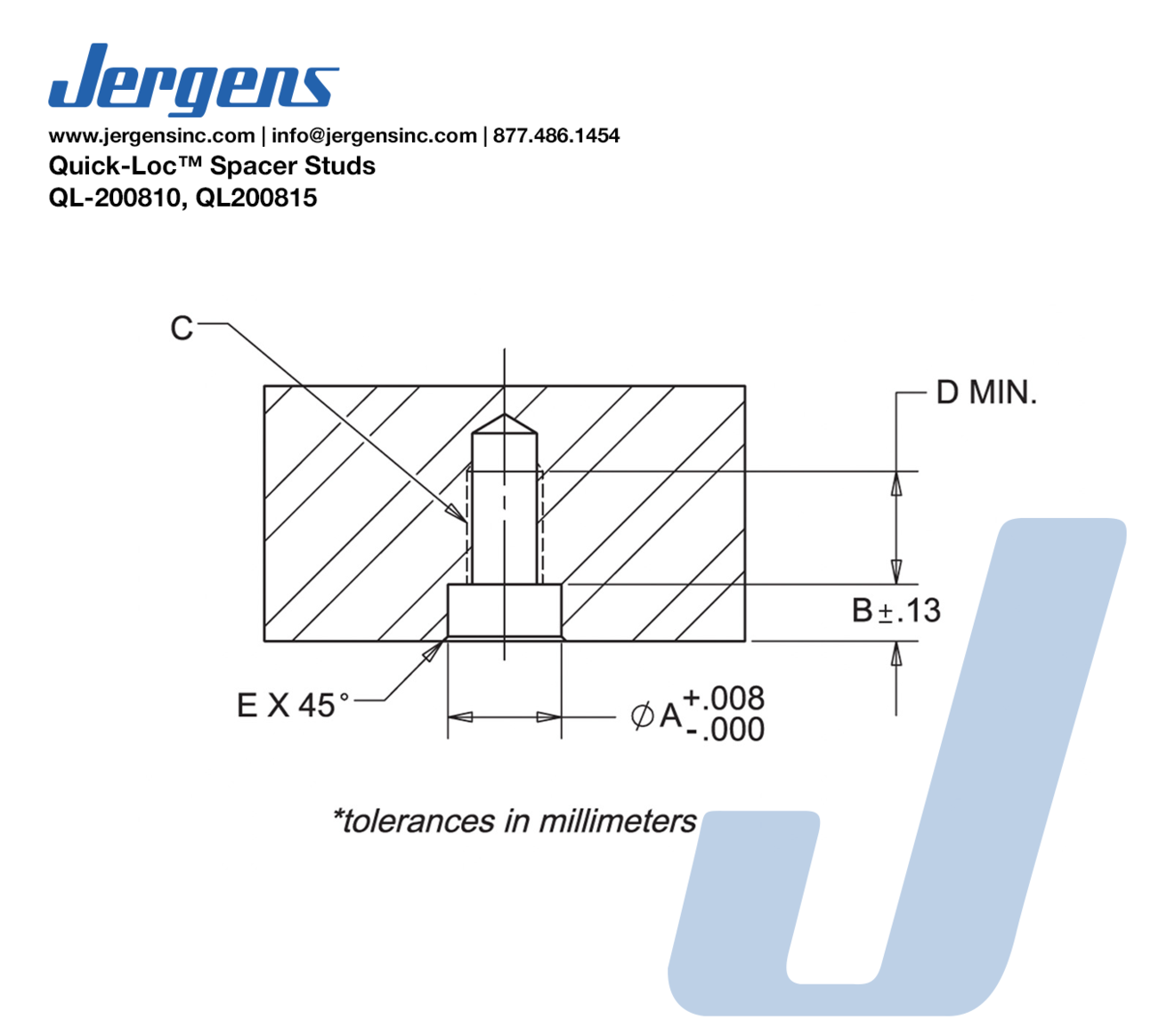

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (mm) | B (mm) | C | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QL-200810 |
|
Metric | 12 | 16 | M8 X 1.25 | 10 | 5 | 22 | 6 | 25 | 10 | 0.06 |
| QL-200815 |
|
Metric | 16 | 20 | M10 X 1.5 | 11 | 5 | 22 | 8 | 29 | 10 | 0.10 |
