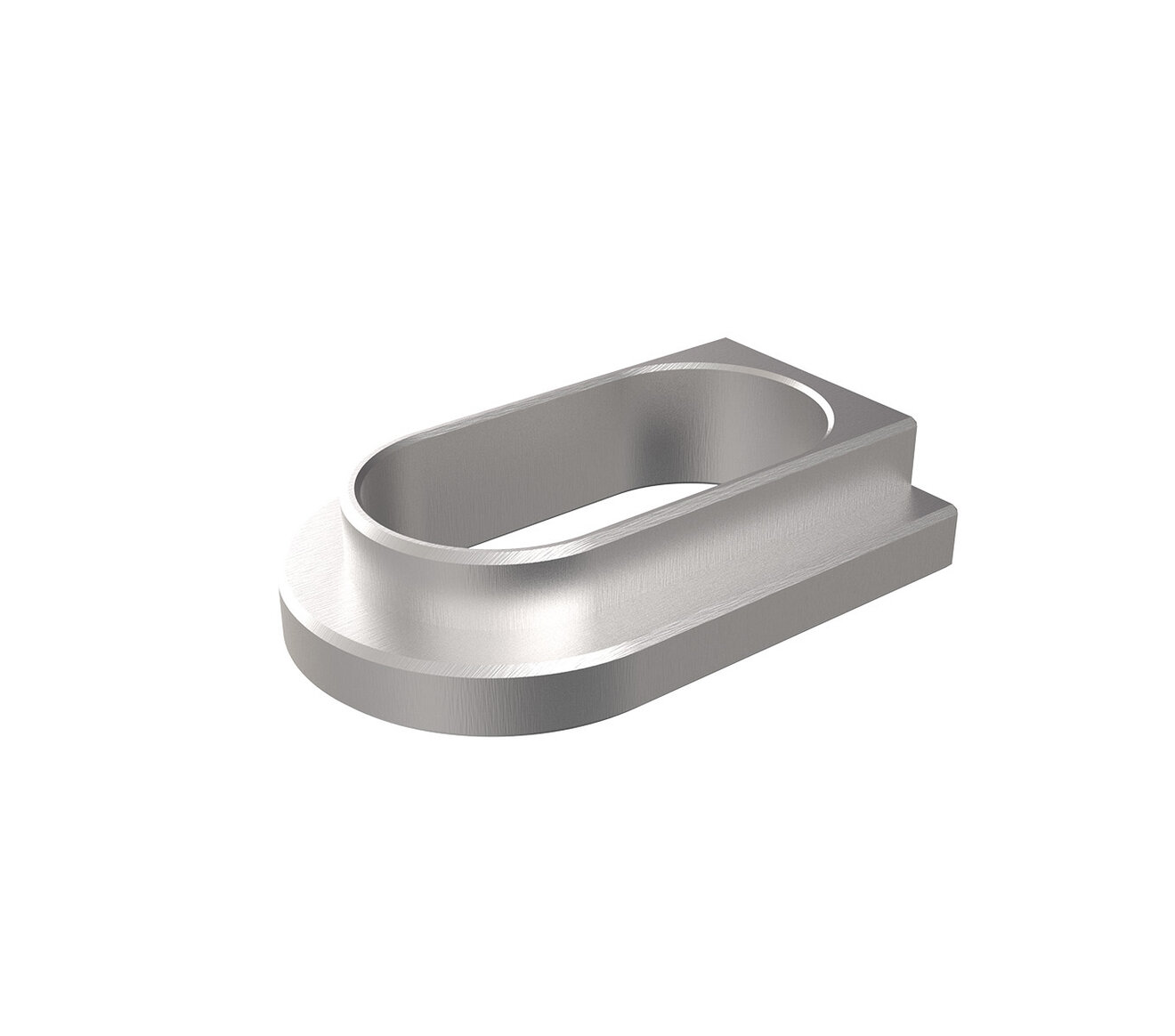

Quick-Loc™ Keys

Jergens Quick-Loc™ Keys are used for aligning any of our Quick-Loc™ elements with bottom keyways to the T-slots of a machine table or rotary face.

Features, Benefits, & Product Specifications:

Select a part number for CAD drawings, price and stock availability.

Inch Metric

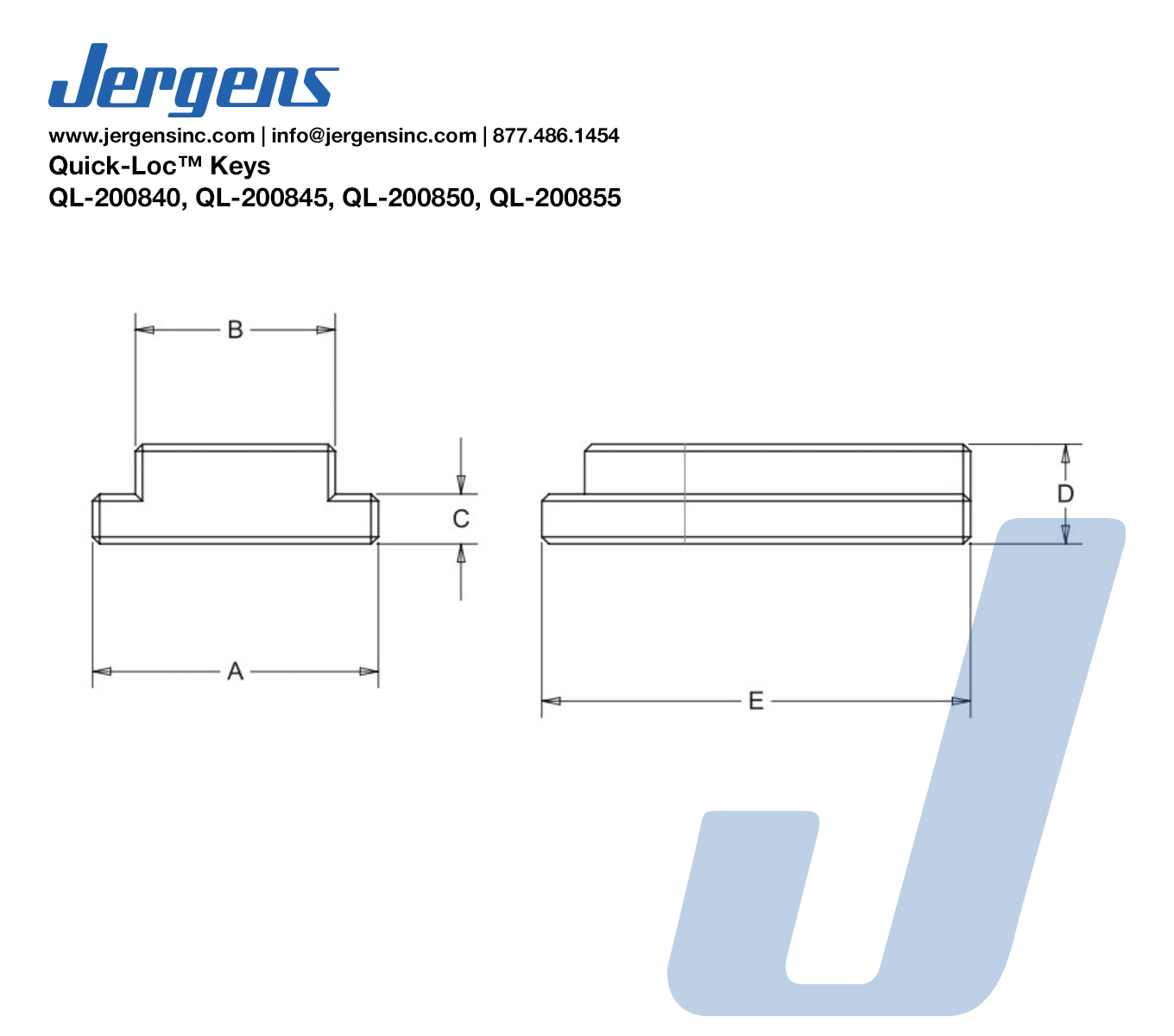

Part Number	Unit	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)
QL-200840	Metric	20	14	3.5	7	31	0.01
QL-200845	Metric	20	16	3.5	7	31	0.014
QL-200850	Metric	20	18	3.5	7	31	0.014
QL-200855	Metric	20	20	-	7	31	0.02
