Quick-Loc™ ER Collet Fixtures
Jergens Quick-Loc™ ER Collet Fixtures provide a simple and low-profile solution for clamping cylindrical workpieces.
Features, Benefits, & Product Specifications:
-
Body (Single Piece) Material: Hardened Alloy Steel
-
Accepts standard ER40 collets (not included)
-
Includes spanner style collet nut
-
Includes (4) Quick-Loc™ Pull Studs installed
-

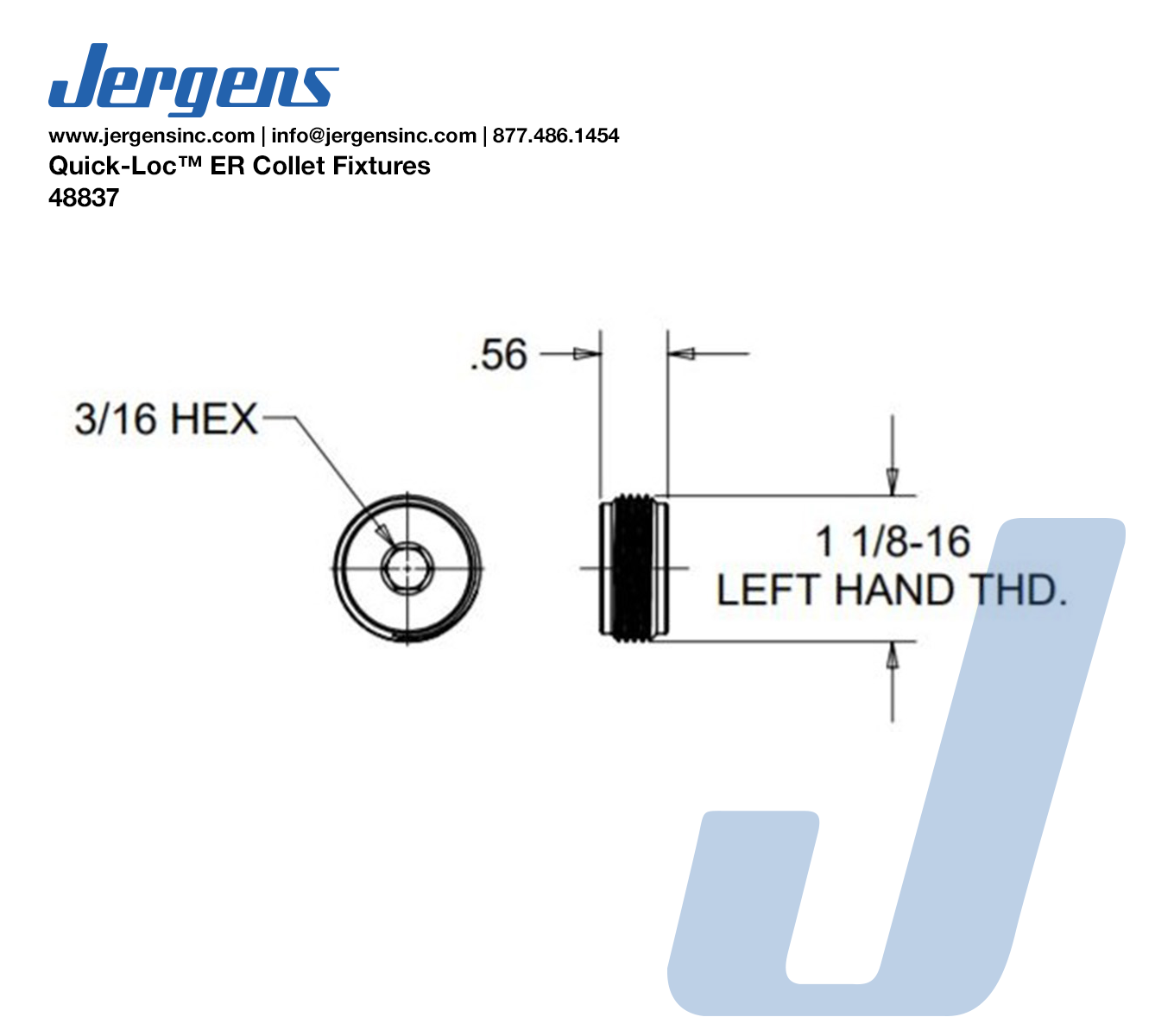

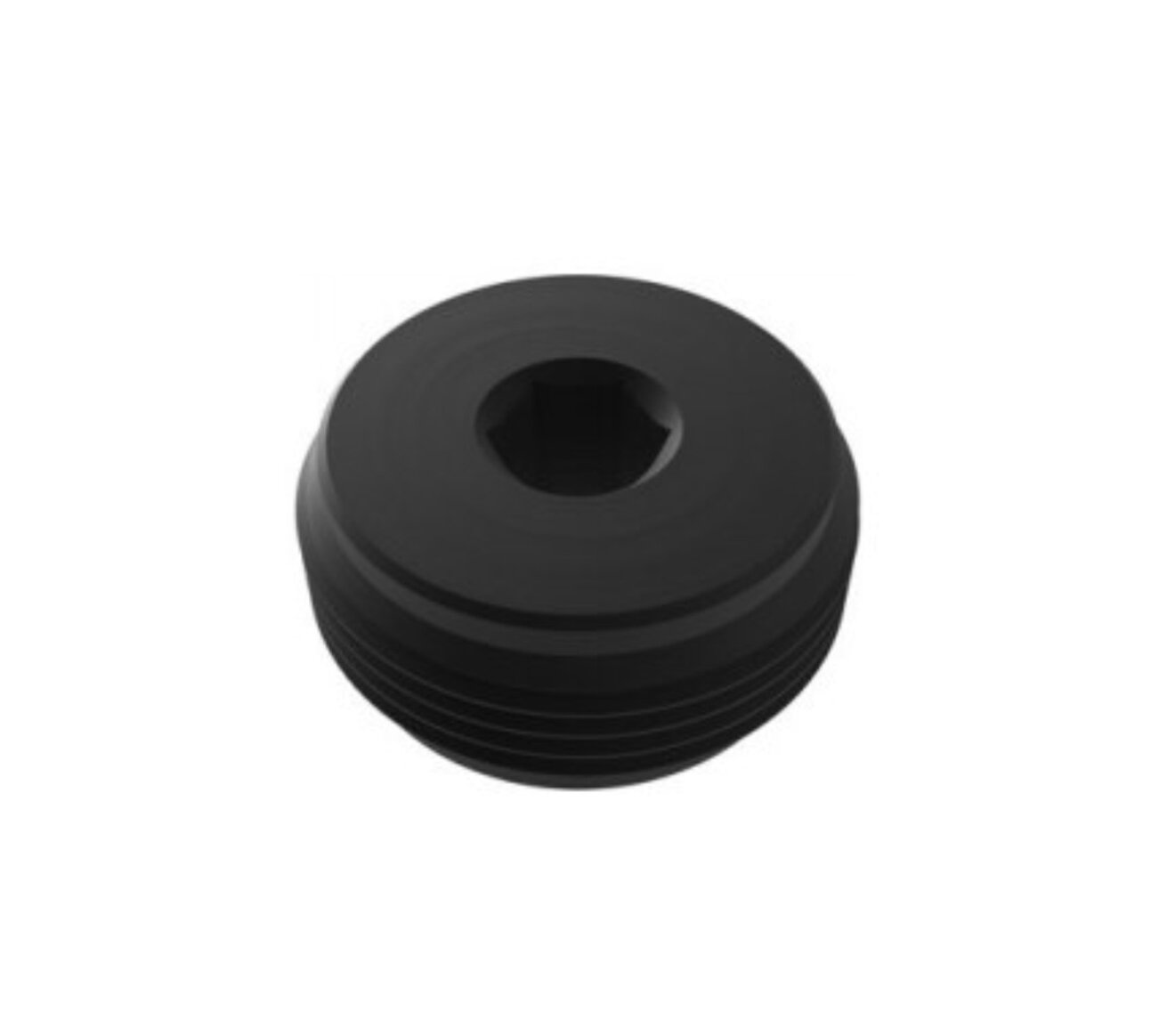

Optional stop screw (Part No. 48837) permits repeatable part loading, left hand thread prevents back off when tightening collet nut
Quick-Loc™ ER Collet Fixtures
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Description | Weight (lbs) |
|---|---|---|---|---|
| 48837 | Inch | Stop Screw | 0.11 | |
| QL-ER40-52 |
|
Inch | Quick-Loc™ Collet Fixture | 4.9 |

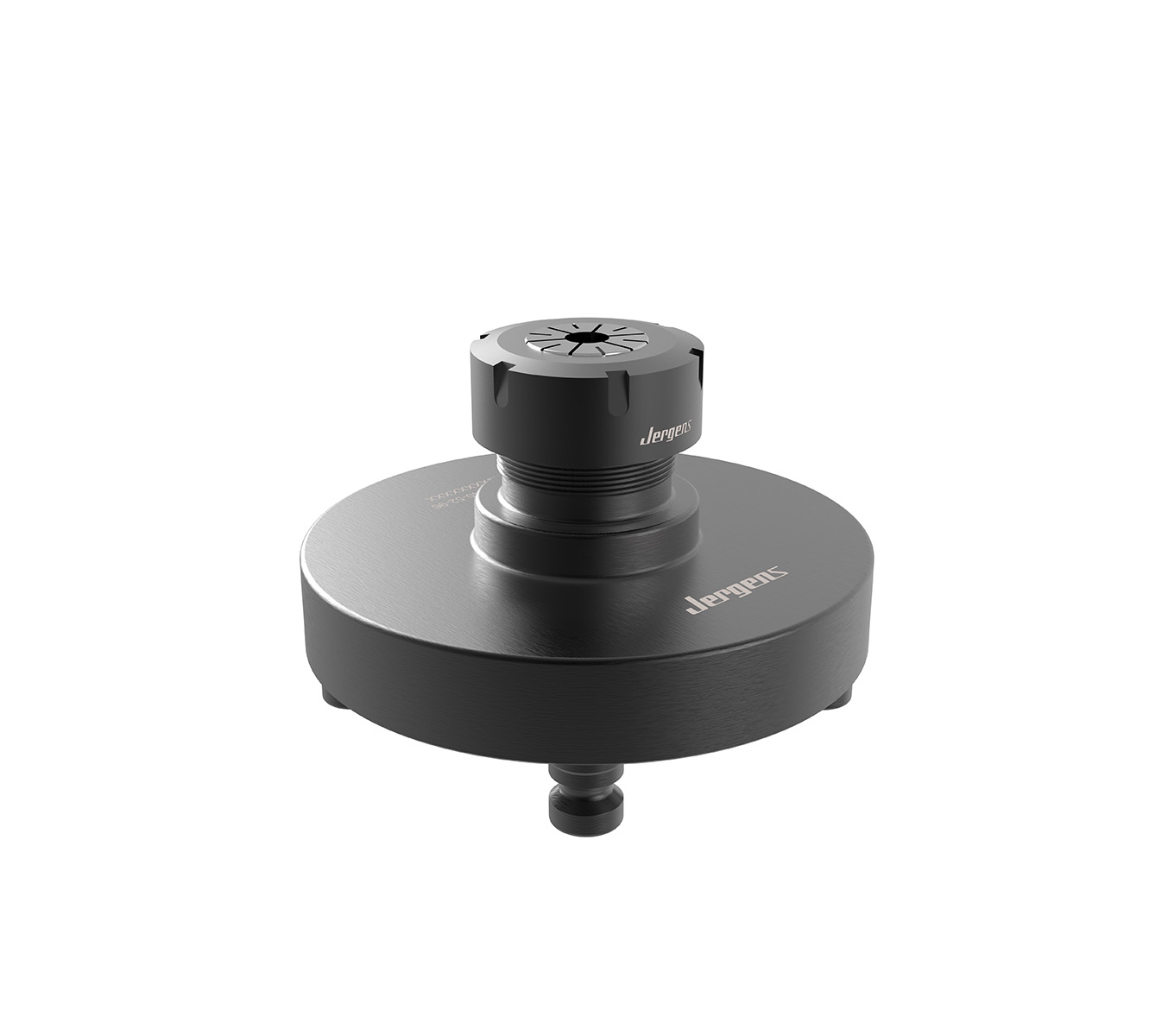

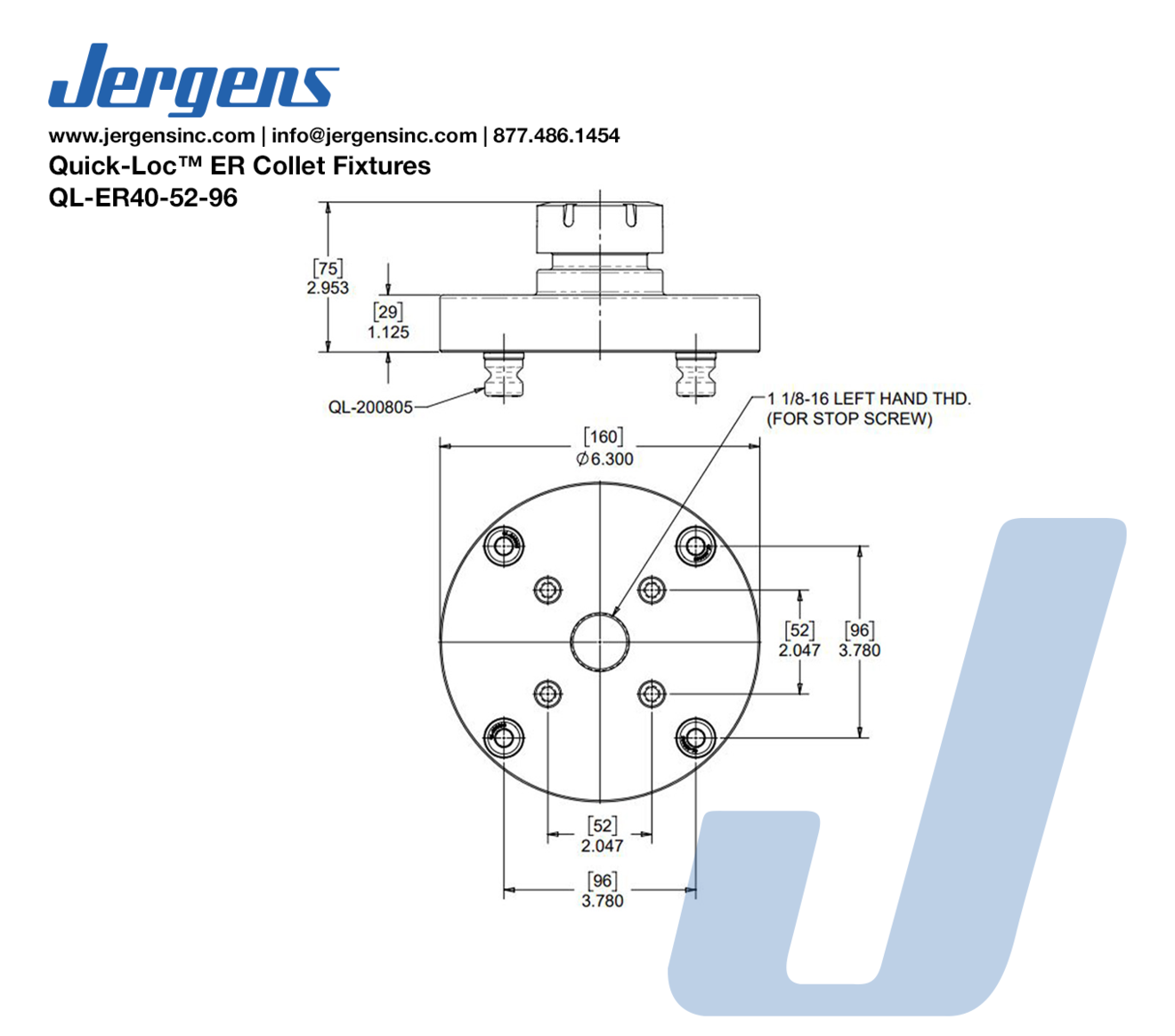

| QL-ER40-52-96 |
|
Inch | Quick-Loc™ Collet Fixture | 11.4 |
| Part Number | CAD | Unit | Description | Weight (kgs) |
|---|---|---|---|---|
| 48837 | Metric | Stop Screw | 0.05 | |
| QL-ER40-52 |
|
Metric | Quick-Loc™ Collet Fixture | 2.22 |
| QL-ER40-52-96 |
|
Metric | Quick-Loc™ Collet Fixture | 5.17 |
