Quick Lock Hand Knobs
Jergens Quick Lock Hand Knobs are used to save time when a knob must be completely removed from the stud. After approximately a one-quarter turn of the hand knob, it can be tilted at an angle and removed from the stud. They are recommended for use in light-duty applications.
Features, Benefits, & Product Specifications:
-
Material: Class 40 Gray Iron
-
Finish: Zinc Plated
-
Thread: Class 2B-UNC
Quick Lock Hand Knobs
Select a part number for CAD drawings, price and stock availability.

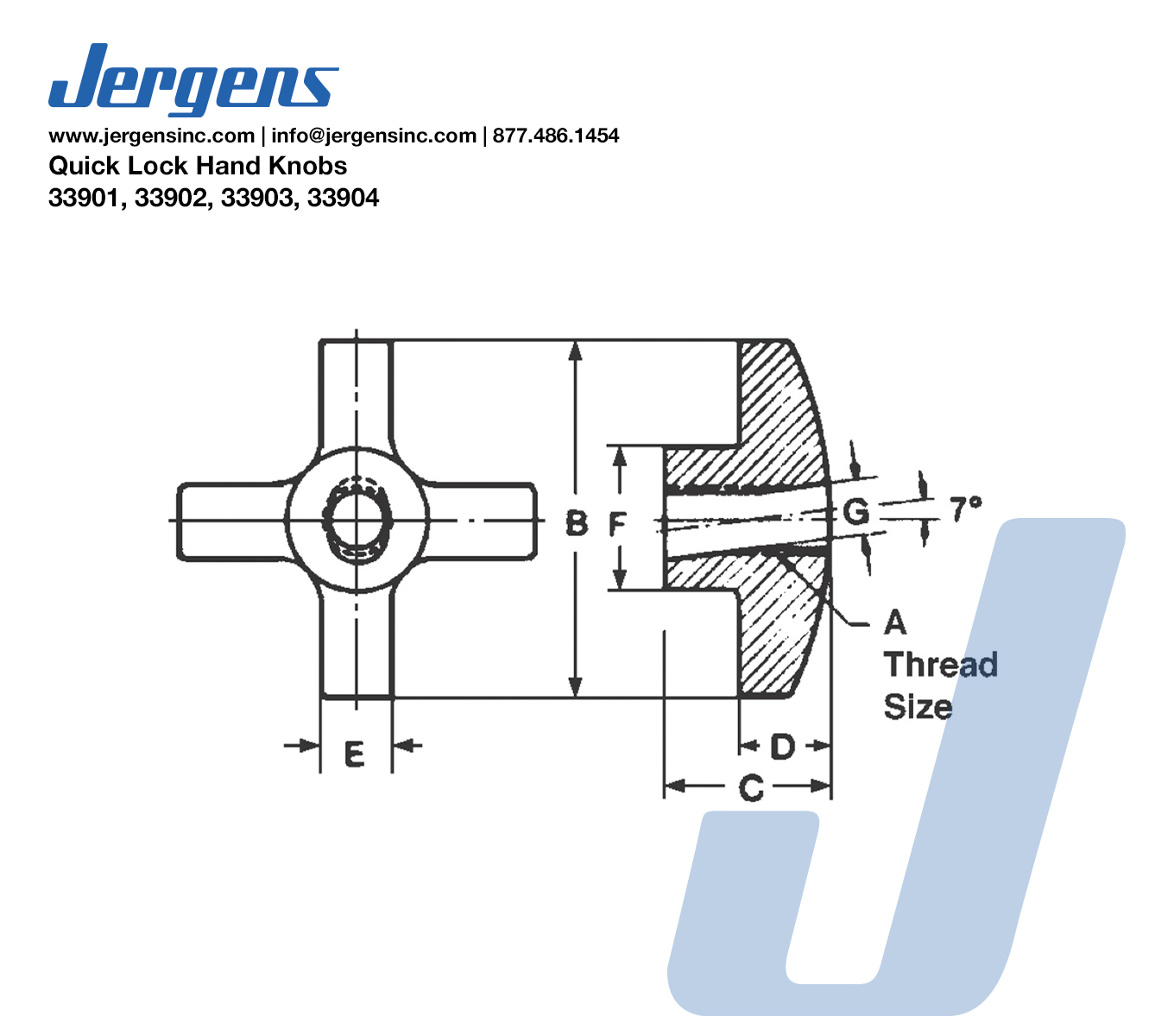

| Part Number | CAD | Unit | Thread Size A | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 33901 |
|
Inch | 1/4-20 | 1 1/8 | 11/16 | 5/16 | 5/16 | 9/16 | 17/64 | 0.06 |
| 33902 |
|
Inch | 3/8-16 | 2 3/16 | 1 | 1/2 | 1/2 | 7/8 | 25/64 | 0.27 |
| 33903 |
|
Inch | 1/2-13 | 3 | 1 1/4 | 5/8 | 5/8 | 1 7/16 | 33/64 | 0.72 |
| 33904 |
|
Inch | 5/8-11 | 3 | 1 1/4 | 5/8 | 5/8 | 1 7/16 | 41/64 | 0.69 |
