Quick Change Fixture Plates Vise Accessories

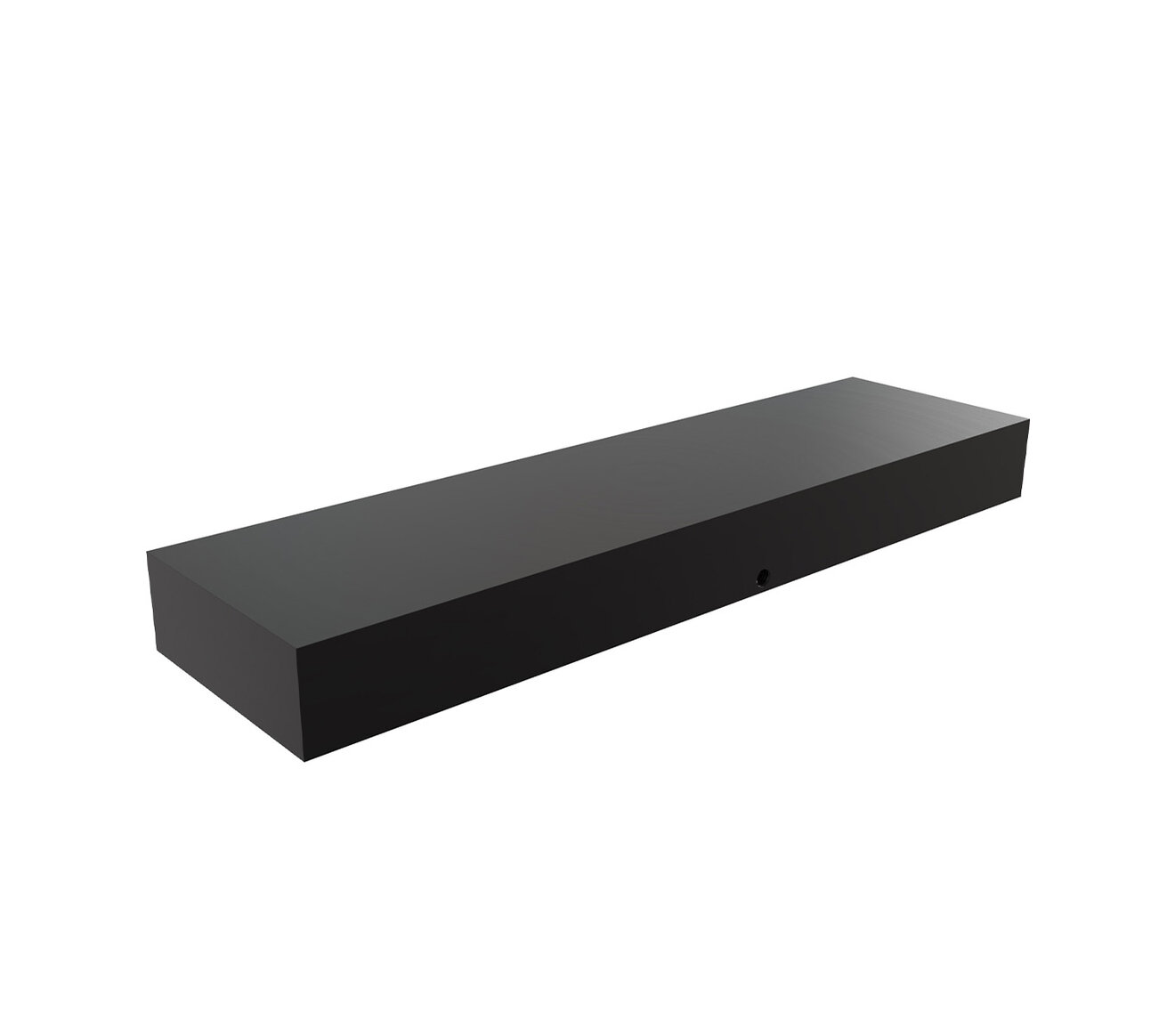

Jergens Quick Change Fixture Plates provide an alternative to holding parts in the jaws. These plates allow users to build dedicated fixtures on the plates and snap them onto a vise or column. Switch between jaws and fixture plates without removing the vise or column from the machine.
Features, Benefits, & Product Specifications:
-
Material: Aluminum
-
Finish: Black Anodize
Quick Change Fixture Plates Vise Accessories
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Compatibility | Description | A (In) | B (In) | C (In) | D (In) | E (In) |
|---|---|---|---|---|---|---|---|---|---|
| 49446 |
|
Inch | 4" (100mm) Production vises | Standard Fixture Plate | 4 | 14.90 | 1.475 | 0.25 | 0.50 |
| 49447 |
|
Inch | 6" (150mm) Production Vises | Standard Fixture Plate | 6 | 19.90 | 1.475 | 0.25 | 0.688 |
| 49448 |
|
Inch | 4" (100mm) Production vises | Wide Fixture Plate | 6 | 14.90 | 1.475 | 0.25 | 0.50 |
| 49449 |
|
Inch | 6" (150mm) Production Vises | Wide Fixture Plate | 8 | 19.90 | 1.475 | 0.25 | 0.688 |
