Quarter Turn Screws

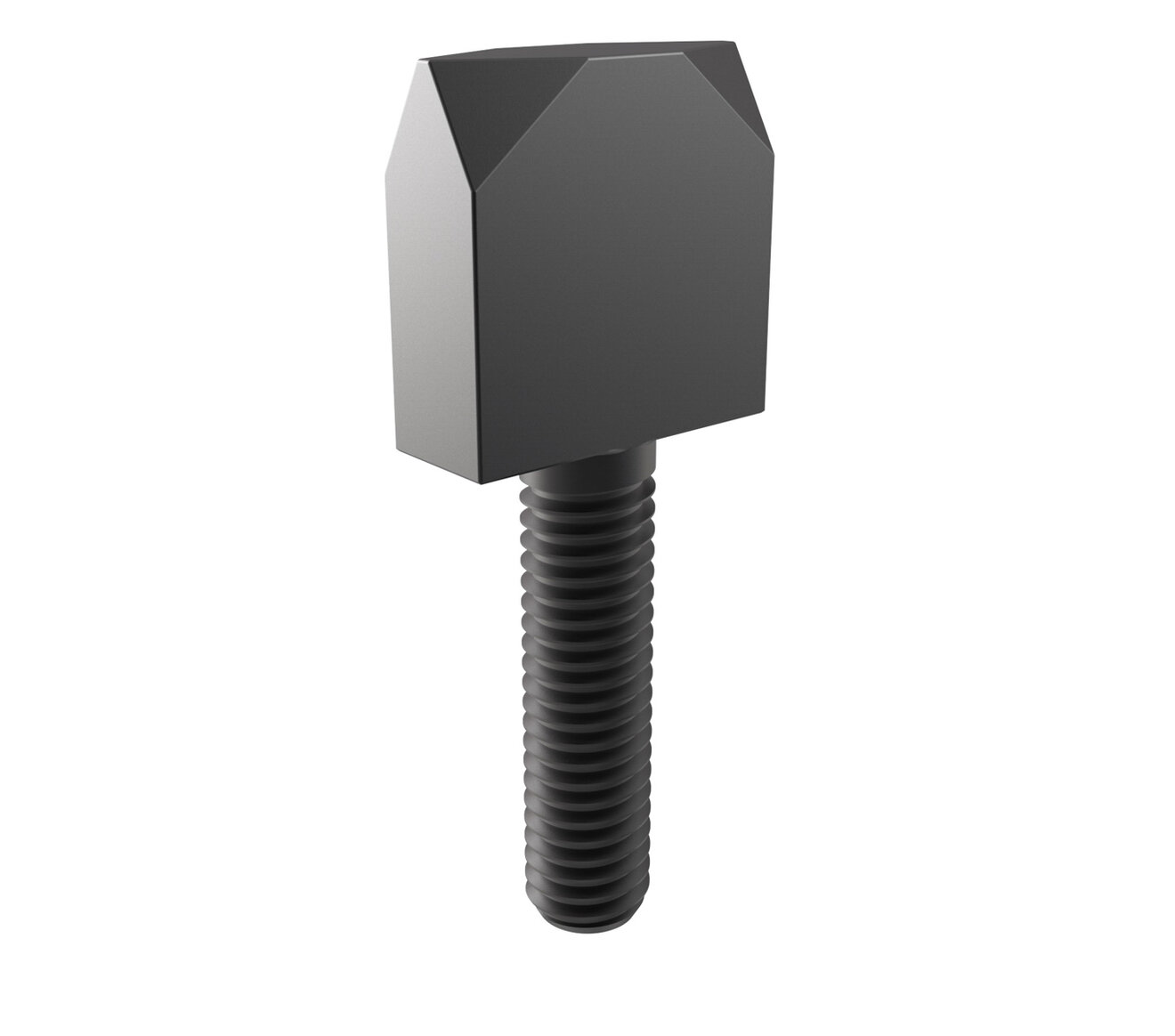

The diamond on all four corners of the Jergens Quarter Turn Screws makes the opening and closing of jig lids easier. They are ideally suited for clamping lids, covers, and swing-away-type bushing arms. Our Quarter Turn Screws may be machined for finishing requirements.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Thread: 2A-UNC for Inch, 2A-UNF for 10-32
Quarter Turn Screws

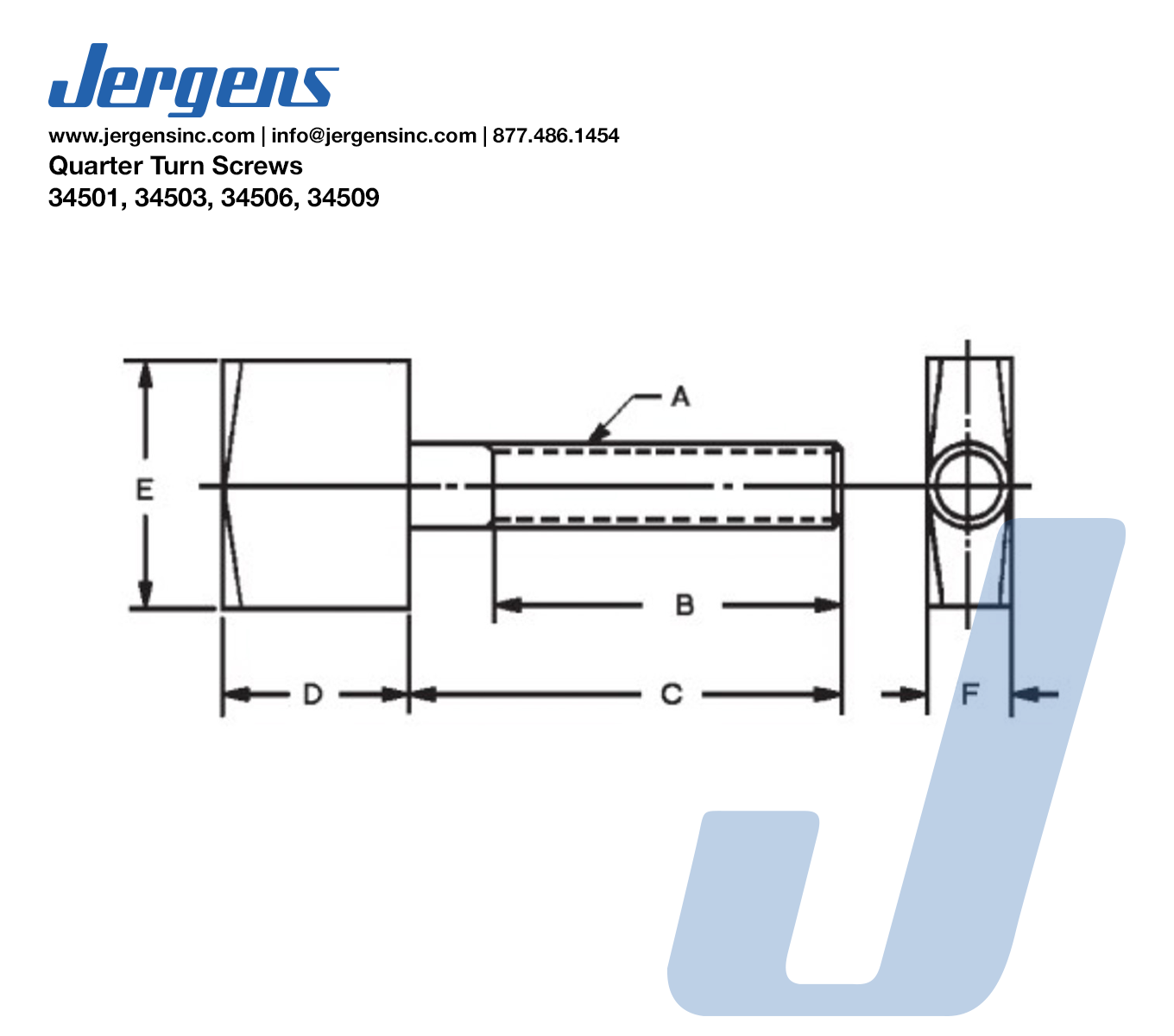

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A | B (In) | C (In) | D (In) | E (In) | F (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 34501 |
|
Inch | 10-32 | 7/8 | 1 | 1/2 | 1/2 | 3/16 | 0.31 |
| 34503 |
|
Inch | 1/4-20 | 1 1/2 | 1 3/4 | 5/8 | 3/4 | 1/4 | 0.48 |
| 34506 |
|
Inch | 3/8-16 | 1 1/4 | 1 1/2 | 1 | 1 | 3/8 | 1.25 |
| 34509 |
|
Inch | 1/2-13 | 2 | 2 1/4 | 1 | 1 1/4 | 1/2 | 2.65 |
