QLS Tooling Columns
Jergens QLS Tooling Columns provide a base mounting platform for utilizing Fixture-Pro® or OK-Vise® RM Rails on HMC's.
Features, Benefits, & Product Specifications:
-
Material: 6061-T6512 Aluminum
-
Finish: Black Hardcoat Anodize on Upright Faces
-
Lightweight (2) piece construction
-
Includes pre-installed QLS Bushings
-
Custom baseplates are available upon request
QLS Tooling Columns
Select a part number for CAD drawings, price and stock availability.

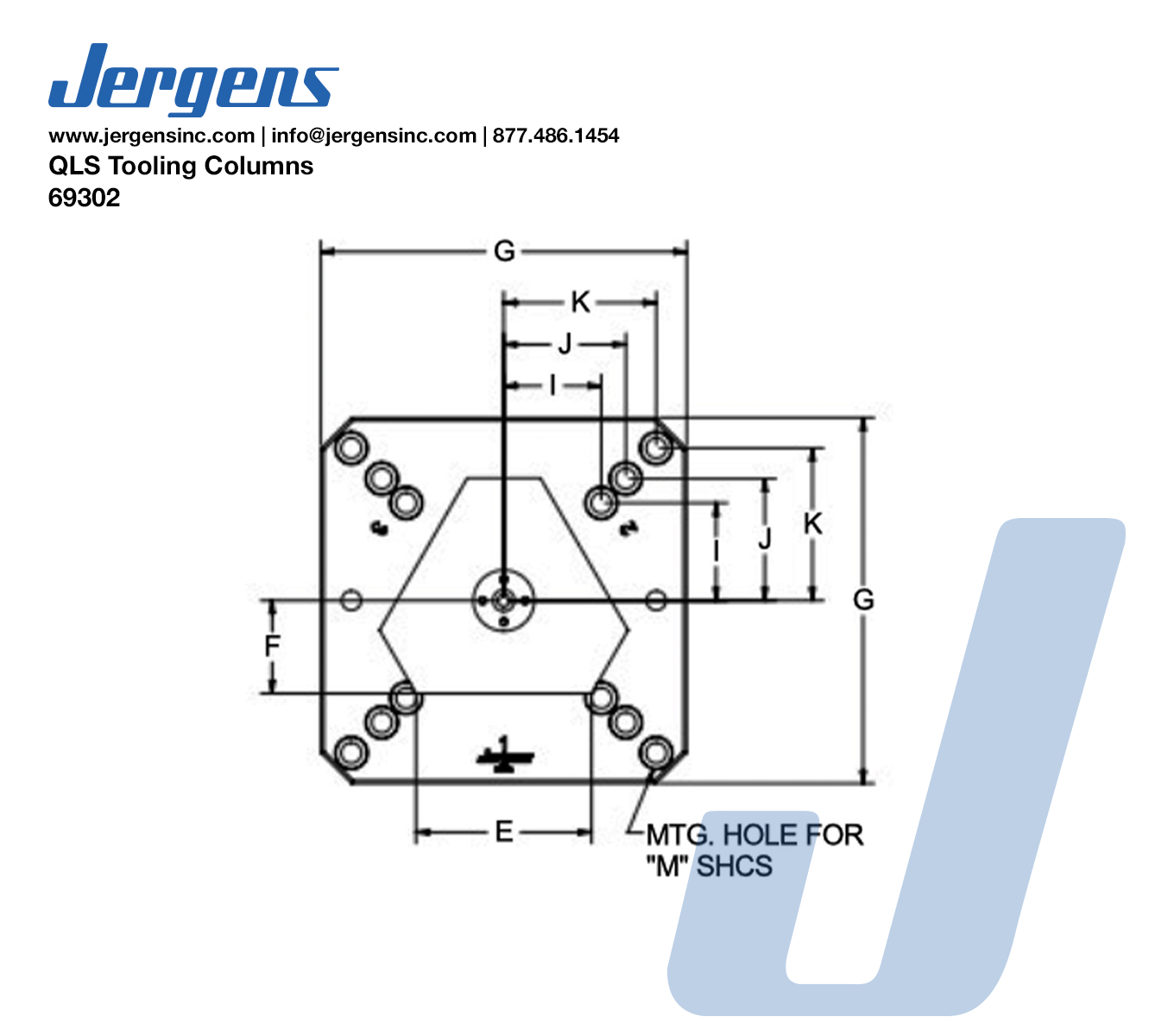

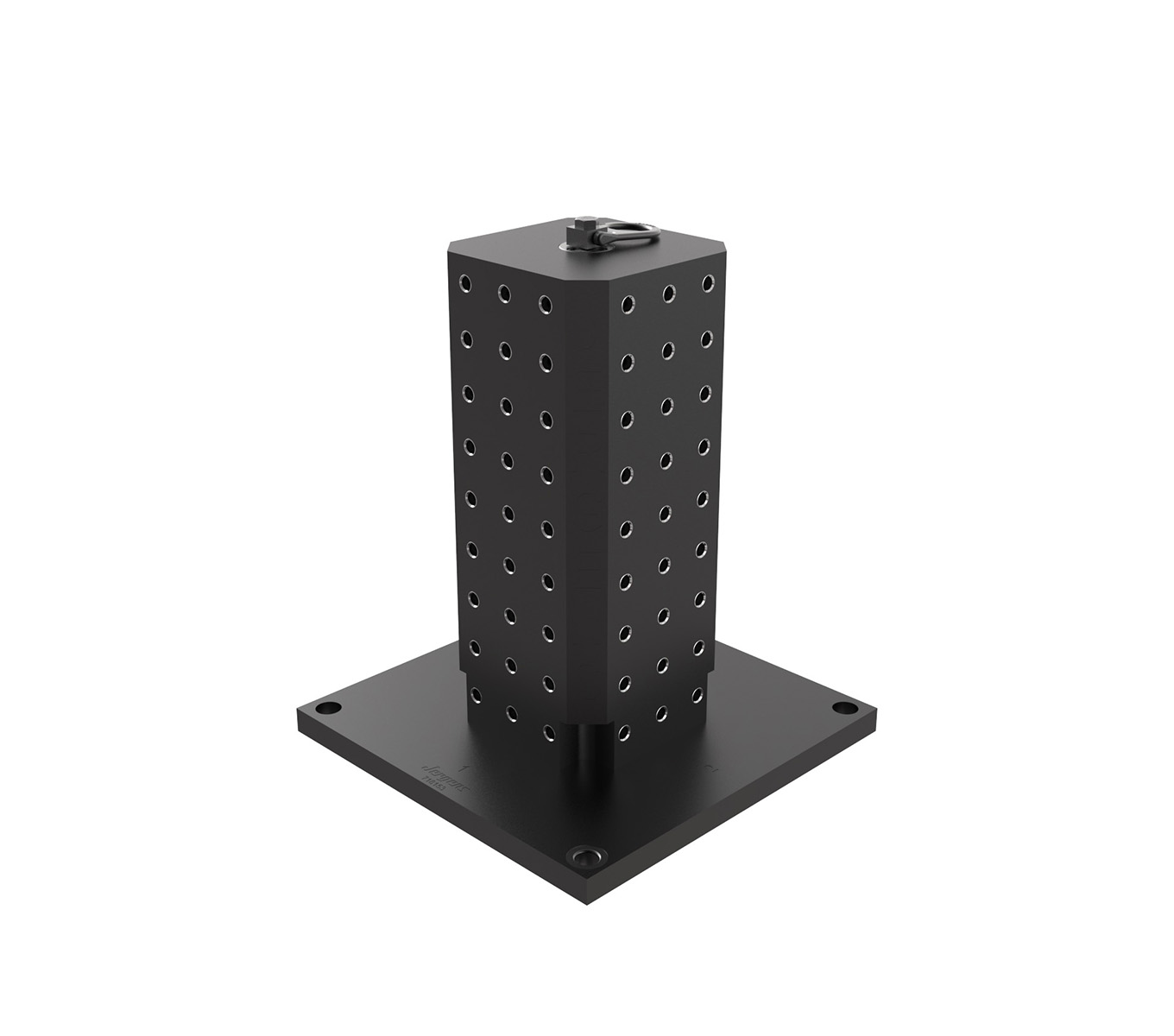

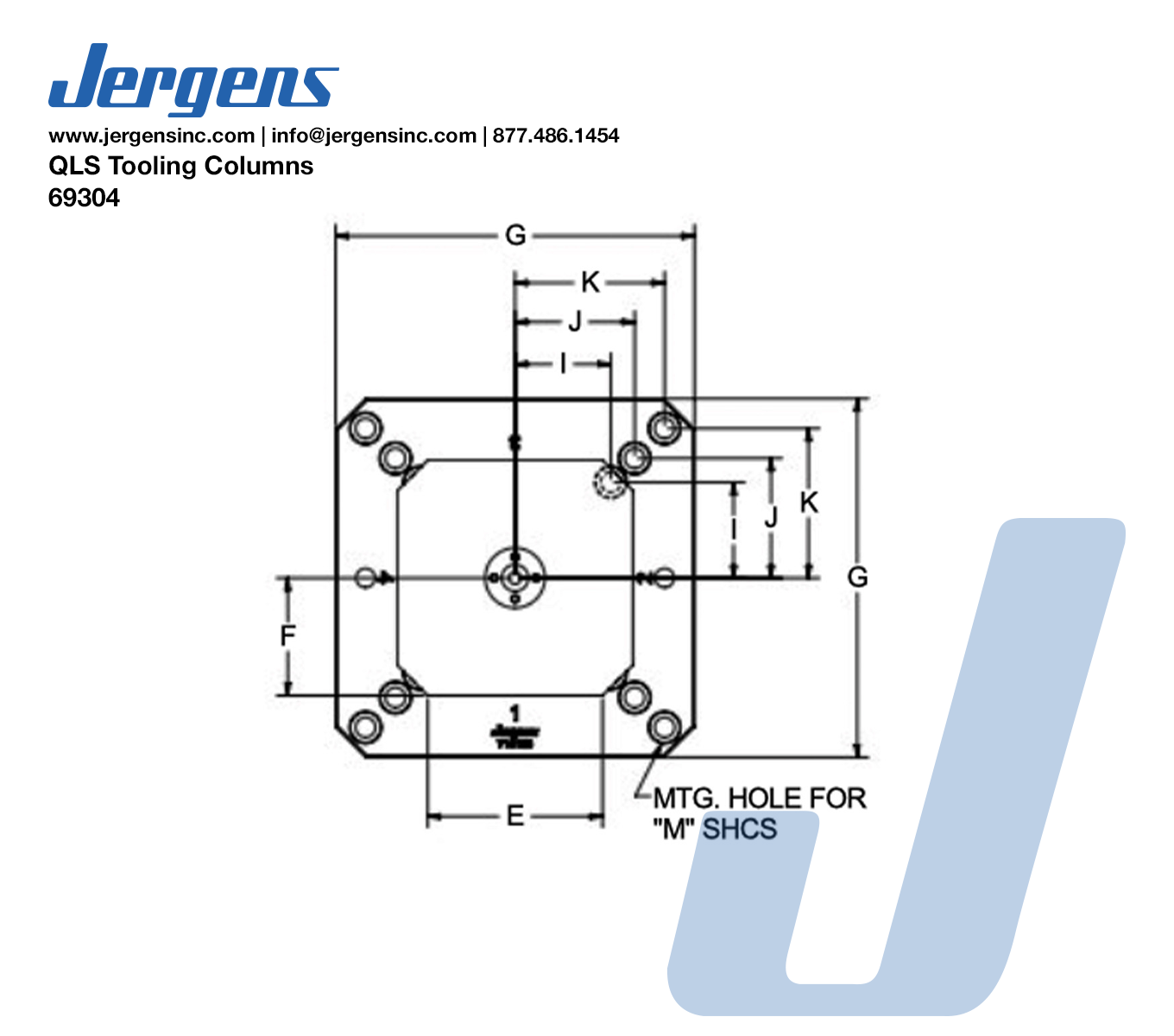

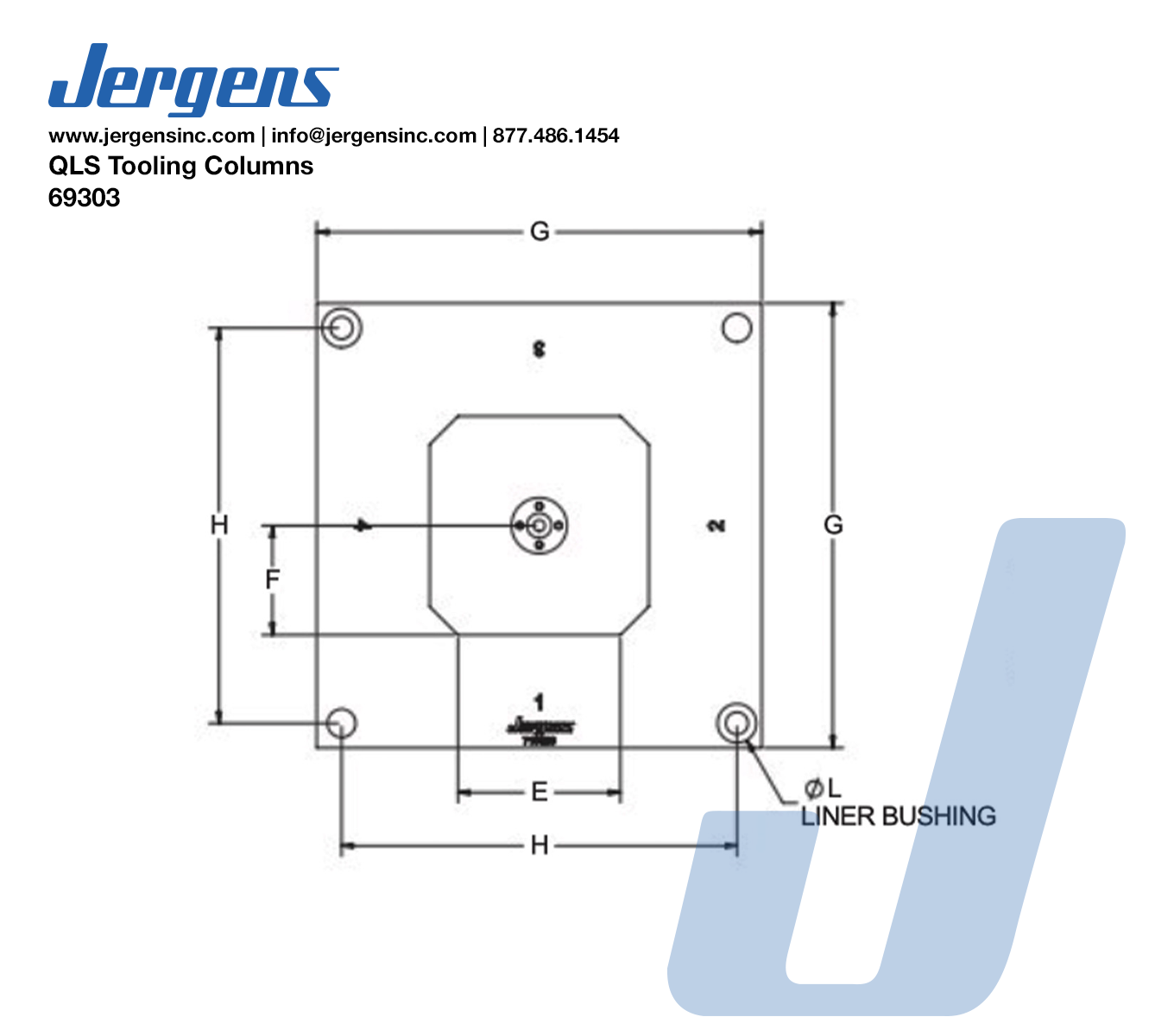

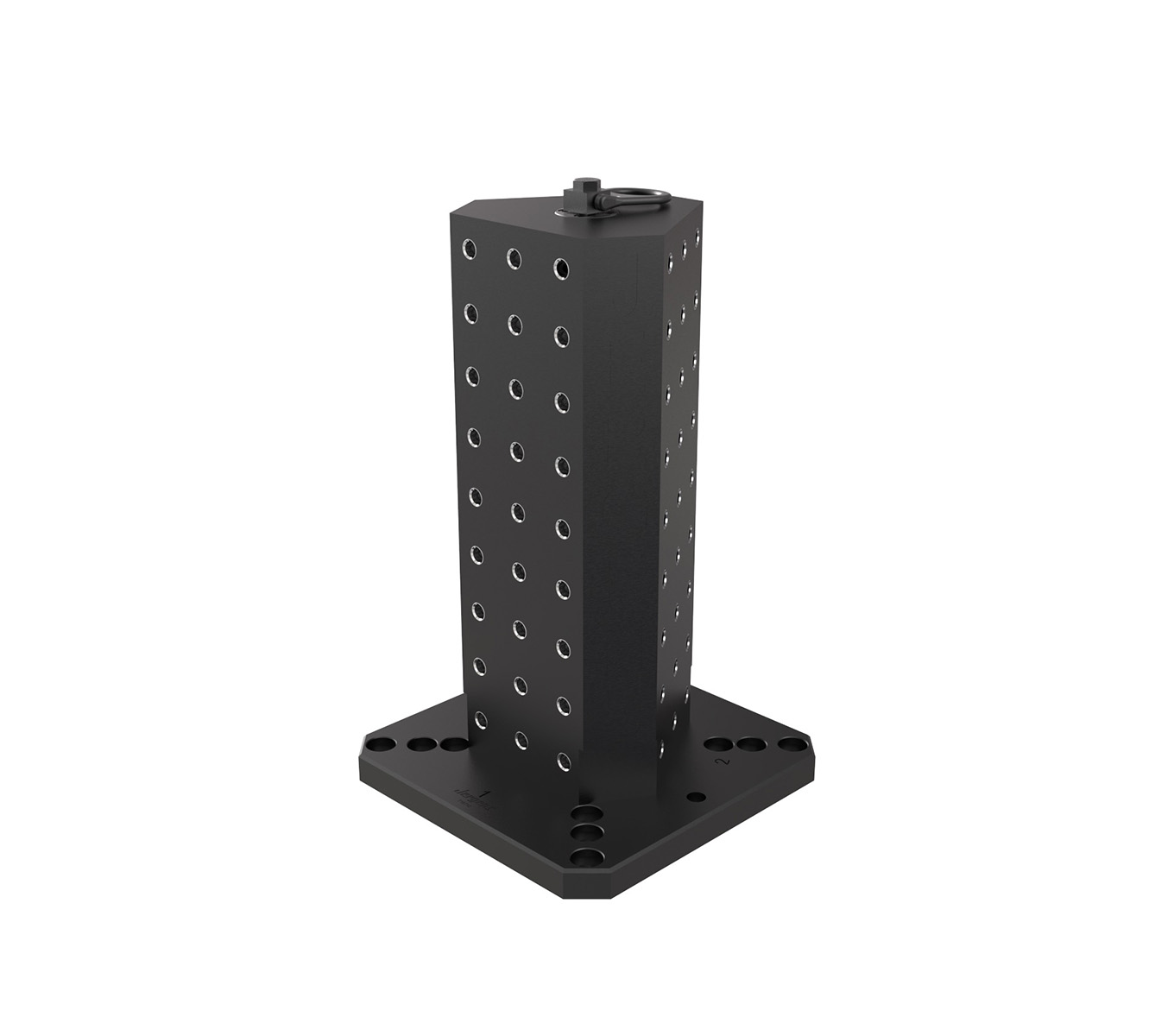

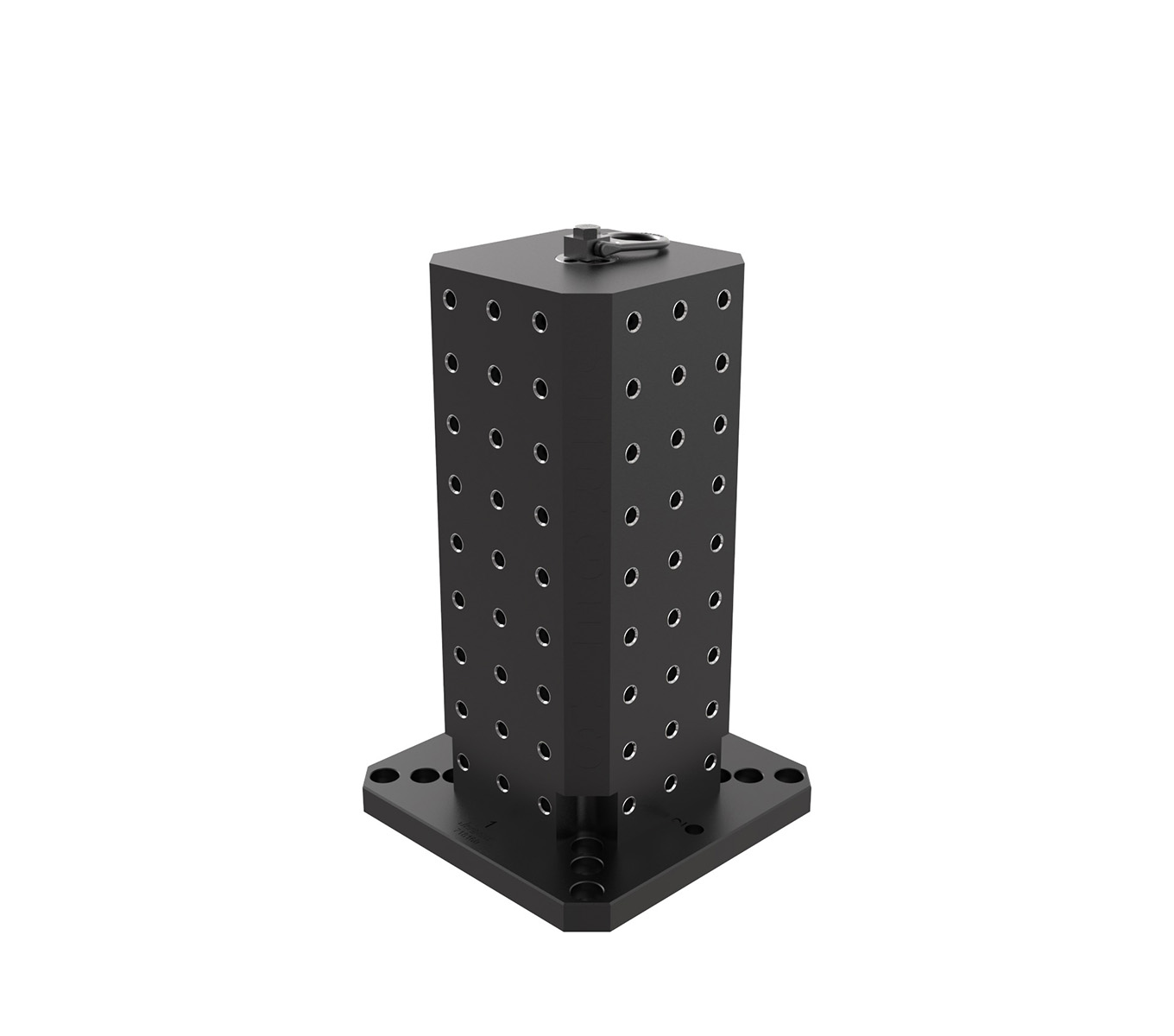

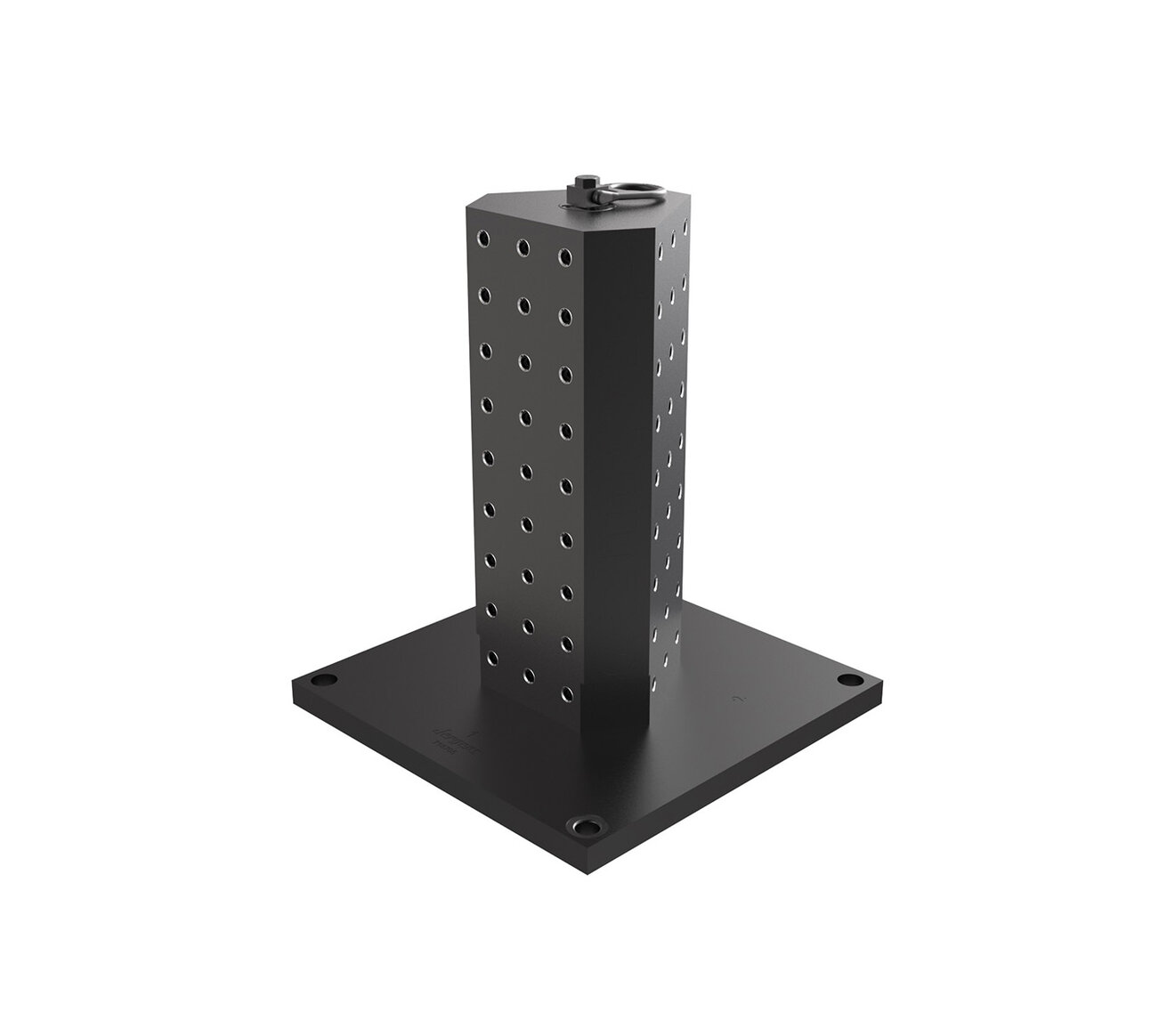

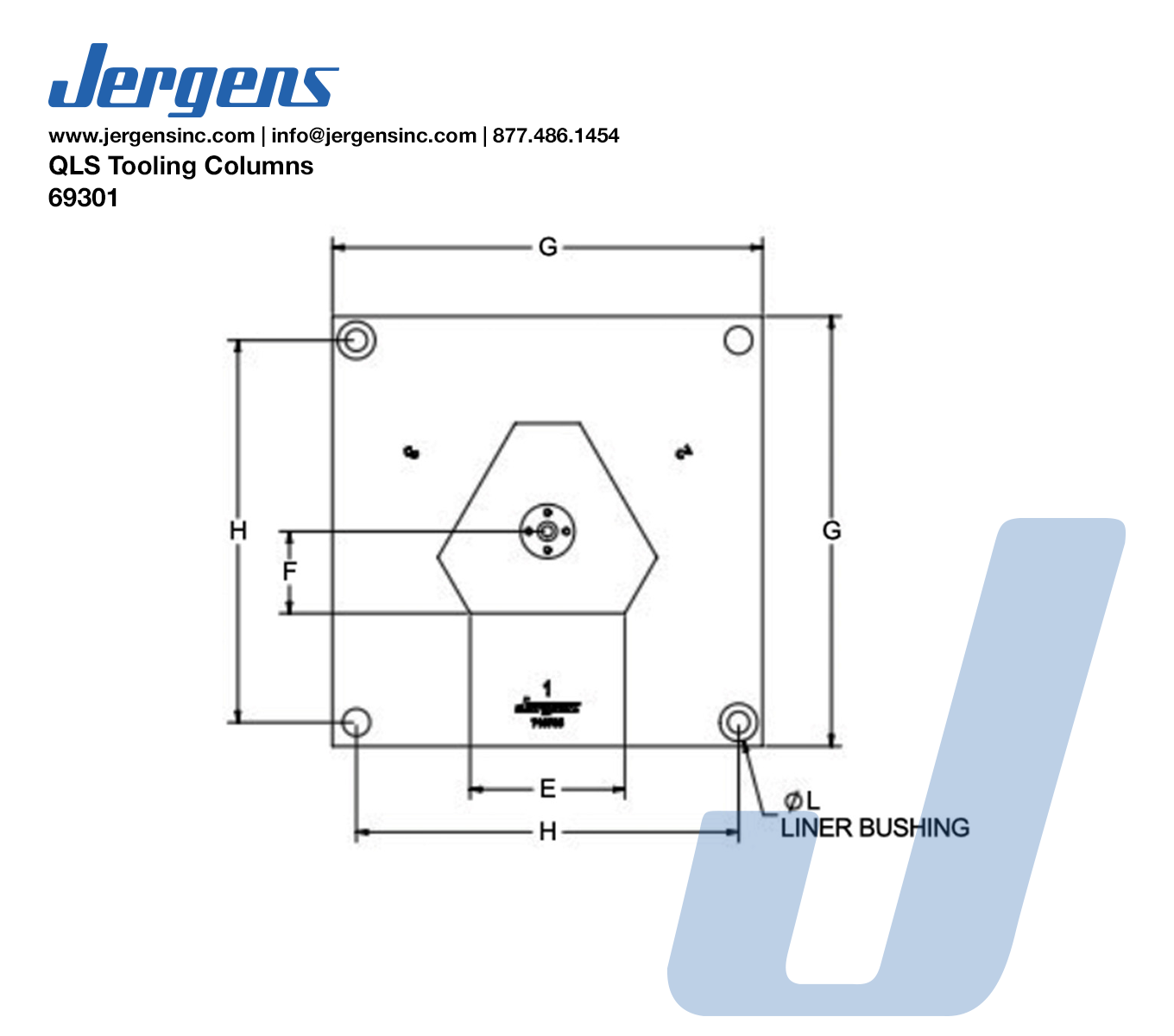

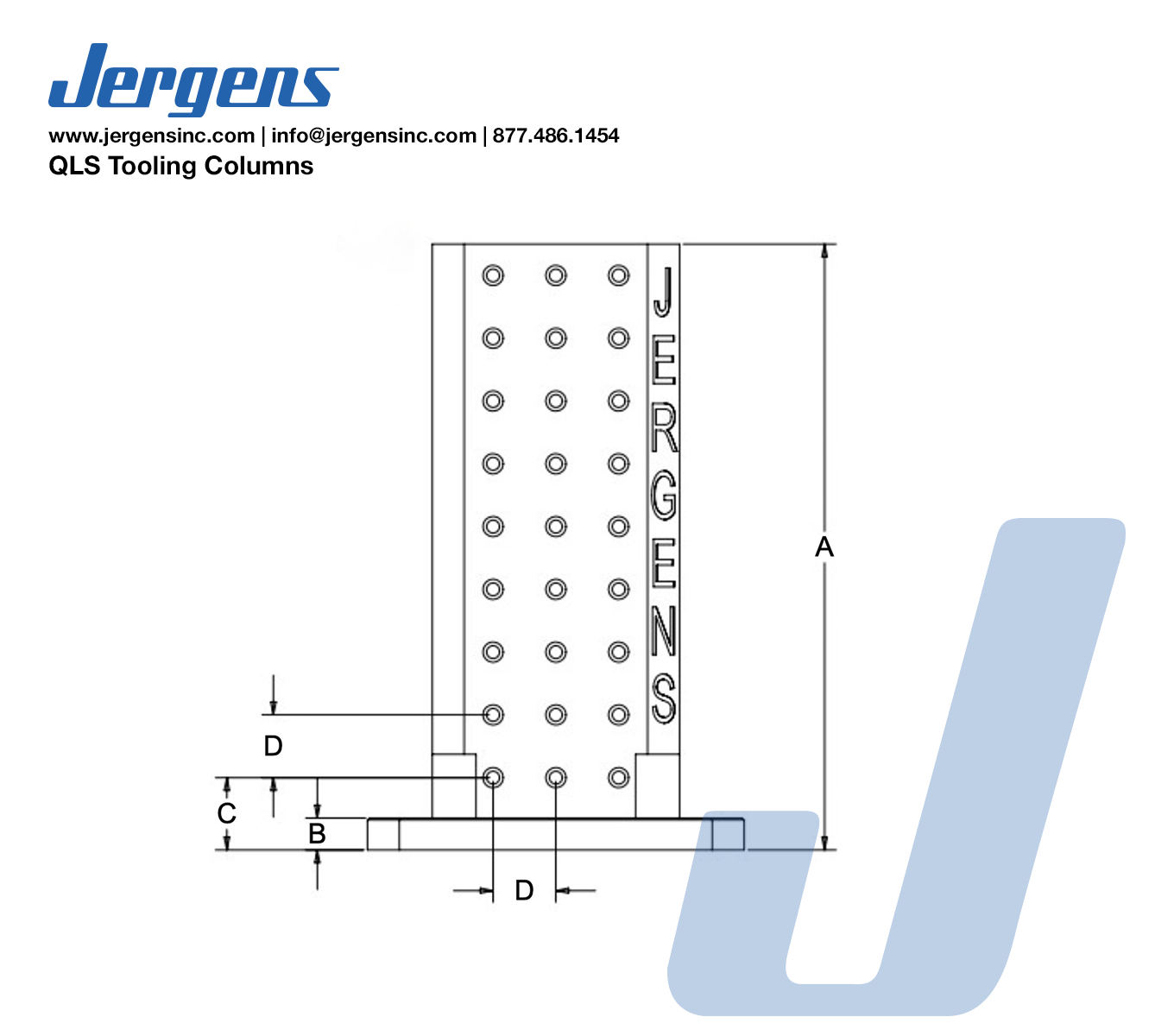

| Part Number | CAD | Unit | Number of Sides | A (In) | B (In) | C (In) | D (mm) | E (In) | F (In) | G (mm) | H (In) | I (mm) | J (mm) | K (mm) | L (mm) | M | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69301 |
|
Inch | 3 | 19 | 1 | 2.27 | 50 | 5.66 | 3 | 400 | 14 | - | - | - | 20 | - | 85 |
| 69302 | Inch | 3 | 19 | 1 | 2.27 | 50 | 5.66 | 3 | 300 | - | 80 | 100 | 125 | - | 5/8" or M16 | 80 | |
| 69303 | Inch | 4 | 19 | 1 | 2.27 | 50 | 5.75 | 3.875 | 400 | 14 | - | - | - | 20 | - | 125 | |
| 69304 | Inch | 4 | 19 | 1 | 2.27 | 50 | 5.75 | 3.875 | 300 | - | 80 | 100 | 125 | - | 5/8" or M16 | 113 |
