QLS Mount
Jergens Modular Dovetail Vises with QLS Mount feature a modular design that can be configured to mount with our QLS quick-change platforms.
Features, Benefits, & Product Specifications:
-
Secured clamping using minimal material
-
Hardened steel dovetail jaws
-
10° dovetail angle
-
Dovetail Cutter (Part No. 5DC3) available
-
Stop pin to prevent lateral movement of the workpiece included
-
12mm QLS Bushings included
- Aluminum QLS Vise Adapter Plate (Part No. 5VA13075)
QLS Mount

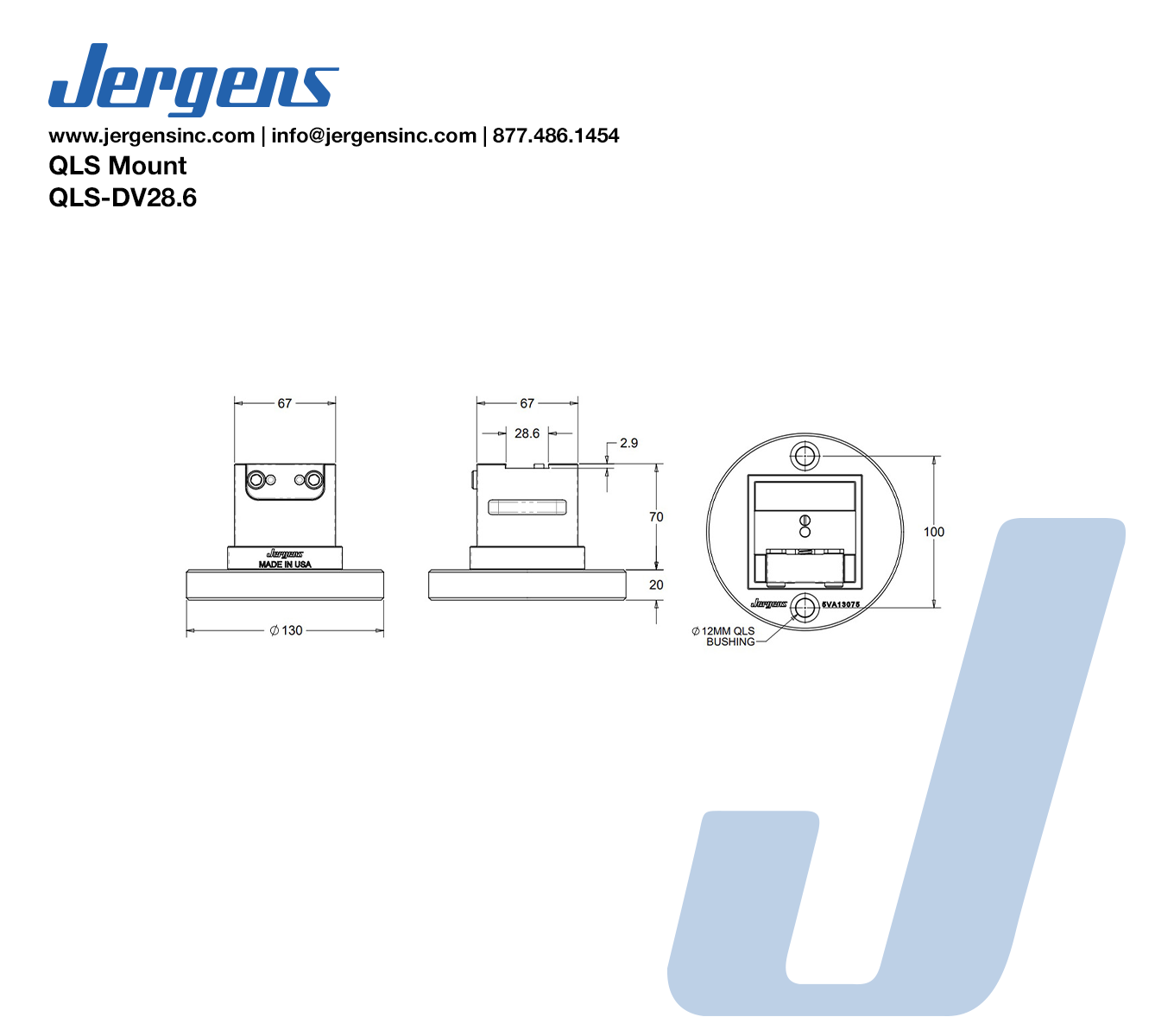

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Weight (lbs) |
|---|---|---|---|
| QLS-DV28.6 |
|
Inch | 6.90 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
